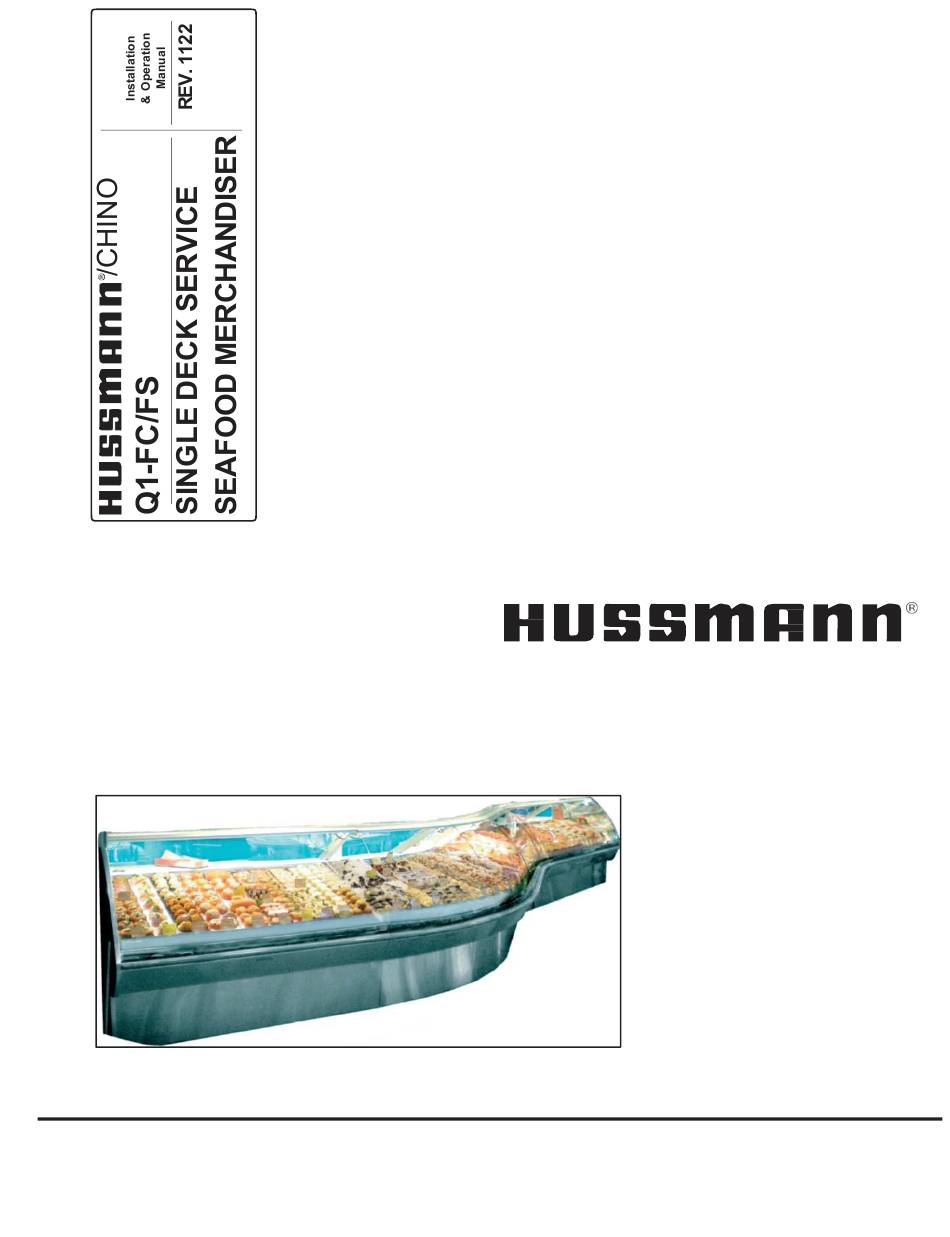

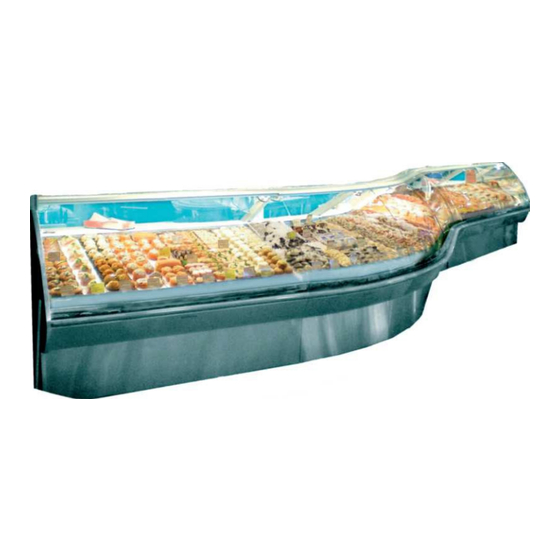

- Page 1 Q 1 - F C / F S Single D e c k Service S e a f o o d M e r c h a n d i s e r I N S T A L L A T I O N & O P E R A T I O N G U I D E...
-
Page 2: Table Of Contents 1. General Instructions
Check your shipment for any possible shortages of material. If a shortage should exist and is found to be the responsibility of Hussmann Chino, notify Hussmann Chino. If such a shortage involves the carrier, notify the carrier immediately, and request an inspection. -
Page 3: Table Of Contents
2. Table of Contents 1. General Instructions...............2 2. Table of Contents ..............3 3. Cut and Plan Views ..............4 4. Installation................5 5. Plumbing ................13 6. Refrigeration .................13 7. Electrical................16 8. Finishing Touches ..............17 9. User Information..............17 10. Maintenance................19 11. Electrical Wiring Diagrams ..........20 12. -
Page 4: Cut And Plan Views
REF. DROP REF. DROP 1 1/8" 1 1/8" 48" (VARIABLE LENGTHS) 1 1/8" 1 1/8" 48" (VARIABLE LENGTHS) 50 1/4" (VARIABLE LENGTHS) Panels Panels 50 1/4" (VARIABLE LENGTHS) Panels Panels Q1-FS Plan View Q1-FC Plan View Straight Section Straight Section... -
Page 5: Installation
field. When joining, use a carpenters level and adjust legs use only in air conditioned stores where temperature and accordingly. The legs on the Q1-FC/FS are adjustable and humidity are maintained at or below 75°F and 55% relative do not require shims. Simply screw the leg up or down to humidity. - Page 6 Code ha ving jurisdiction. INSTALLER Q1-FC/FS Refrigerated Wedges and Standard Cases Line-up taper pins and line-up plates with holes on adjoining 6. Slide second case up to first case snugly. Then level case. Bolting is located at the rear of the case, behind the second case to the first case so glass front, bumper...
- Page 7 Proper adjustment of the side-to-side position on the glass clamp on Vieler Streamline hardware such as used on Hussmann Q series service cases is critical to proper operation of the glass hardware. Failure to properly adjust the glass clamp can result in failure of the hardware and possible injury to personnel.
- Page 8 Installation (Cont'd) IMPORTANT: Attempting to compensate for poor installation practices by manipulating the canopy hardware will result in unsatisfactory workmanship and possibly cause hardware failure and/or injury. Step 3: Adjust Glass Height Glass Height: When turned clockwise the front glass will go up. When turned counter- clockwise the front glass will go down.
- Page 9 Installation (Cont'd) Step 4: Glass Side to Side Adjustment The glass gaps can be slightly optimized by moving the glass and glass clamp assembly side to side. This should be done as the final adjustment only after the glass/canopy height of the cases are set and leveled to each other. The canopy hardware on adjoining Q Series cases should be screwed together with the ¼”-20 THD screws included with the cases.
- Page 10 Installation (Cont'd) Torque Specs: IMPORTANT: Attempting to change the glass position by loosening only one side or by forcing the clamp sideways will result in damaging the hardware and its eventual failure. Loosening the hinge arms requires loosening the attachment screws and setscrews on both hinge arms on the section of glass. IMPORTANT: It is critical to use the proper size Torx or Hex wrench for the fasteners to avoid stripping the fasteners.
- Page 11 Installation (Cont'd) Loosen the fasteners only as needed to allow the glass clamp to slip to the desired position. Reposition the glass and glass clamp assembly as needed and verify its position by carefully closing the glass to check clearances. Once the glass is in the desired position, retighten the fasteners at the hinge arms with the proper wrench.
- Page 12 Installation (Cont'd) Bumper Installation Instructions Step 1: Make sure the aluminum channel Step 2: Use silicone lubricant to help the and end caps are installed. bumper slide into the channel. Step 3: Starting on one end: while inserting Step 4: As you insert the bumper into the the bumper, push it up against the end cap channel with one hand, pull the bumper to prevent the bumper from shrinking after...
-
Page 13: Plumbing
4. Avoid long runs of condensate drains. Long runs NOTE: PVC-DWV solvent cement is recommended. Follow the make it impossible to provide the “fall” necessary for Hussmann’s instructions. good drainage. Installing Condensate Drain 5. Provide a suitable air break between the flood rim of the floor drain and outlet of condensate drain. - Page 14 1. Determine the suction pressure with an accurate controllers can be utilized. Please refer to EEV and pressure gauge at the evaporator outlet. controller Hussmann’s information sheet. Sensors for 2. From a refrigerant pressure temperature chart, electronic expansion valves will be installed on the coil inlet, determine the saturation temperature at the coil outlet, and in the discharge air.
- Page 15 Refrigeration (Cont'd)
-
Page 16: Electrical
7. Electrical Wiring Color Code Field Wiring and Serial Plate Amperage Field Wiring must be sized for component amperes printed on the serial plate. Actual ampere draw may be less than specified. Field wiring from the refrigeration control panel to the merchandisers is required for refrigeration thermostats. -
Page 17: Finishing Touches
Hussmann cases were not designed to “heat up” 10. Turn and rotate the meat fairly often. The blood or “cool down” product - but rather to maintain an item’s which gives the pink color works its way downward proper temperature for maximum shelf life. - Page 18 Be sure to rinse and/or dry completely. Hussmann recommends using a clean damp chamois, or a Never use hot water on cold glass surfaces! It may paper towel marked as “dust and abrasive free” with 210 ®...
-
Page 19: Maintenance
TOWARD THE MOTOR. Coils The copper coils used in Hussmann merchandisers may be repaired in the field. Materials are available from local refrigeration wholesalers. Hussmann recommends using #15 Sil-Fos for repairs. -
Page 20: Electrical Wiring Diagrams
7. Never Use Hydrochloric Acid (Muriatic Acid) on them. When the grain cannot be seen, play it safe Stainless Steel and use a soft cloth or plastic scouring pad. 8. Regularly Restore/Passivate Stainless Steel 11. Electrical Wiring Diagrams Q1-FC/FS-4R 3014313 Q1-FC/FS-5R 3014312 Q1-FC/FS-6R 3014186... -
Page 21: Wiring Diagrams
12. Wiring Diagrams... - Page 22 Wiring Diagrams (Cont'd)
- Page 23 Wiring Diagrams (Cont'd)
- Page 24 Wiring Diagrams (Cont'd)
- Page 25 Wiring Diagrams (Cont'd)
- Page 26 Wiring Diagrams (Cont'd)
-
Page 27: Troubleshooting Guide
13. Troubleshooting Guide Problem Possible Cause Possible Solution Case temperature is Ambient conditions may Check case position in store. Is the case located near an too warm. be affecting the case open door, window, electric fan or air conditioning vent that operation. - Page 28 Case should be serviced by a qualified service technician. replaced. Lamp needs to be See Maintenance Section. replaced. Light Switch needs to Case should be serviced by a qualified service technician. replaced. For further technical information, please log on to http://www.hussmann.com/products/Q1-FC/FS.htm...
- Page 29 August 31, 2018 This warning does not mean that Hussmann products will cause cancer or reproductive harm, or is in violation of any product-safety standards or requirements. As clarified by the California State government, Proposition 65 can be considered more of a ‘right to know’...
- Page 30 Additional copies of this publication may be obtained by contacting: They can be found on a small metal plate on the unit. Hussmann® Chino Please note them below for future reference. 13770 Ramona Avenue • Chino, California 91710...
