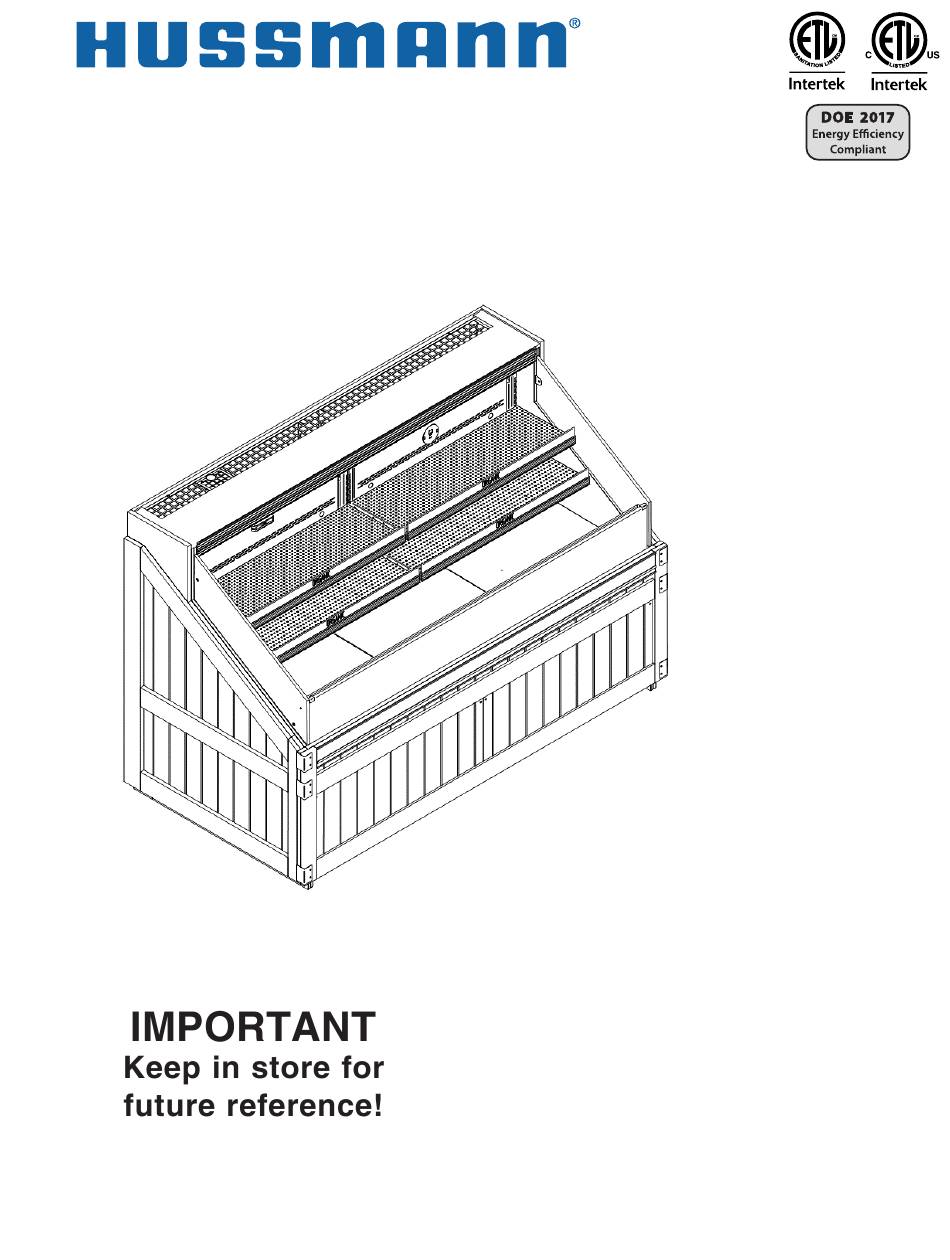

- Page 1 Æ Q3SSNM6S, Q3SSNM8S, Q3SSNM10S, Q3SSNM12S Medium Temperature Self Contained Installation & Operation Manual P/N 3086837_C October 2019 Spanish 3004064 MANUAL- -I/O Q3 SSNM SC French 3004095...
- Page 2 IMPORTANT KEEP IN STORE FOR FUTURE REFERENCE Quality that sets industry standards! 12999 St. Charles Rock Road • Bridgeton, MO 63044-2483 U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 www.hussmann.com © 2019 Hussmann Corporation...
-
Page 3: Table Of Contents
Stocking ......3-7 Hussmann Product Control ... 1-1 Thermometer . -
Page 4: Ansi Z535.5 Definitions
• NOTICE – Not related to personal injury – Indicates[s] situations, which if not avoided, could result in damage to equipment. P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com... -
Page 5: Installation
Do NOT allow air temperature is between conditioning, electric fans, open doors or 65°F (18°C) to 75°F (23.9°C). windows, etc. to create air currents around the Maximum relative humidity is 55%. merchandiser. Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. -
Page 6: Self Contained (Location)
It is your responsibility to provide accurate Proposition 65 warning labels to your customers when necessary. For more information on Proposition 65, please visit the California State government website. P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com... -
Page 7: Unloading
Do NOT stand or walk on top of the floor. merchandiser. Do not store items or flammable materials atop the unit. Do NOT remove shipping crate until the merchandiser is positioned for installation. Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. -
Page 8: Merchandiser Leveling
Ensure lower front panel is flat against the floor when installed to prevent air circulation SERIAL PLATE LOCATION problems. The serial plate is located on the inside of the merchandiser’s display area as shown below. P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com... -
Page 9: Self-Contained Refrigeration Equipment Start Up Check List
LEGAL DISCLAIMER: Hussmann shall not be liable for any repair or replacements made without the written consent of Hussmann, or when the product is installed or operated in a manner contrary to the printed instructions covering installation and service which accompanied such product. - Page 10 NOTES: P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com...
-
Page 11: Electrical / Refrigeration
• Plug into an outlet designed for the plug. • Do not overload the circuit • Do not use long or thin extension cords. Never use adapters. • If in doubt, call an electrician. Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. - Page 12 Do not remove the power supply cord ground. Risk of Electric Shock. If cord or plug becomes damaged, replace only with a cord and plug of the same type. P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com...
- Page 13 Manual start or stop of a defrost • Push the lower button for four seconds. Reprinted with permission from the controller manufacturer. (Though not for application 4). Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
-
Page 14: Start Up / Operation
S4 is used. shown. DO1: Refrigeration. The relay will cut in when the controller demands refrigeration DO2: Defrost. The relay will cut in when defrost is in progress P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com... -
Page 15: Data Communication
- Keep a distance between cables of at least 10 - Long cables at the DI input should be avoided Product will be degraded and may spoil if allowed to sit in a non-refrigerated area. Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. - Page 16 P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com...
-
Page 17: Control & Sensor Configuration
3.5m Temperature Sensor (Black Lead) Defrost Defrost Defrost Termination Termination Sensor Termination Sensor Sensor (Yellow Lead) (Yellow Lead) 1.5m TOLERANCES ARE: THIRD DECIMALS .XX .03, .XXX .010 ANGLE ANGLES PROJECTIO Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. -
Page 18: Start Up
10°F of its expected operating temperature. Adjust the valve as follows: P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com... -
Page 19: Load Limits
Do not use non-approved shelving, baskets, display racks, or any accessory that could hamper air curtain performance. Do not allow product to be placed outside of the designated load limits in the illustration. Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. - Page 20 NOTES: P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com...
-
Page 21: Maintenance
•Do not use high pressure water hoses. Do NOT allow cleaning agent or cloth to contact food product. Product will be degraded and may spoil if allowed to sit in a non-refrigerated area. Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. -
Page 22: Removing Scratches From Bumper
This includes, but is not limited to, such items as doors, lights, fans, heaters, and thermostats. P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com... -
Page 23: Cleaning Stainless Steel Surfaces
Do not use cleaners containing salts as this may cause pitting and rusting of the stainless steel finish. Do not use bleach. Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. -
Page 24: Cleaning Evaporation Pan
Evaporation Pan is Hot! – and poses risk of bodily injury Always Wear gloves and protective eye wear when servicing. Turn off evaporation pan heater, and allow pan to cool. P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com... -
Page 25: Self-Contained Refrigeration Equipment Maintenance Check List
Verify unit doors and lids work and are sealed correctly. Verify that all the panels, shields and covers are in place. Technician Notes: Form HSCW03 Rev-29 OCTOBER13 0525210_C Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. - Page 26 NOTES: P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com...
-
Page 27: Service
10. Verify that motor is working and blade is turning in the correct direction. Note: Plenum length and number of fans will vary with model. Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. -
Page 28: Replacement Parts List
1H28154500 Condensing unit (FJAF‐B100‐CFV‐022) 1H28147500 Condensing unit (M4FF‐0075‐CAV‐240) 1H28155500 Expansion Valve EGSE‐1‐C E205982 Expansion Valve EGSE‐1/2‐C E205984 Distributor Assy 0425784001 Distributor (Sporlan 1620) 1H18877500 Refrigeration Part Number Q3SSNM6 Q3SSNM8S Q3SSNM10S Q3SSNM12S Description Refrigerant R448A Condensing unit (M6GP‐H090‐CAV‐212) 3082678500 Condensing unit (M6KP‐0116‐CFV‐020) 3094075500 Condensing unit (M6KP‐0075‐CAV‐221) 3082670500 Expansion Valve EGSE‐1/3‐C 3031930 Expansion Valve EGSE‐1/2‐C 3031934 Distributor (Sporlan 1620) 1H18877500 P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com... - Page 29 Q3SSNM6 Q3SSNM8S Q3SSNM10S Q3SSNM12S Description Part Number Shelf 3ft x 12in 3084667 Shelf 3ft x 15in 3084672 Shelf 4ft x 12in 3084673 Shelf 4ft x 15in 3084674 Shelf 5ft x 12in 3084675 Shelf 5ft x 15in 3084676 Air Deck Pan (top) 3072678 Air Deck Pan (bottom) 3072692 Back Panel Q3 6FT 0552860 Back Panel Q3 6FT (Sensor) 0552863 Back Panel Q3 8FT 0557173 Back Panel Q3 8FT (Sensor) 0557081 Back Panel Q3 10FT 3079251 Back Panel Q3 10FT (Sensor) 3079252 Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
- Page 30 — t ErvIcE EchnIcal Q3SSNM8S Shown Dimensions shown as inches *Note: Recommended shelves position P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com...
-
Page 31: Refrigeration Data
P/N 3086837_C Refrigeration Data PHYSICAL DATA Q3SSNM6 Q3SSNM8S Q3SSNM10S Q3SSNM12S Refrigerant charge R404A 2.098 2.721 2.721 2.721 PHYSICAL DATA Q3SSNM6 Q3SSNM8S Q3SSNM10S Q3SSNM12S Refrigerant charge R448A 1.418 1.780 1.800 1.738 Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. - Page 32 4‐Mar 125 / 230 L14‐20P Q3SSNM8S 125 / 230 L14‐20P R404A / R448A 60/1 Q3SSNM10S 3/4 (X 2) 125 / 230 L14‐30P (X 2) Q3SSNM12S 3/4 (X 2) 125 / 230 L14‐30P (X 2) ESTIMATED SHIPPING WEIGHT Case Actual weights will vary according to optional kits included. P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com...
-
Page 33: Wiring Diagrams
DO2 DO3 DO4 BL BK SWITCH RELAY RELAY COMPRESSOR COMPRESSOR ANTI-SWEAT HEATER SAFETY SWITCH EVAPORATOR FLOAT SWITCH EVAPORATOR FANS CONDENSER COMPRESSOR NEMA L14-20 P 240V START UNIT CONDENSER 60HZ 3072632_A CAPACITOR Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. - Page 34 9 10 11 12 EVAPORATOR 3 4 5 PRESSURE CONTROL HARNESS FLOAT SWITCH EVAPORATOR FANS POTENTIAL CONDENSER RELAY SPLICE COMPRESSOR NEMA L14-20 P 240V 60HZ START UNIT CONDENSER 3078188_B CAPACITOR CAPACITOR P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com...
- Page 35 P/N 3086837_C Wiring Diagrams Q3 SSNM Merchandisers HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
- Page 36 — t 5-10 ErvIcE EchnIcal P/N 3086837_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com...
- Page 37 To obtain warranty information or other support, contact your Hussmann representative. Please include the model and serial number of the product. Hussmann Corporation, Corporate Headquarters: Bridgeton, Missouri, U.S.A. 63044-2483 01 October 2012...
