Pepperl+Fuchs UC6000-30GM70-2E2R2-V15 Quick Start Manual

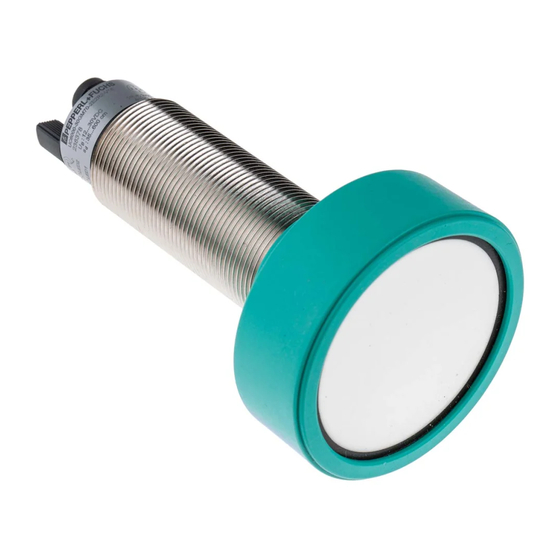

Ultrasonic sensor
Model Number
UC6000-30GM70-2E2R2-V15
Ultrasonic direct detection sensor
Features
• 2 switch outputs
• Synchronization options
• Temperature compensation
• Can be parameterized via the ULT-
RA-PROG-IR software and inter-
face (accessories)
Diagrams
Characteristic response curve
Distance Y [mm]
2000
1000
2
0
-1000
-2000
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
Y
X
Curve 1: flat surface 100 mm x 100 mm
Curve 2: round bar, Ø 25 mm
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com

Technical data

General specifications
Sensing range
Adjustment range
Dead band
Standard target plate
Transducer frequency
Response delay
Nominal ratings
Temperature drift
Time delay before availability t
Limit data
Permissible cable length
Indicators/operating means
LED yellow
LED green/yellow
Potentiometer
Electrical specifications
Rated operating voltage U
Operating voltage U
Ripple
No-load supply current I
Interface
Interface type
Mode
Input/Output
Input/output type
0 Level
1 Level
Input impedance
Number of sensors
Switching output
Output type
Default setting
Repeat accuracy R
Operating current I
Switching frequency
Switching hysteresis
Voltage drop
Off-state current
Ambient conditions
Ambient temperature
Storage temperature
Shock resistance
Vibration resistance
Mechanical specifications
Connection type
1
Degree of protection
Material
Housing
Transducer
Installation position
Mass
Construction type
Compliance with standards and
Distance X [mm]
directives
Standard conformity
Standards
Approvals and certificates
UL approval
CSA approval
CCC approval
Germany: +49 621 776 4411
fa-info@de.pepperl-fuchs.com
UC6000-30GM70-2E2R2-V15
350 ... 6000 mm
400 ... 6000 mm
0 ... 350 mm
100 mm x 100 mm
approx. 80 kHz
≤ 275 ms
≤ ± 1.5 % of full-scale value
≤ 300 ms
v
max. 300 m
solid Switching state switch output 1
yellow: switching state switch output 2
green: Teach-In
Switching output 1 and Switching output 2 adjustable
24 V DC
e
12 ... 30 V DC (including ripple)
B
≤ 10 %
≤ 50 mA
0
Infrared
point-to-point connection
1 synchronization connection, bidirectional ( Factory setting:
synchronized mode ) / Teach-In input
≤ 3 V
≥ 15 V
typ. 900 Ω
max. 10
2 switch outputs PNP, NO ( NC contact programmable )
400 ... 6000 mm ( adjustable via potentiometer )
± 9 mm
Per 150 mA , short-circuit/overload protected
L
≤ 1 Hz
60 mm ( programmable )
≤ 3 V
≤ 10 µA
-25 ... 70 °C (-13 ... 158 °F)
-40 ... 85 °C (-40 ... 185 °F)
30 g , 11 ms period
10 ... 55 Hz , Amplitude ± 1 mm
Connector M12 x 1 , 5-pin
IP65
brass, nickel-plated
epoxy resin/hollow glass sphere mixture; polyurethane foam
any position
280 g
Cylindrical
EN 60947-5-2:2007 + A1:2012
IEC 60947-5-2:2007 + A1:2012
cULus Listed, General Purpose
cCSAus Listed, General Purpose
CCC approval / marking not required for products rated
≤36 V
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
1
