Valcom V-1109RTVA User Manual

INTRODUCTION
The V-1109RTVA, Nine Zone Page Control, is a
dial select microprocessor controlled page unit to
be used with PABX, Electronic Key or 1A2
Telephone Equipment.
These instructions contain the specifications and
information necessary to install, operate and
maintain the Nine Zone Page Control.
This paging unit has received an FCC type KX
registration and is designed to be used with FCC
registered key telephone systems. Such
installations may be made by Valcom, Inc.,
Telephone Companies and registered telephone
installers of FCC registered systems under FCC
Rules Section 68.215.
In accordance with FCC rules with applicable
tariffs, this intercom unit may only be installed
with the authorization of the owner of the host
system.
The FCC Registration Number BAF9I7-69358-
KX-N, will be listed in the affidavits filed with the
telephone company; it will also be recorded in the
system log kept by installation and maintenance
personnel. The local Telephone Company is to
be notified of the FCC Registration Number when
this intercom unit is installed.
This equipment generates and uses radio
frequency energy and if not installed and used
properly, that is in strict accordance with the
manufacturer's instructions, may cause
interference to radio and television reception. It
has been tested and found to comply with the
limits for a Class B computing device, in
accordance with the specifications in Subpart J of
Part 15 of the FCC Rules, which are designed to
provide reasonable protection against
interference. If this equipment does cause

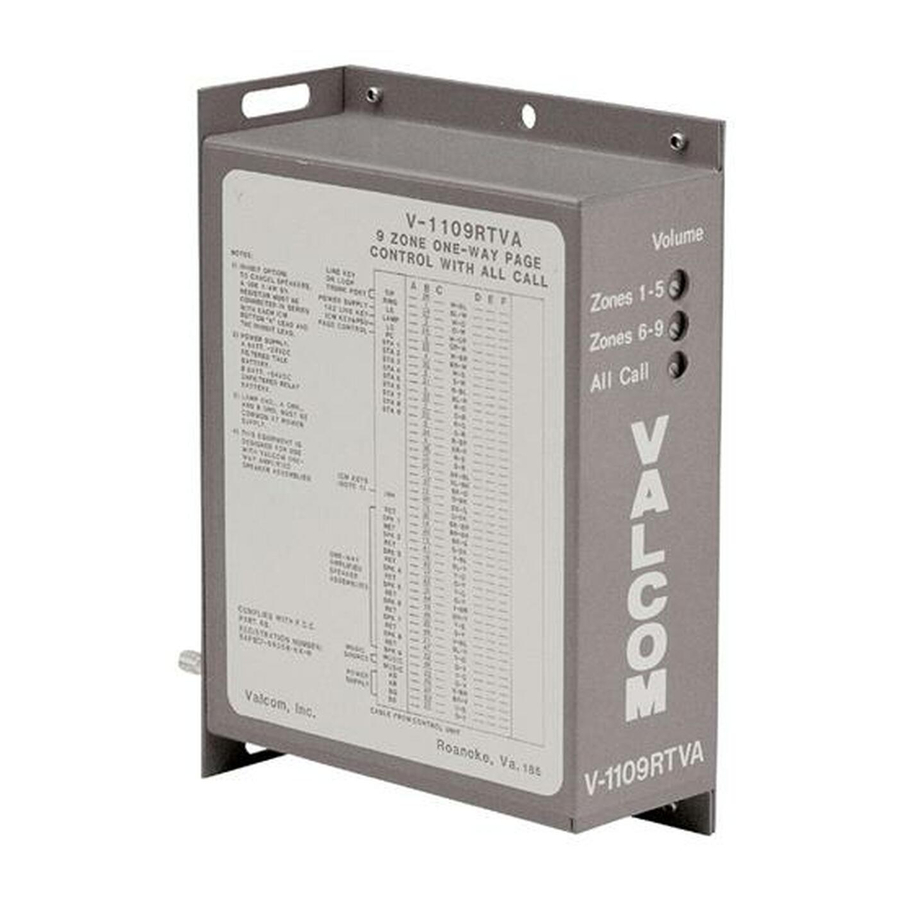

V-1109RTVA
NINE ZONE PAGE CONTROL
interference to radio and television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
•
Reorient the receiving antenna
•
Relocate the equipment with respect to the
receiver
•
Plug the equipment into a different branch
circuit
If necessary, the user should consult the dealer or
an experienced radio/television technician for
additional suggestions. The user may find the
following booklet prepared by the Federal
Communications Commission helpful: "How to
Identify and Resolve Radio-TV Interference
Problems."
This booklet is available from the US Government
printing office, Washington, DC 20402. Stock
No. 004-000-00345-4.

SPECIFICATIONS

Purpose
To provide nine (9) zones of voice announce with
all call to 1A2 Key, E-Key or PABX telephone
systems.
1
VSP-V-1109RTVA
Issue 11
947109
