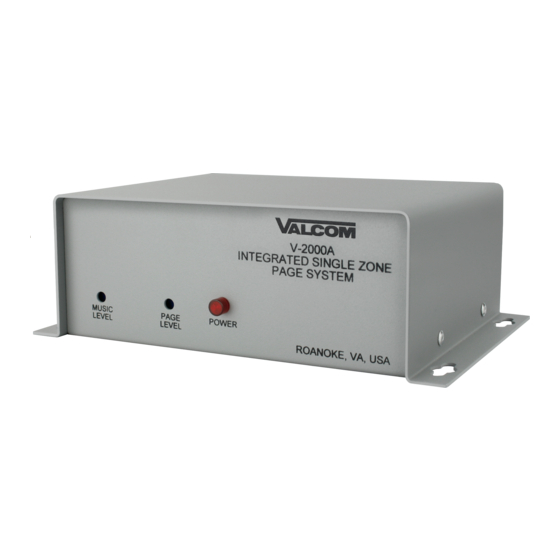

Valcom V-2000A User Manual

Integrated single zone page control unit
Hide thumbs Also See for V-2000A:
1
2
3
4
5
6

Advertisement

Table of Contents

INTEGRATED SINGLE ZONE PAGE CONTROL UNIT
INTRODUCTION
The V-2000A is an Integrated Single Zone Page
Control Unit for use with any electronic key or PABX.
The control unit provides external power (12 Valcom
power units) for powering Valcom One-way Amplified
Speakers.
These instructions contain the specifications and
information necessary to install, operate and maintain
the Integrated Single Zone Paging Control Unit.
"WARNING: To reduce the risk of fire or
electric shock, do not expose this appliance to
rain or moisture."
"WARNING: Shock Hazard - Do Not Open."
"AVIS: Risque de Choc Electrique ne pas
Ouvrir."
"PELIGRO: Corriente Elecrica - No Abra."

SPECIFICATIONS

Purpose
Provides telephone system access to a single
zone of one-way paging
Applications
Electronic Key Systems
PABXs
1A2 Key Systems (400 type line card required)
Stand Alone Systems
Refer to Figure 1 for a block diagram of a typical
installation.
V-2000A
Features
Electronic key system line key access
PABX loop start trunk port access
Page port access
Switchable battery feed for loop start operation
RJ11 for Tip and Ring connections
Power on LED
Drives up to 150 Valcom one-way amplified
speaker assemblies (Audio)
Background music input
Voice operated switch to mute mu sic during page
Screw terminals provided for all connections
UL Listed
Supplies 12 Valcom power units for powering
Valcom one-way amplified speakers
May be used with 25 or 70 Volt amplifiers
AC powered
AC input fused at 0.5 Amp
Capacity
The V-2000A is a one-zone single talkpath unit.
Each V-2000A will drive up to 150 Valcom
one-way amplified speaker assemblies (Audio)
and provides 12 Valcom power units for powering
the speaker amplifier assemblies. The V-2000A
can also be used to access 25 or 75 Volt
conventional amplifiers.
1
Issue 2
947199

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-2000A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Valcom V-2000A

Summary of Contents for Valcom V-2000A

  • Page 1: Specifications

    INTRODUCTION The V-2000A is an Integrated Single Zone Page Control Unit for use with any electronic key or PABX. The control unit provides external power (12 Valcom power units) for powering Valcom One-way Amplified Speakers. These instructions contain the specifications and information necessary to install, operate and maintain the Integrated Single Zone Paging Control Unit.

  • Page 2: System Design

    DC Output: SYSTEM DESIGN General The Valcom V-2000A Integrated Single Zone Page Control Unit provides access to paging from a standard PABX loop start trunk port, an Electronic Key System C. O. line button or a 1A2 Key System C.

  • Page 3: Installation

    Connect the GND terminal or lead of the one-way amplified speakers to the GND screw terminal of the V-2000A. NOTE: The Valcom V-2000A provides external power of 12 power units (600mA of -24VDC) to operate Valcom one-way amplified speakers. Additional power supplies are required for a quantity of speakers using power over the 12 power units.

  • Page 4: Operation

    VOM, several clip leads and a telephone test set available and be calling from the job site. Call (540) 563-2000 and ask for Technical Support, or call (540) 767-1555 for Valcom 24-hour Faxback System or visit our website at http://www.valcom.com.
  • Page 6 This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connecti on with the purchase, operation or use of the product.
