Classic Exhibits eco systems ECO-2056 Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
© 2022
REV 10/2022
Order #XXXXX

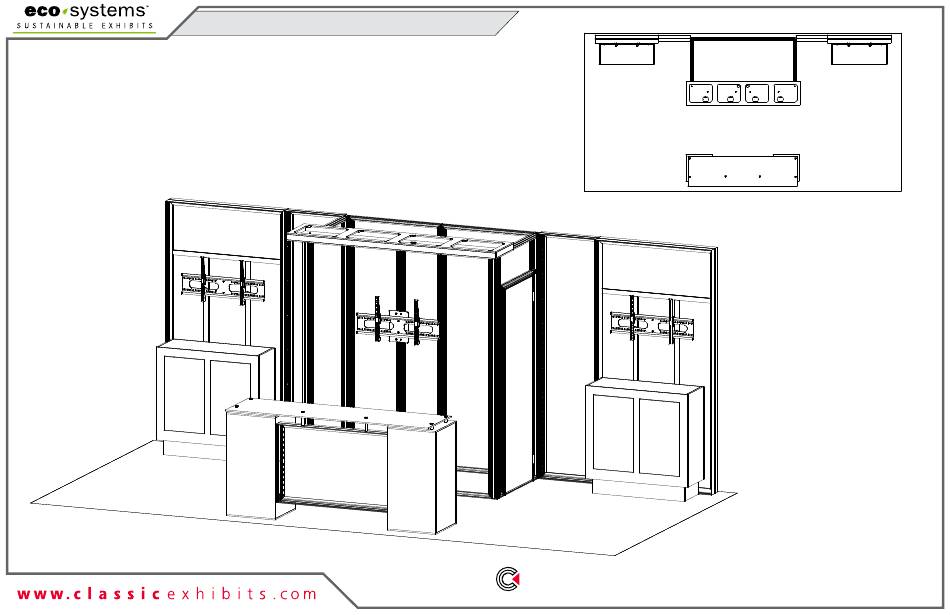

ECO-2056 - 10' x 20' Display
10'
20'
Plan View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the eco systems ECO-2056 and is the answer not in the manual?

Questions and answers

Related Manuals for Classic Exhibits eco systems ECO-2056

Summary of Contents for Classic Exhibits eco systems ECO-2056

  • Page 1 © 2022 REV 10/2022 Order #XXXXX ECO-2056 - 10’ x 20’ Display 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...

  • Page 2: Plan View

    © 2022 Order #XXXXX Plan View = 1 sq foot...

  • Page 3: General Setup Instructions

    © 2022 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.

  • Page 4: Side-By-Side

    © 2022 Order #XXXXX Gravitee Assembly Assembly Assembly Cont’d Push pin lock into hole of connecting frame. Note: Block of pin lock will secure in groove. Side-by-Side Assembly Corner Connector 1) Frames: Place frames side-by-side with one higher than the other, then slide panel down to lock panels securely together.
  • Page 5 © 2022 Order #XXXXX CEI152 Frame Assembly Slide both connectors across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 6 © 2022 Order #XXXXX CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 7 © 2022 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
  • Page 8 © 2022 Order #XXXXX Large Side Frames Assembly Item Qty. Description Steps: 95”h CEI152 Vertical Extrusion Refer to the CEI152 Frame Assembly general information page. 95”h CEI152 Vertical Extrusion 48”w CEI152 Horizontal Extrusion 1) Assemble verticals [2,4] between horizontals [6,7] using corner connectors. 48”w CEI152 Horizontal Extrusion 2) Connect horizontal [8] between verticals [2,4].
  • Page 9 © 2022 Order #XXXXX Small Side Frames Assembly Item Qty. Description Steps: 95”h CEI110 Vertical Extrusion Refer to the CEI110 Frame Assembly general information page. 95”h CEI110 Vertical Extrusion 24”w CEI110 Horizontal Extrusion 1) Assemble verticals [1,2] between horizontals [3,4] 24”w CEI110 Horizontal Extrusion using corner connectors.
  • Page 10 © 2022 Order #XXXXX Closet Assembly Item Qty. Description Steps: 38”w x 95”h lower Gravitee Panel Refer to the Gravitee Assembly general information page. 94.5”h lower Gravitee Corner Post w/ caps 38”w x 95”h lower Gravitee Panel 1) Assemble Gravitee posts & panels [1] through [10] together 38”w x 95”h lower Gravitee Panel in numerical order as shown.
  • Page 11 © 2022 Order #XXXXX Backwall Graphics SEG Graphic Installation Steps: 1) Apply SEG graphics to assembled frames & closet. Corner A Corner B Note: Graphics & Blocker must be attached to closet assembly before connecting backwall panels. Corner D Corner C Step 1 It is important to first insert Insert corner A.
  • Page 12 © 2022 Order #XXXXX Backwall Assembly Steps: 1) Attach left Small Frame vertical [1] to left large frame vertical [4] using bolts & V4 connectors. See Bolt to V4 Connection detail. LARGE LEFT SMALL LEFT SMALL RIGHT LARGE RIGHT 2) Connect left Small Frame vertical [2] to Closet post [2]. FRAME FRAME FRAME...

  • Page 13: Canopy Attachment

    © 2022 Order #XXXXX Canopy Attachment Item Qty. Description Steps: 86”w x 18”d x 3”h Canopy Panel 1) Attach Ceiling Panel [A] to top of Gravitee closet, using Bolts & V4 connectors See Ceiling Attachment detail. 2) Connect power cords to puck lights in ceiling panels. Puck Light Connection detail.
  • Page 14 © 2022 Order #XXXXX Backwall Attachments Item Qty. Description 42”w x 16”d x 42”h Kiosk Counter Light Steps: Light 1) Connect counters to verticals [9,10] of left & right frame assemblies, using Standoff Barrels. Standoff Barrel Attachment detail. When assembled 2) Attach lights to top of backwall where shown.
  • Page 15 © 2022 Order #XXXXX Backwall Attachments (cont’d) Item Qty. Description Steps: Large Monitor Mount 1) Connect monitor mounts to left & right panels as shown. 3” Standoff Barrel Monitor Mount Attachment detail. 8” x 12” Monitor Mounting Plate 2) Attach Closet Monitor Mount closet panels [8/9], using mounting plate 1”...
  • Page 16 © 2022 Order #XXXXX ECO-42C Reception Counter Item Qty. Description Steps: 9/10 46”w CEI110 Horizontal Extrusion 1) Connect horizontals [11,12] between verticals [9,10], 11/12 30.5”h CEI110 Vertical Extrusion sliding backer panel between verticals. CEI-110 Corner Connection detail. 2) Attach left & right cabinets to frame assembly [9/10/11/12] CEI-110 Corner Connection using bolts &...
