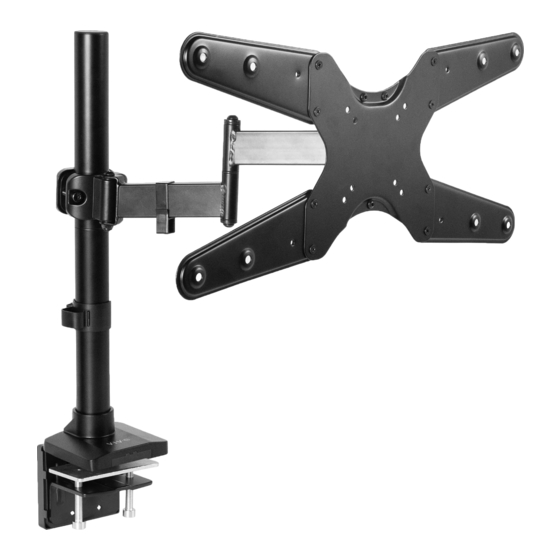

Articulating Arm Single TV Desk Mount
Instruction Manual
SKU: STAND-V155M
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v155m
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V155M
Summary of Contents for Vivo STAND-V155M
- Page 1 Articulating Arm Single TV Desk Mount Instruction Manual SKU: STAND-V155M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v155m GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 (Option A) Clamp Installation: Assemble Clamp Brace (I) to Base (A) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A). Remove adhesive backing from Pad (G) and place it on the underside of the clamp assembly. STEP 2 (Option A) Clamp Installation: Insert M10x63mm Screws (S-A) into Lower Clamp (J) using 6mm Allen Wrench (T-B). - Page 4 STEP 2 (Option A Continued) Clamp Installation: Secure the clamp assembly to the desktop by tightening M10x63mm Screws (S-A) using 6mm Allen Wrench (T-B). Place Cover (H) over the back of Clamp Brace (I). STEP 1 (Option B) Grommet Installation: Assemble Grommet Plate (F) to Base (A) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A).
- Page 5 STEP 3 Thread Bottom Pole (C) into Top Pole (B). Thread the pole assembly onto Base (A) with Pole Cable Clip (N). Tighten the set screws in the bottom of Base (A) using the flat end of 4mm Allen Wrench (T-A). STEP 4 Remove the nuts on the back of the VESA plate on Arm (D) use Wrench (T-C) and remove the plate.
- Page 6 STEP 6 Install VESA Adapter Set (K) to the previously removed VESA Plate using M6x8mm Screws (S-D) in the appropriate configuration based on your TV’s VESA pattern. STEP 7 Secure the VESA plate assembly to the back of the TV using Screws (M-A through M-D) with M8 Washers (M-E).
- Page 7 STEP 8 Secure the VESA plate assembly to Arm (D) using the previously removed nuts and washers. Tighten the nuts using Wrench (T-C). STEP 9 Adjust the tilt using 4mm Allen Wrench (T-A). STEP 10 Route cables through Arm Cable Clip (M) and Pole Cable Clip (N).
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
