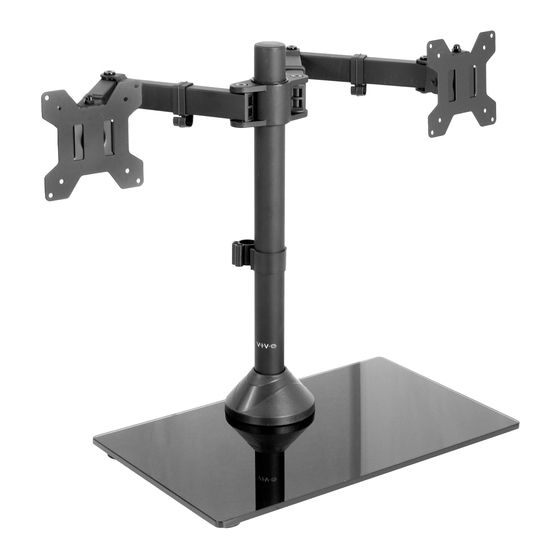

Dual Monitor Desk Stand
Instruction Manual
SKU: STAND-V002FG
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002fg
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V002FG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo STAND-V002FG

Summary of Contents for Vivo STAND-V002FG

  • Page 1 Dual Monitor Desk Stand Instruction Manual SKU: STAND-V002FG Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002fg GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 ASSEMBLY STEPS STEP 1 Remove the adhesive backing from Grommet Soft Pad (H) and apply it to Grommet Plate (C). STEP 2 Assemble Grommet Plate (C) to Pole (A) using M5x14mm Screws (S-A) and 3mm Allen Wrench (T-A). STEP 3 Remove adhesive backing from Washer Soft Pads (S-D) and apply them to M6 Washers (S-C).
  • Page 4 STEP 4 Assemble Grommet Plate (C) to Glass Base (B) using M6x10mm Screws (S-B) and M6 Washers (S-C), making sure that Washer Soft Pads (S-D) are facing up towards the glass. Tighten using 4mm Allen Wrench (T-B). Slide Pole Cover (E) over Pole (A).
  • Page 5 STEP 5 Remove adhesive backing from Rubber Feet (G) and apply feet to the bottom of Glass Base (B) as shown below. STEP 6 Slide Pole Cable Clip (I) and Arm (D) onto Pole (A). Secure Arm (D) using 6mm Allen Wrench (T-D).
  • Page 6 STEP 7 OPTION A: Flat Back Monitor Assemble VESA Plates (F) to the monitors using M4x12mm Thumbscrews (M-A). OPTION B: Curved Back Monitor Assemble VESA Plates (F) to the monitors using M4x30mm Screws (M-B) and M4 Spacers (M-C). STEP 8 Slide VESA Plates (F) onto Arm (D) and install Security Nuts (S-E).
  • Page 7 STEP 9 Assemble Arm Cable Clips (J) to Arm (D). Manage cables using Arm Cable Clips (J) and Pole Cable Clip (I). STEP 10 Use 5mm Allen Wrench (T-C) to adjust the tilt. STEP 11 CAUTION: To prevent tipping, please be careful not to extend the arms too far forward or backward.
