1. General information

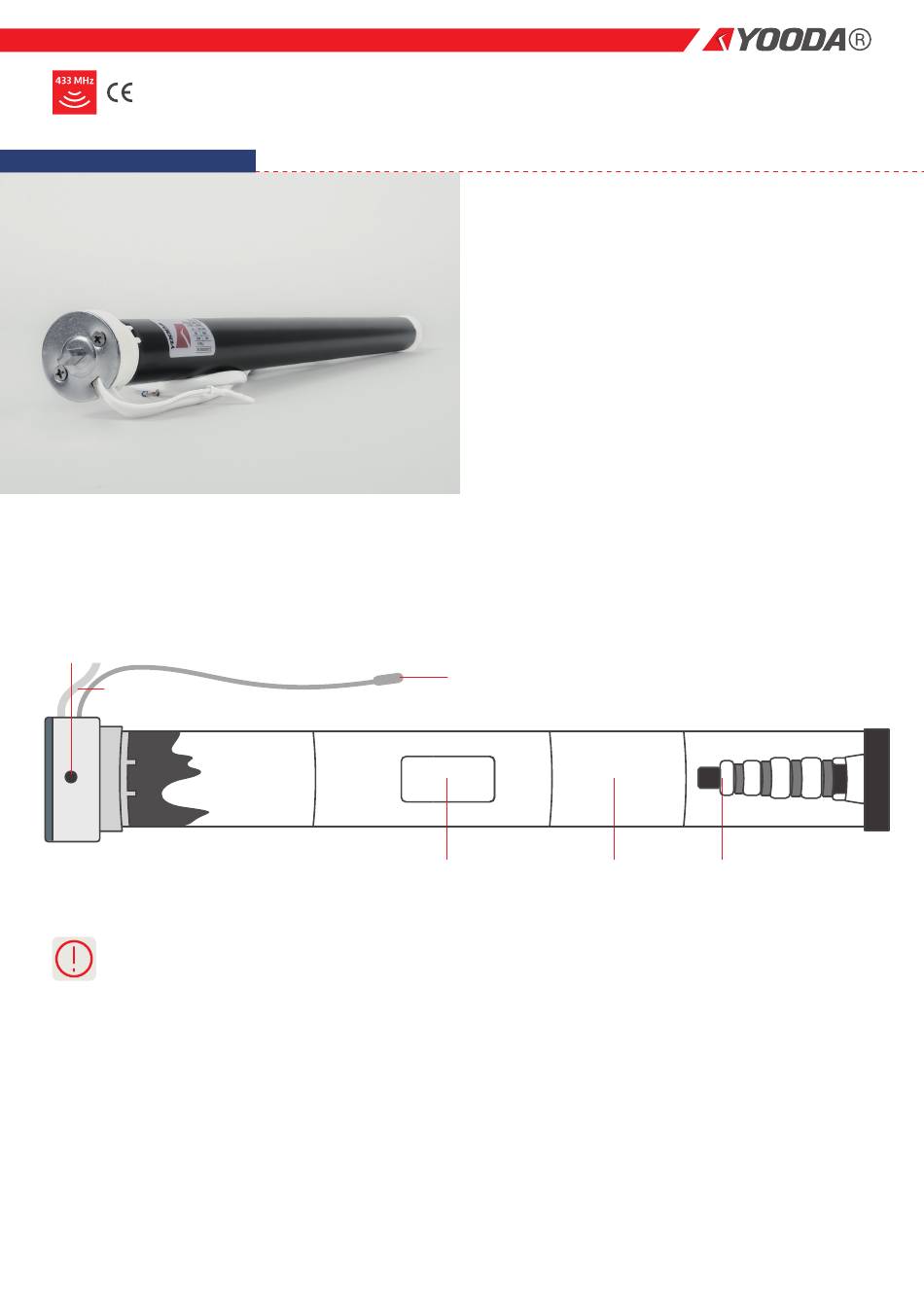

25 TE motor with radio receiver 230 V AC
programming button
power supply cable
Programming button functions:
1. Pressing the programming button briefly for approximately 1 second controls the drive step by step.
2. Press the programming button for 2 seconds to enter the transmitter programming mode.
3. Pressing the programming button for 6 seconds block radio signal . To turn off this function, briefly press the program -
ming button on the motor head.
4. Pressing the programming button for 10 seconds changes work motor direction.
5. Pressing the programming button for 14 seconds deletes the motor memory and restores the factory settings.
25TE SERIES TUBULAR MOTOR
antenna
radio receiver,
limit switches system
1
TE type motors equipped with a radio receiver are wireless
and can be controlled with a remote. They are designed for
automation of blinds. They have electronic limit switches
which are programmed by the remote control. TE type
motores are compatible with all YOODA transmitters.
Radio receiver memory:
up to 20 transmitters
Power supply:
230 V / 50 Hz
Operating temperature:
from -5°C to 50°C
Protection degree:
IP 40
Load:
25TE 0,7 Nm up to 4 kg
25TE 1,5 Nm up to 8 kg
motor
gear
