Non-compliance with the following instructions can not only present risk to life and health, but also affect the correct operation of the entire roller shutter.
It is recommended to abide by the instructions. Tubular motors are compatible with all YOODA SMART HOME devices.
R/S motors are motors with two-way communication.

1. Technical data

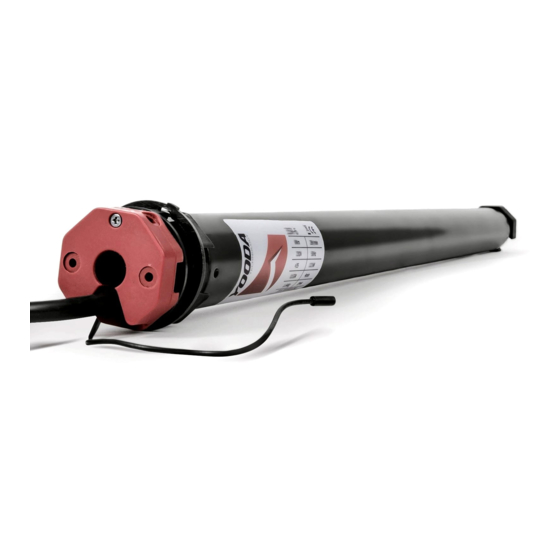

35R/S tubular motor
limit positions
regulator
Maximal work time of the motor is about 4 minutes. After that time thermal protection will turn on, which will cause the
disconnection of the engine protecting it from overheating. You must wait for about 20 minutes after thermal switch has
turned on, so that the motor comes back to the normal operating mode.

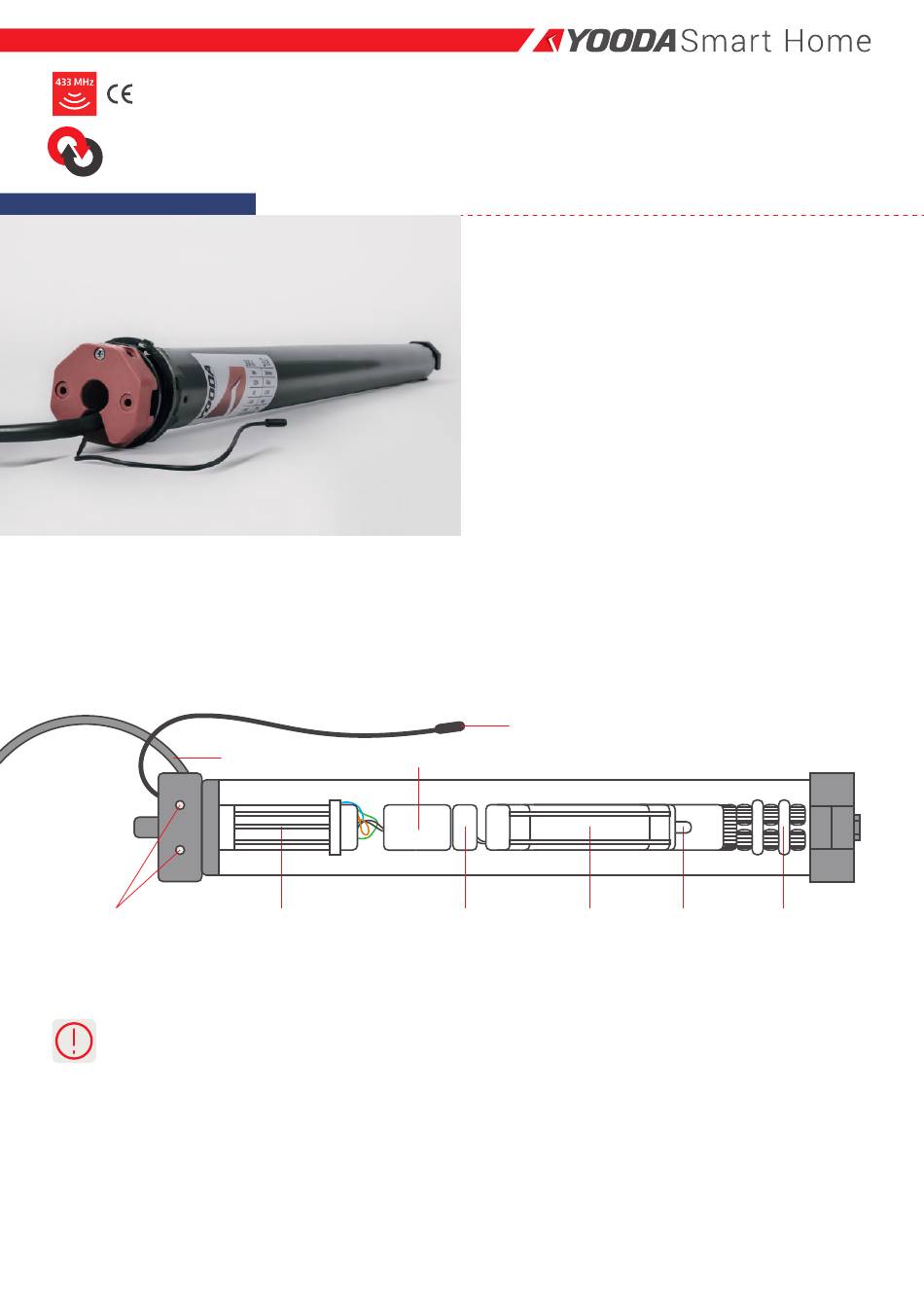

35, 45 R/S SERIES MOTORS
power supply cord
radio receiver
limit switches
R/S motors are motors with two-way communication and a
radio receiver. They are meant for automating internal blinds,
roller shutters or awnings. Mechanical limit switches enable
for the motor to stop in a fixed position of the blind.
Motors are compatible with all YOODA SMART HOME devices.
Radio receiver memory:
up to 10 transmitters
Maximal time of uninterrupted work:
4 min.
Power supply:
230 V / 50 Hz
Working temperature:
from -5°C to 50°C
Safety degree:
IP 44
antenna
capacitor
engine
1
brake
gearing
