YOODA 45 EZ/Y Series Manual

www.sukcesgroup.pl
Non-compliance with the specification might cause risk for life or health and can determine proper work of the blind.
We strongly recommend to comply with the specification.
Installation of the tubular motor should be performed by specialists with 1kV or higher SEP-certified electrician's licence (SEP - Association of Polish
Electrical Engineers) or equal license.
1. General information

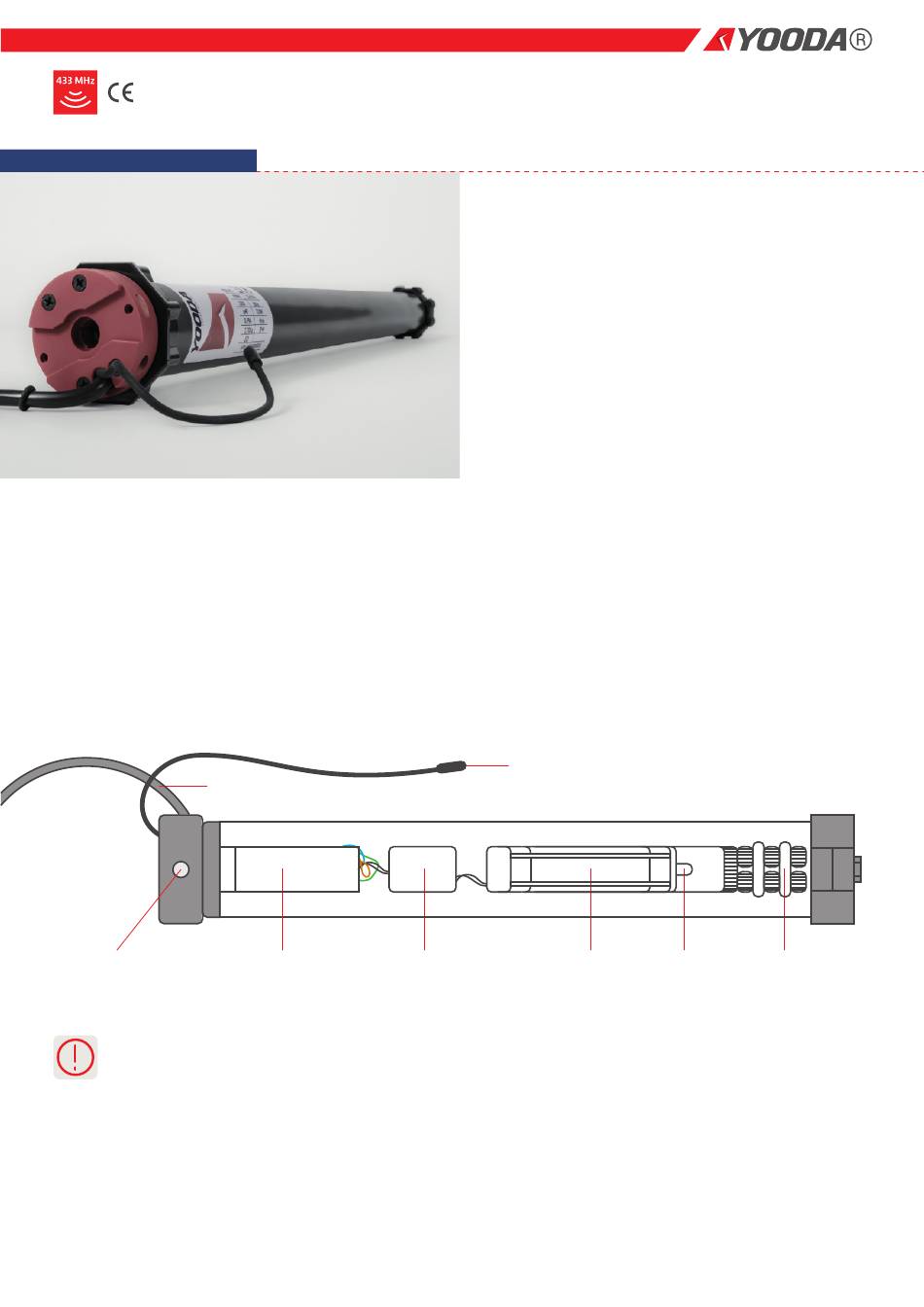

45 EZ/Y tubular motor with obstacle detection
programming
button
Maximal time of continuous work is 4 minutes. After that time thermal protection will be activated preventing motor form
overheating. After that motor will be disabled for about 20 minutes until it cools down.
45 EZ/Y SERIES TUBULAR MOTOR
power supply cable
control system
EZ/Y type motors are designed for automation of narrow
internal or external roller shutters. It's equipped with function
of obstacle detection that forces motor to stop rotating whenever
there's an obstacle. Obstacle detection works both ways
when motor is attached to tube with block hangers . Electronic
limit position switches set by using the remote control provide
ease of programming. Motors provide the ability to set the
third position. EVY series tubular motors are compatible with
all YOODA brand devices.
1. Radio receiver memory:
up to 20 transmitters
2. Max time of continous work:
4 min.
3. Power supply:
230 V / 50 Hz
4. Operating temperature:
from -5°C to 50°C
5. Protection degree:
IP 44
6. Lenght:
395 mm
antenna
capacitor
1
motor brake gear
