Non-compliance with the specification might cause risk for life or health and can determine proper work of the blind.
We strongly recommend to comply with the specification.
Installation of the tubular motor should be performed by specialists with 1kV or higher SEP-certified electrician's licence (SEP - Association of Polish
Electrical Engineers) or equal license.
1. General information
programming
button
Maximal time of continuous work is 4 minutes. After that time thermal protection will be activated preventing motor form
overheating. After that motor will be disabled for about 20 minutes until it cools down.
35EVY and 45EVY SERIES TUBULAR MOTOR
power supply cable
control system
EVY motors are motors with radio receiver. They have
a mechanism for detection of obstacles, so that the motor
stops if sensing resistance in its path. Detection of obstacles
works in both directions, with the use of security locks as well
as with springy hangers. Electronic limit position switches set
by using the remote control provide ease of programming.
Motors provide the ability to set the third position. For EVY
motors, it is possible to connect an impulse switch that
controls the motor in "step by step" mode. EVY series tubular
motors are compatible with all YOODA brand devices.
1. Radio receiver memory:
up to 20 transmitters
2. Max time of continous work:
4 min.
3. Power supply:
230 V / 50 Hz
4. Operating temperature:
from -5°C to 50°C
5. Protection degree:
IP 44

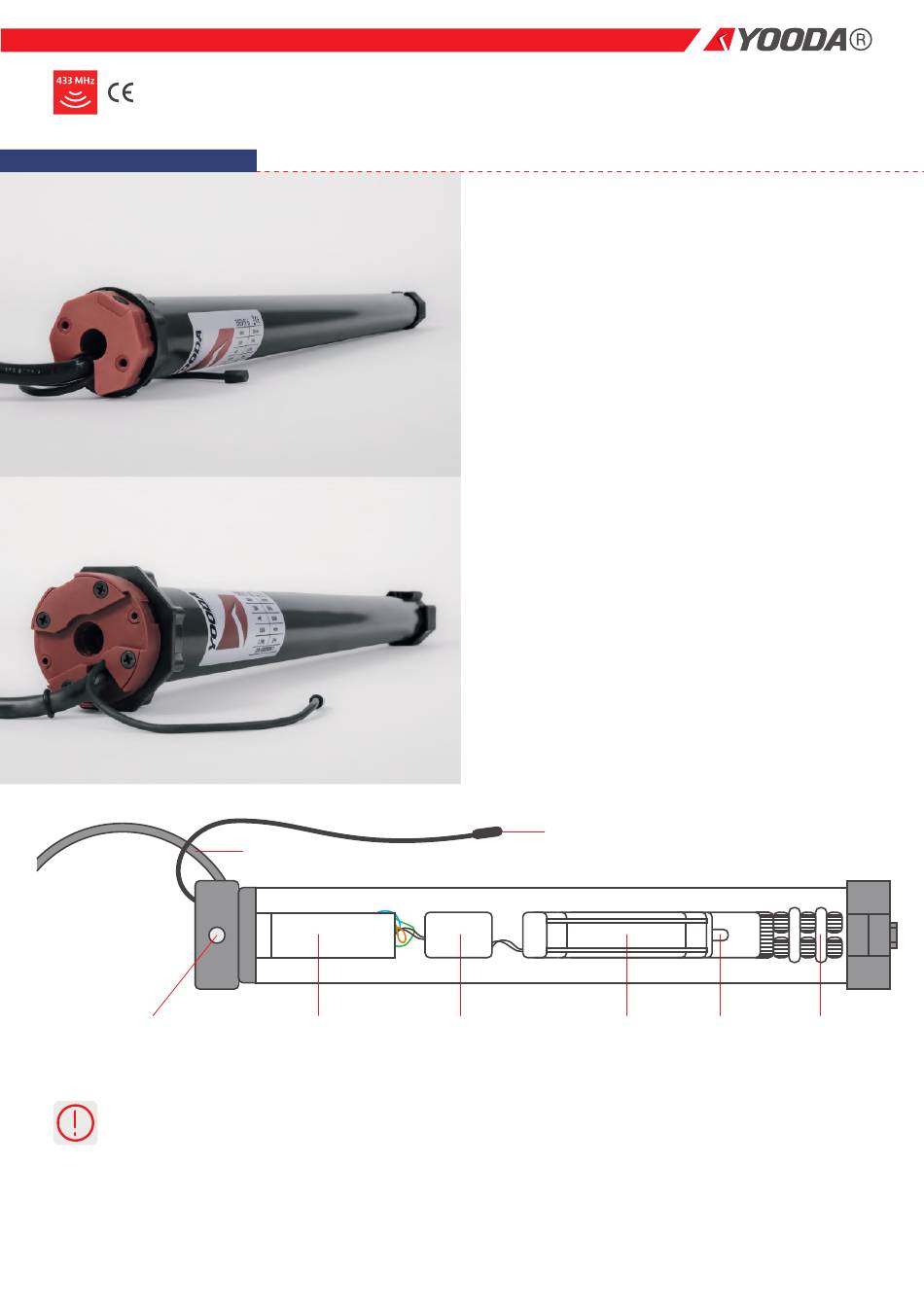

Illustrations from the top:
1. Tubular motor 35 EVY with obstacle detection
2. Tubular motor 45 EVY with obstacle detection
antenna
capacitor
1
motor
brake
gear
Advertisement
Table of Contents
Related Manuals for YOODA 35EVY Series
Summary of Contents for YOODA 35EVY Series
- Page 1 Motors provide the ability to set the third position. For EVY motors, it is possible to connect an impulse switch that controls the motor in "step by step" mode. EVY series tubular motors are compatible with all YOODA brand devices. 1. Radio receiver memory: up to 20 transmitters 2.
- Page 2 2. Safety measures Before installing or using motor please read the following instruction. The installer must comply with the standards and regulations in force in the country where the appliance will be installed and provide information to users about the conditions and maintenance of the device.
- Page 3 4. Connection The control of the impulse switch is possible after programming the transmitter. If the switch is not connected, protect the wires against an accidental short circuit. 230 V / 50 Hz white wire - impulse connector black wire - impulse connector brown wire - phase yellow-green wire - protective Mounting power supply wire,...
- Page 4 6. Programming first transmitter 1. Longer than 4 seconds pause between series of button clicks during programming will cause device to switch off from programming mode without saving any changes. 2. Programming the first transmitter removes the previously programmed transmitters from memory. 3.
- Page 5 Roller shutter will stop when it When the roller shutter The motor will stop in the upper feel resistance. The upper limit reaches the lower limit limit position, confirming the position will be set from 1 cm position and feel resistance, programming of the limit to 3 cm below this position .
- Page 6 10. Programming the third limit position 1. After setting the upper and lower limit positions, it is possible to set the third position (favorite) between those positions. 2. Hold the STOP button for 3 seconds to set the blind in third limit position. Upper limit position has been set.
- Page 7 15. Activating impulse mode 1. Longer than 4 seconds pause between series of button clicks during programming will cause device to switch off from programming mode without saving any changes. 2. When the impulse mode is on, pressing the direction button, motor will make a short move. Press Motor will Press...
