YOODA Ortino DT72TE Series Quick Start Manual

www.sukcesgroup.pl
Non-compliance with the specification might cause risk for life or health and can determine proper work of the curtains.
We strongly recommend to comply with the specification.
The DT72TE/S series are motors with two-way communication

1. General information

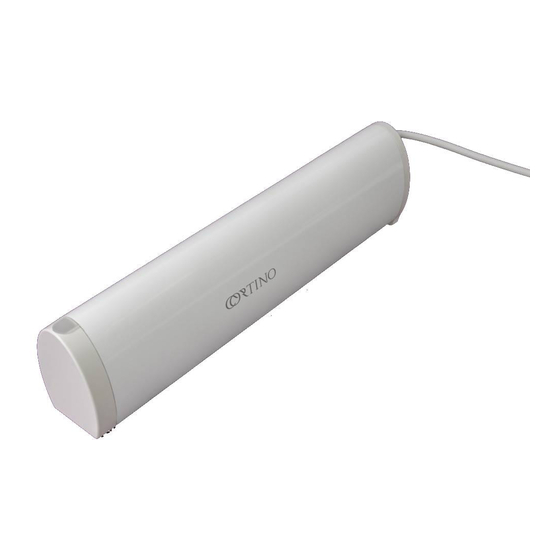

Motor for curtains DT72TE/S
switch
socket
PROGRAMMING BUTTON FUNCTIONS:
1. Pressing the programming button briefly for approximately 1 second controls the drive step by step.
2. Pressing the programming button for 2 secons enters the motor into the transmitter programming mode.
3. Pressing the programming button for 6 seconds activates the function of blocking the radio signal. To deactivate the
function, briefly press the programming button on the motor head or disconnect motor power.
4. Pressing the programming button for 10 seconds changes work motor direction or switch configuration
5. Pressing the programming button for 14 seconds deletes the motor memory and restores the factory settings.

2. Safety measures

Before installing or using motor please read the following instruction. The installer must comply with the standards and regulations in
force in the country where the appliance will be installed and provide information to users about the conditions and maintenance of the
device. Failure to follow these instructions can present risk to life and health, or invalid functioning of the roller shutter. This also results
in the loss of warranty rights.
Motors torque parameter should be adequate to the
weight of the curtain.

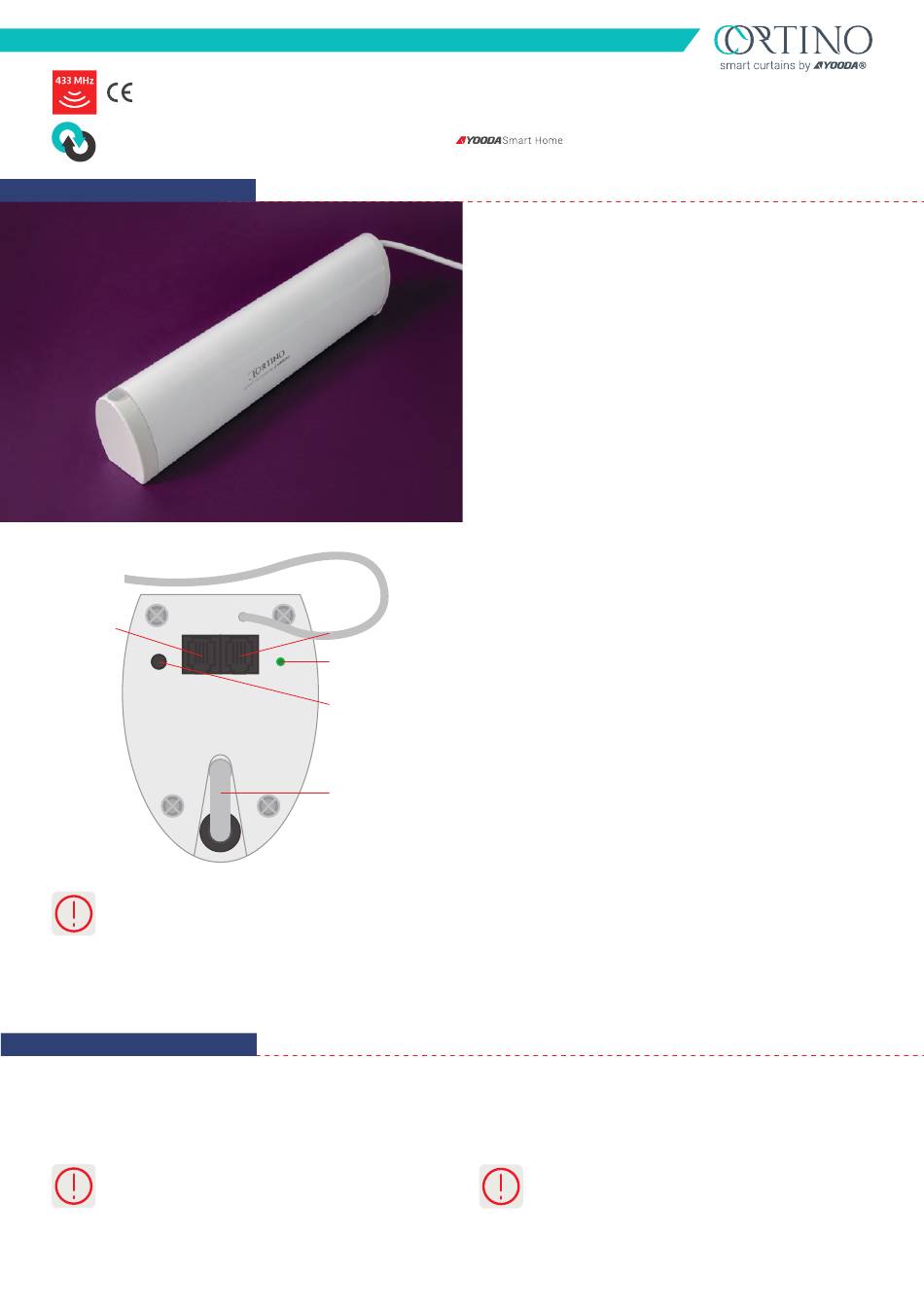

MOTOR FOR CURTAINS DT72TE/S
interface socket
RS485
LED diode
programming
button
power
supply cable
system.
The motors of the DT72TE/S series are motors with two-way
communication and with radio receiver, which together with
the curtain rod are designed to automate curtains and enable
wireless control using a remote control. They have electronic
limit switches that are set automatically. The DT72TE/S series
motors are compatible with all YOODA Smart Home System
transmitters.
Radio receiver memory:
up to 10 transmitters
Power supply:
230 V / 50 Hz
Operating temperature:
from 0°C to 50°C
Protection degree:
IP 20
Load:
up to 50 kg
Maximum continuous work time:
4 min.
Switch off the power supply before any installation
or maintenance operation.
1
