YOODA Cortino DT72EN Manual

www.sukcesgroup.pl
Non-compliance with the specification might cause risk for life or health and can determine proper work of the curtains.
We strongly recommend to comply with the specification.
1. General information

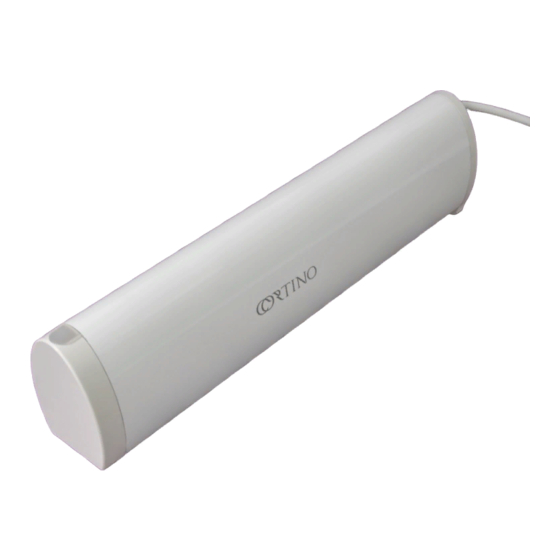

Motor for curtains DT72EN
switch
socket
2. Safety measures
Before installing or using motor please read the following instruction. The installer must comply with the standards and regulations in
force in the country where the appliance will be installed and provide information to users about the conditions and maintenance of the
device. Failure to follow these instructions can present risk to life and health, or invalid functioning of the roller shutter. This also results
in the loss of warranty rights.
Motors torque parameter should be adequate to the
weight of the curtain.
Motor cables should be fixed in such a way that they
have not been damaged by working curtain.
Electrical system control should be performed
regularly to detect any signs of use or damage
of the motor.

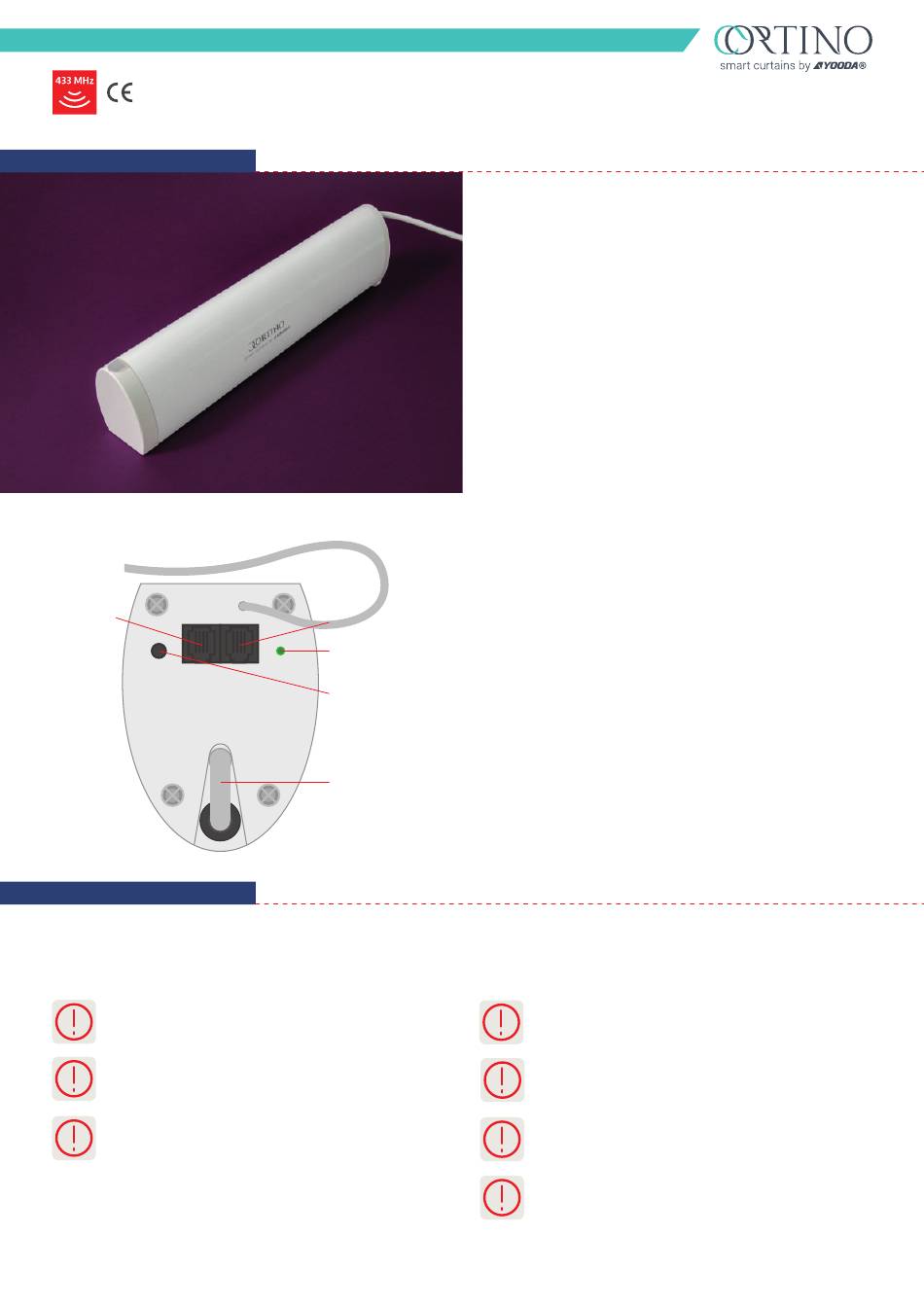

MOTOR FOR CURTAINS DT72EN
interfejs socket
RS485
LED diode
programming
button
power
supply cable
1
The motors of the DT72EN series are motors with a radio
receiver, which together with the curtain rod are designed to
automate curtains and enable wireless control using a remote
control. They have electronic limit switches that are set
automatically. The DT72EN series motors are compatible
with all YOODA and CORTINO brand transmitters.
Radio receiver memory:
up to 20 transmitters
Power supply:
230 V / 50 Hz
Operating temperature:
from 0°C to 50°C
Protection degree:
IP 20
Load:
up to 50 kg
Maximum continuous work time:
6 min.
Switch off the power supply before any installation
or maintenance operation.
All contact of the motor with any liquids
should be reduced to minimum.
Motor and its control system should be kept out
or reach of children.
The switch should be mounted at a height of not less
than 140 cm, and at such a distance from the curtain
to be able to observe its operation during use.
