YOODA 35EV/S Series Manual

35EV/S and 45EV/S SERIES TUBULAR MOTORS
Non-compliance with the specification might cause risk for life or health and can determine proper work of the blind.
We strongly recommend to comply with the specification.
Installation of the tubular motor should be performed by specialists with 1kV or higher SEP-certified electrician's licence (SEP - Association of Polish
Electrical Engineers) or equal license.
Transmitters are compatible with all YOODA SMART HOME brand devices.
35EV/S and 45EV/S series tubular motors are compatible with all YOODA SMART HOME brand devices.
EV/S tubular motors are motors with two-way communication.

1. General information

power supply cable
programming
button
Maximal time of continuous work is 4 minutes. After that time thermal protection will be activated preventing motor form
overheating. After that motor will be disabled for about 20 minutes until it cools down.
control system capacitor
EV / S motors are motors with two-way communication and a
radio receiver. They have a mechanism for detection of
obstacles, so that the motor stops if sensing resistance in its
path. Detection of obstacles works in both directions, with the
use of lock hangers as well as with springy hangers.
Electronic limit position switches set by using the remote
control provide ease of programming. Motors provide the
ability to set the third position.
For EV / S motors, it is possible to connect an impulse switch
that controls the motor in "step by step" mode.
EV/S series tubular motors are compatible with all
YOODA SMART HOME brand devices.
Radio receiver memory:
up to 10 transmitters
Max time of continous work:
4 min.
Power supply:
230 V / 50 Hz
Operating temperature:
from -5°C to 50°C
Protection degree:
IP 44

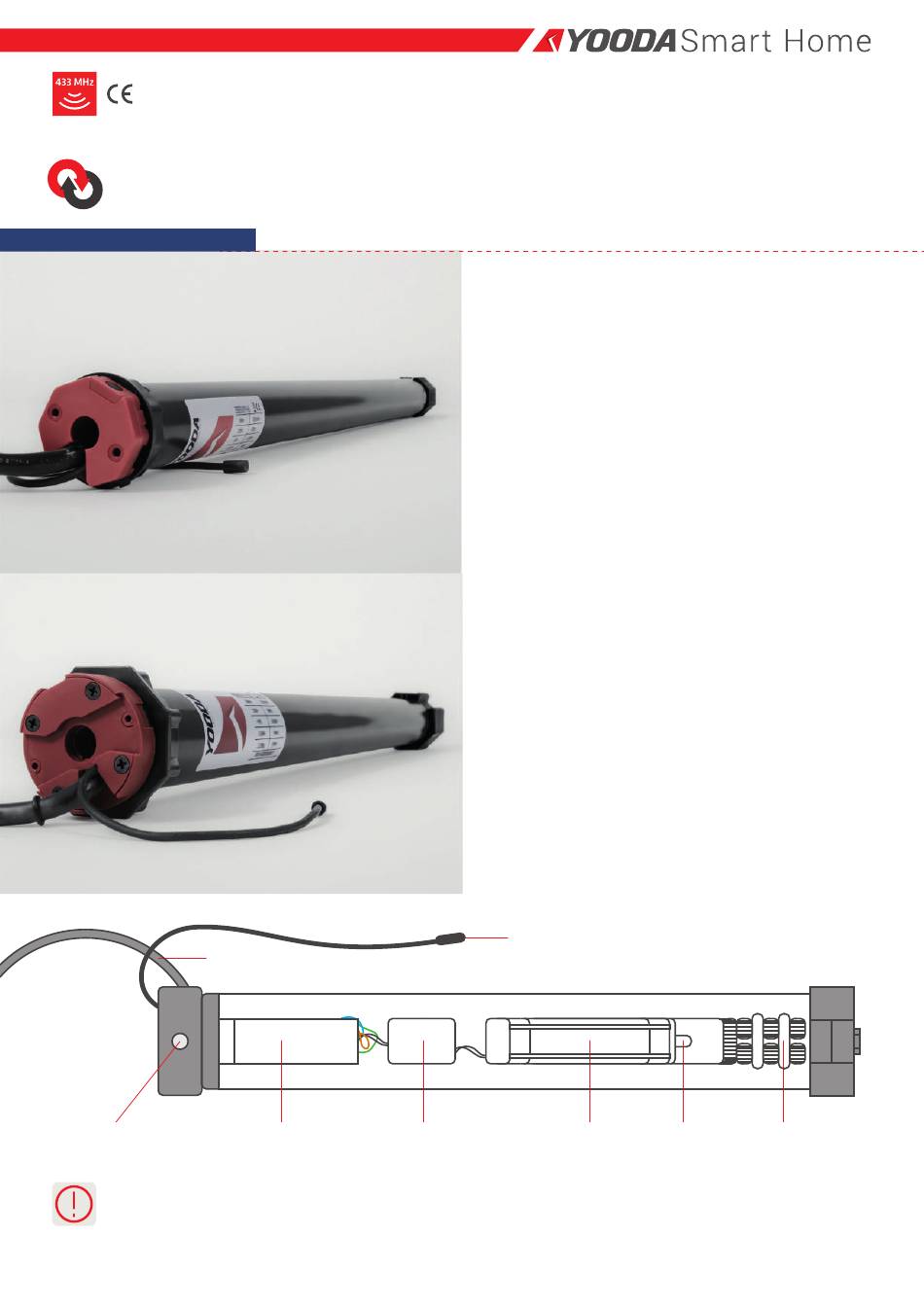

Illustrations from the top:
1. Tubular motor 35 EV/S with obstacle detection
2. Tubular motor 45 EV/S with obstacle detection
antenna
motor
1
brake gear
