45 EM/S SERIES TUBULAR MOTORS
www.sukcesgroup.pl
Non-compliance with the specification might cause risk for life or health and can determine proper work of the blind.
We strongly recommend to comply with the specification.
Installation of the tubular motor should be performed by specialists with 1kV or higher SEP-certified electrician's licence (SEP - Association of Polish
Electrical Engineers) or equal license.
Transmitters are compatible with all YOODA SMART HOME brand devices.
35EV/S and 45EV/S series tubular motors are compatible with all YOODA SMART HOME brand devices.
EM/S tubular motors are motors with two-way communication.

1. General information

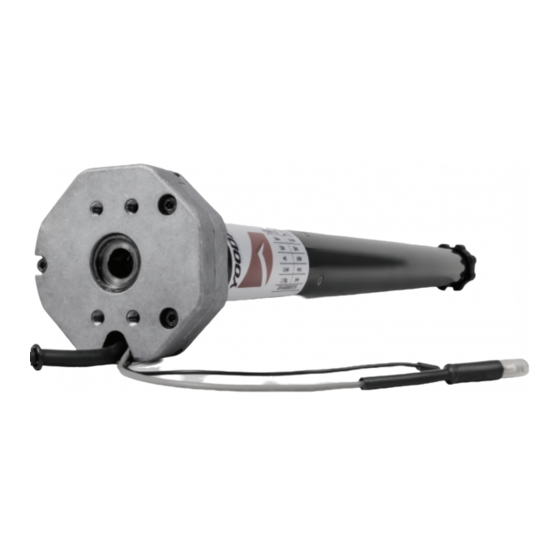

Tubular motor 45 EM/S with obstacle detection
Maximal time of continuous work is 4 minutes. After that time thermal protection will be activated preventing motor form
overheating. After that motor will be disabled for about 20 minutes until it cools down.
power supply cable
emergency opening socket
emergency opening
mechanism
The EM / S motors type are motors with 2 way communication,
a radio receiver and an emergency opening mechanism that
allows opening or closing the gate or roller shutter in the event
of a power failure. They have a mechanism for detection of
obstacles, so that the motor stops if sensing resistance in its
path. Detection of obstacles works in both directions, with the
use of lock hangers.
Electronic limit position switches set by using the remote
control provide ease of programming. Motors provide the
ability to set the third position.
EM/S series tubular motors are compatible with all
YOODA SMART HOME brand devices.
Radio receiver memory:
up to 10 transmitters
Max time of continous work:
4 min.
Power supply:
230 V / 50 Hz
Operating temperature:
from -5°C to 50°C
Protection degree:
IP 44
microswitch
antenna
control system
capacitor
motor
1
brake
gear

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Home 45 EM/S Series and is the answer not in the manual?

Questions and answers

Summary of Contents for YOODA Smart Home 45 EM/S Series

  • Page 1 Electrical Engineers) or equal license. Transmitters are compatible with all YOODA SMART HOME brand devices. 35EV/S and 45EV/S series tubular motors are compatible with all YOODA SMART HOME brand devices. EM/S tubular motors are motors with two-way communication. 1. General information...
  • Page 2 PROGRAMMING BUTTON FUNCTIONS: 1. Pressing the programming button briefly for approximately 1 second controls the drive step by step. 2. Pressing the programming button for 2 secons enters the motor into the transmitter programming mode. 3. Pressing the programming button for 6 seconds activates the function of blocking the radio signal. To deactivate the function, briefly press the programming button on the motor head or disconnect motor power.
  • Page 3 4. Connection 230 V / 50 Hz brown wire - phase yellow-green wire - protective Mounting power supply wire, blue wire - neutral antenna and microswitch. 230 V AC phase wire neutral wire protective wire Installation of the tubular motor should be performed by specialists with 1kV or higher SEP-certified electrician's licence (SEP - Association of Polish Electrical Engineers) or equal license.
  • Page 4 6. Programming first transmitter 1. Longer than 6 seconds pause between series of button clicks during programming will cause device to switch off from programming mode without saving any changes. 2. If the end positions are not set, the programming of the first transmitter results in the deleting of pre-programmed transmitters from memory.
  • Page 5 B. LOWER LIMIT POSITION: The lower limit position has been set. Press We stop the motor Simultaneously Roller shutters will DOWN button. in the lower limit position. press and hold DOWN make 2 short up/down and STOP buttons for movements. Motor will 2 seconds to confirm make several sounds.
  • Page 6 10. Programming the third limit position 1. After setting the upper and lower limit positions, it is possible to set the third position (favorite) between those positions. 2. Hold the STOP button for 3 seconds to set the blind in third limit position. Upper limit position has been set.
  • Page 7 METHOD 2: Press programming button P2 Motor will Press Motor will Press and hold Roller shutters Remote control on the A remote control. make a sound. programming button P2 make a sound. STOP button will make 2 short has been programmed. Roller shutters on the A remote control.
  • Page 8 16. Activating impulse mode 1.Longer than 6 seconds pause between series of button clicks during programming will cause device to switch off from programming mode without saving any changes. 2. To activate impulse mode follow the procedure below. To deactivate impulse mode repeat this procedure. 3.
