Summary of Contents for KaVo MASTERmatic LUX M10 L

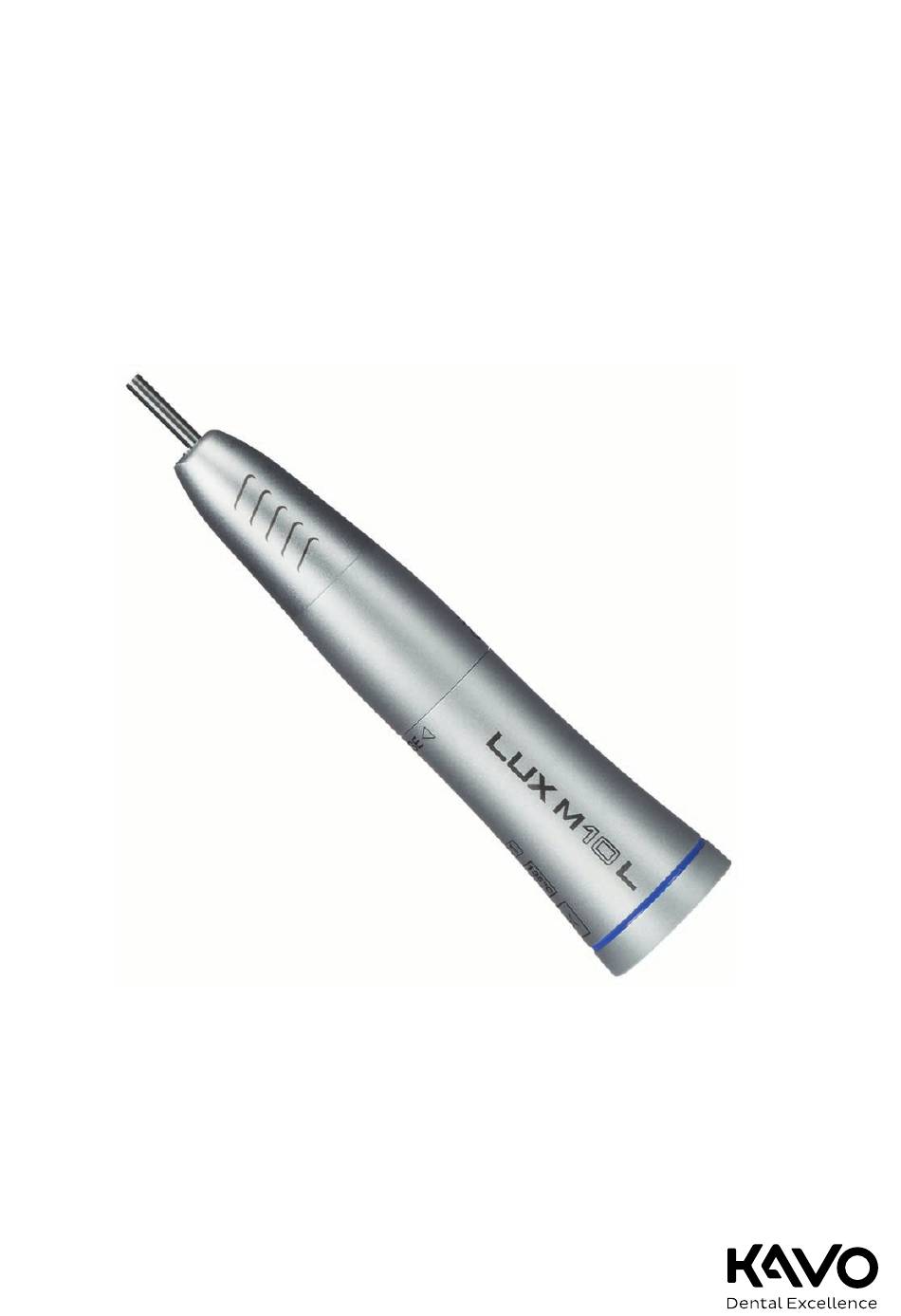

- Page 1 Instructions for use MASTERmatic LUX M10 L - 1.009.3570...
- Page 2 Manufacturer: Distributed by: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 D-88400 Biberach D-88400 Biberach Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
-
Page 3: Table Of Contents
Instructions for use MASTERmatic LUX M10 L - 1.009.3570 Table of contents Table of contents 1 User instructions............................... 5 2 Safety................................6 2.1 Description of safety instructions......................6 2.2 Safety instructions............................ 6 3 Product description............................8 3.1 Purpose – Intended use..........................8 3.2 Technical Specifications........................... - Page 4 Instructions for use MASTERmatic LUX M10 L - 1.009.3570 Table of contents 9 Warranty terms and conditions........................24 4 / 26...
-
Page 5: User Instructions
Instructions for use MASTERmatic LUX M10 L - 1.009.3570 1 User instructions | 1 User instructions Dear User Congratulations on purchasing this KaVo quality product. By following the instructions below you will be able to work smoothly, economically and safely. © Copyright by KaVo Dental GmbH Symbols... -
Page 6: Safety
Instructions for use MASTERmatic LUX M10 L - 1.009.3570 2 Safety | 2.1 Description of safety instructions 2 Safety 2.1 Description of safety instructions Warning symbol Structure DANGER The introduction describes the type and source of the hazard. This section describes potential consequences of non-compliance. - Page 7 To ensure proper function, the medical device must be set up according to the reproc‐ essing methods described in the KaVo Instructions for Use, and the care products and care systems described therein must be used. KaVo recommends specifying a service interval at the dental office for a licensed shop to clean, service and check the func‐...
-
Page 8: Product Description
Instructions for use MASTERmatic LUX M10 L - 1.009.3570 3 Product description | 3.1 Purpose – Intended use 3 Product description MASTERmatic LUX M10 L (Mat. no. 1.009.3570) 3.1 Purpose – Intended use Indications for use: This medical device is ▪... -
Page 9: Technical Specifications
Instructions for use MASTERmatic LUX M10 L - 1.009.3570 3 Product description | 3.2 Technical Specifications 3.2 Technical Specifications Drive speed max. 40,000 rpm Transmission ratio Maximum speed: max. 40,000 rpm Identification 1 blue ring Spray water pressure 0.8 to 2.0 bar (12 to 29 psi) Spray air pressure 1.0 to 2.0 bar (15 to 29 psi) -
Page 10: Start Up And Shut Down
Instructions for use MASTERmatic LUX M10 L - 1.009.3570 4 Start up and shut down | 4.1 Check the amount of water 4 Start up and shut down WARNING Hazard from non-sterile products. Infection hazard for care provider and patient. -
Page 11: Operation
Instructions for use MASTERmatic LUX M10 L - 1.009.3570 5 Operation | 5.1 Attach the medical device 5 Operation 5.1 Attach the medical device WARNING Release of the medical device during treatment. A medical device that is not properly locked in place can release from the motor cou‐... -
Page 12: Remove The Handpiece Or Contra-Angle Handpiece Drill Bit
Instructions for use MASTERmatic LUX M10 L - 1.009.3570 5 Operation | 5.4 Remove the handpiece or contra-angle handpiece drill bit WARNING Use of unauthorised cutters or grinders. Injury to the patient or damage to the medical device. ▶ Observe the instructions for use and use the cutter or grinder properly. - Page 13 Instructions for use MASTERmatic LUX M10 L - 1.009.3570 5 Operation | 5.5 Conversion for contra-angle handpiece drill bit ▶ Press the contra-angle drill bit onto the stop, close the clamping ring, and check for firm seating. ▶ To remove the drill bit stop, use the accompanying hook.
-
Page 14: Troubleshooting
Malfunctions or complete failure of the medical device. ▶ Do not use Vaseline or other grease or oil. Note The O-ring on the coupling may only be lubricated with a cotton ball wet with KAVO spray. ▶ Press the O-ring between your fingers to form a loop. - Page 15 Instructions for use MASTERmatic LUX M10 L - 1.009.3570 6 Troubleshooting | 6.2 Troubleshooting ▶ Use the nozzle needle (Mat. no. 0.410.0921) to free the water passage in the spray nozzles. 15 / 26...
-
Page 16: Reprocessing Steps In Accordance With Iso 17664
▶ In order to prevent negative effects on the medical device, make sure that the in‐ terior and the exterior of the medical device are dry after completion of the cycle, and then grease it immediately with servicing agents from the KaVo care system. 7.2.3 Manual cleaning - internal Validated interior cleaning (residual protein removal) can only be accomplished with KaVo CLEANspray and KaVo DRYspray. -
Page 17: Automated Internal Cleaning
7 Reprocessing steps in accordance with ISO 17664 | 7.3 Disinfection ▶ Cover the medical device with the KaVo CLEANpac bag, and place it on the cor‐ responding care adapter. Press the spray button three times for 2 seconds each time. -
Page 18: Manual Disinfection - External
7.3.2 Manual disinfection - internal The efficacy of manual internal disinfection must be demonstrated by the manufactur‐ er of the disinfection agent. With KaVo products, use only disinfection agents that have been released by KaVo, with respect to the compatibility of materials (e.g. -
Page 19: Care Products And Systems - Servicing
▶ Carry out the servicing according to the instructions in the section, "Care with Ka‐ Vo Spray". 7.5.2 Care with the KaVo SPRAYrotor ▶ Place the product on the appropriate coupling on the KaVo SPRAYrotor and cov‐ er it with the Cleanpac bag. ▶ Servicing the product. -
Page 20: Servicing With Kavo Quattrocare 2104 / 2104A
(no validated cleaning of the interior in accordance with German RKI requirements) KaVo recommends servicing the product as part of the reprocessing after each use, i.e. after each cleaning, disinfection, and before each sterilisation. ▶ Remove the cutter or grinder. -
Page 21: Servicing With Kavo Quattrocare Clean 2140 A
7 Reprocessing steps in accordance with ISO 17664 | 7.5 Care products and systems - Servicing Servicing the clamping chuck KaVo recommends cleaning and servicing the chuck system once a week using the collet servicing program integrated in the device. -
Page 22: Packaging
▶ Immediately remove the product from the steam steriliser after the sterilisation cy‐ cle! The KaVo medical device has a maximum temperature resistance of up to 138 ℃ (280.4 °F). Select a suitable procedure (depending on the available autoclave) from the following sterilisation processes: ▪... -
Page 23: Tools And Consumables
Instructions for use MASTERmatic LUX M10 L - 1.009.3570 8 Tools and consumables | 7.8 Storage 8 Tools and consumables Available from dental suppliers. Material summary Mat. No. Instrument stand 2151 0.411.9501 Cleanpac 10 units 0.411.9691 Cellulose pad 100 units 0.411.9862... - Page 24 Defects or their consequences that can be attributed to interventions on or changes made to the product by the customer or a third party not authorised by KaVo are ex‐ cluded from the warranty. Service warranty claims will only be accepted if the product is submitted along with proof of purchase in the form of a copy of the invoice/delivery note.
