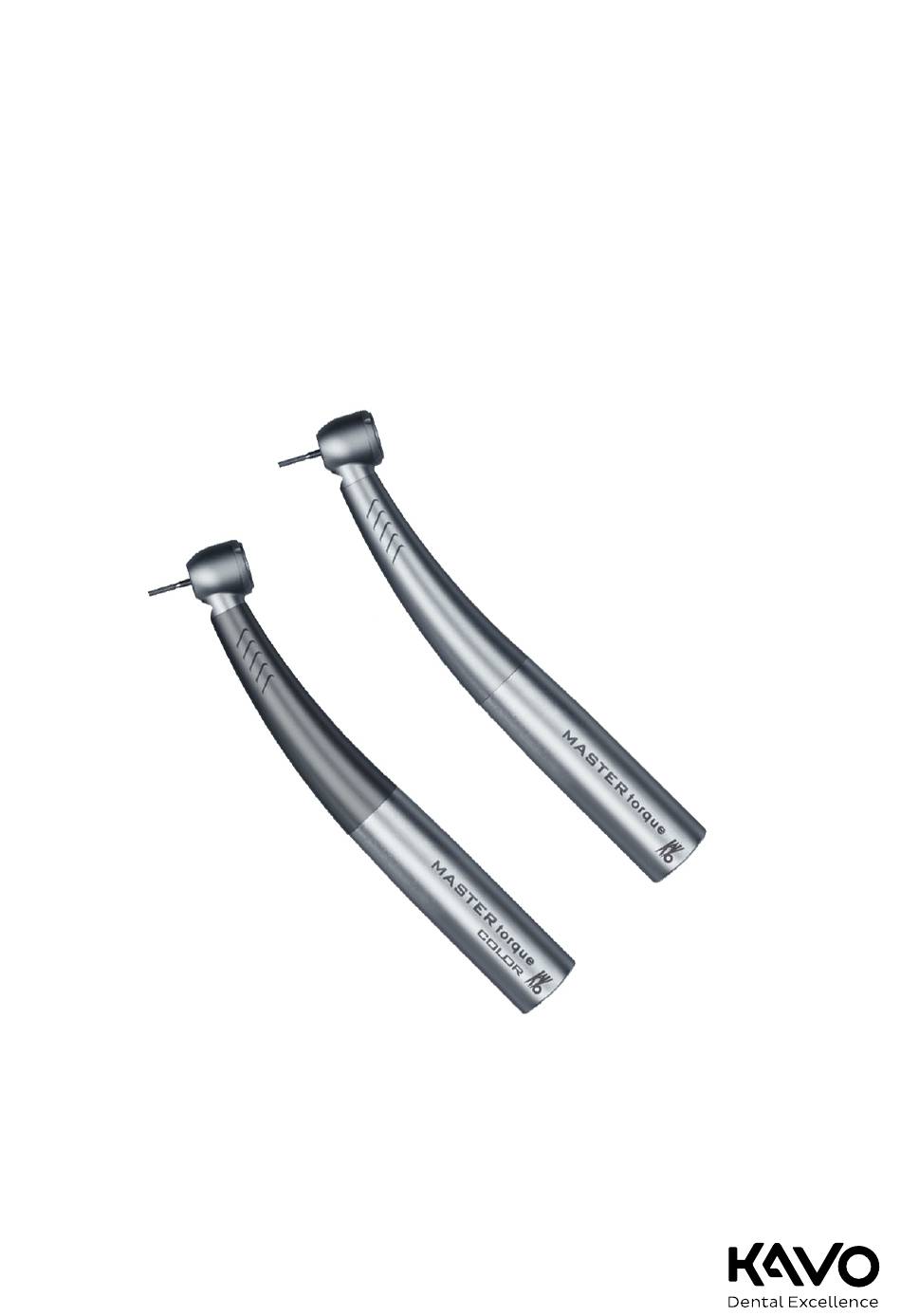

  • Page 1 Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400...
  • Page 2 Distributed by: Manufacturer: KaVo Dental GmbH Kaltenbach & Voigt GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...

  • Page 3: Table Of Contents

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 Table of contents Table of contents 1 User instructions ........................ 5 2 Safety..........................8 2.1 Infection hazard ......................8 2.2 Improper use ........................ 8 2.3 Technical condition ......................8 2.4 Accessories and combination with other equipment............
  • Page 4 Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 Table of contents 7.4.2 Servicing with KaVo QUATTROcare PLUS ............. 26 7.4.3 Care with KaVo SPRAYrotor................. 27 7.4.4 Servicing with KaVo QUATTROcare ..............28 7.5 Packaging ........................28 7.6 Sterilisation........................

  • Page 5: User Instructions

    KaVo Dental GmbH. All other trademarks are property of their respective owners. KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using www.ka- vobox.com. KaVo Technical Service If you have any questions or complaints, please contact the KaVo...
  • Page 6 Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 1 User instructions Information on the packaging Material number Serial number Legal Manufacturer CE mark according to Medical Devices Directive EC 93/42 Please note the electronic instructions for use...
  • Page 7 Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 1 User instructions NOTICE In cases which – if not prevented – can lead to material damage. 7 / 34...

  • Page 8: Safety

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 2 Safety | 2.1 Infection hazard 2 Safety The instructions for use are a component of the product and must be read care- fully prior to use and be accessible at all times.

  • Page 9: Accessories And Combination With Other Equipment

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 2 Safety | 2.4 Accessories and combination with other equipment ▪ Irregular running noise ▪ Excessive vibration ▪ Overheating ▪ Dental bur is not seated firmly in the handpiece...
  • Page 10 Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 2 Safety | 2.6 Service and repair As a result of the use of NON-KaVo original spare parts during the repair, parts such as covers may become undone and injure the patient, user or other people.

  • Page 11: Product Description

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 3 Product description | 3.1 Purpose – Proper use 3 Product description MASTERtorque LUX M9000 L (Mat. no. 1.008.7900) MASTERtorque LUX M9000 LS (Mat. no. 1.008.5400) 3.1 Purpose –...

  • Page 12: Technical Specifications M9000 L

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 3 Product description | 3.2 Technical Specifications M9000 L 3.2 Technical Specifications M9000 L Drive pressure 2.1 to 4.2 bar (30 to 61 psi) Recommended drive pressure 2.8 bar (41 psi)
  • Page 13 Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 3 Product description | 3.4 Transportation and storage conditions Air pressure: 700 hPa to 1060 hPa (10 psi to 15 psi) Protect from moisture (Keep dry)

  • Page 14: Start Up And Shut Down

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 4 Start up and shut down | 4.1 Installing the MULTIflex coupling in the M9000 L 4 Start up and shut down WARNING Hazard from non-sterile products.

  • Page 15: Checking The Pressures, M9000 L

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 4 Start up and shut down | 4.3 Checking the pressures, M9000 L 4.3 Checking the pressures, M9000 L NOTICE Contaminated or moist compressed air at the compressed air connec-...

  • Page 16: Checking The O-Rings

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 4 Start up and shut down | 4.5 Checking the O-rings 4.5 Checking the O-rings NOTICE Missing or damaged O-rings. Malfunction and premature failure. ▶ Make sure that all O-rings are on the coupling and are undamaged.

  • Page 17: Operation

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 5 Operation | 5.1 Attaching the medical device, M9000 L 5 Operation CAUTION Heat transmission during the preparation of abutments. Thermal damage to the jawbone.

  • Page 18: Removing The Medical Device

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 5 Operation | 5.3 Removing the medical device ▶ Pull on it to make sure that the medical device is securely affixed to the coupling.

  • Page 19: Removing The Dental Bur

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 5 Operation | 5.5 Removing the dental bur NOTICE Tool shaft slips inside the chuck due to excessive speed of the tool or abrupt engagement of the tool.

  • Page 20: Troubleshooting

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 6 Troubleshooting | 6.1 Changing the O-rings on the MULTIflex coupling, M9000 L 6 Troubleshooting WARNING Repair WITHOUT using KaVo original spare parts. Parts such as the cover can come loose and cause injury.

  • Page 21: Changing The Water Filter

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 6 Troubleshooting | 6.4 Changing the water filter CAUTION Hazard from insufficient spray water. Overheating of the medical device and damage to the tooth. ▶ Check the spray water channels and clean the spray nozzles with the nozzle needle Mat.

  • Page 22: Reprocessing Steps In Accordance With Iso 17664

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 7 Reprocessing steps in accordance with ISO 17664 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664 7.1 Preparations at the site of use WARNING Hazard from contaminated products.

  • Page 23: Manual External Disinfection

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 7 Reprocessing steps in accordance with ISO 17664 | 7.2 Manual Reprocessing ▶ Hold the can vertically. ▶ Press the spray button three times for 2 seconds each time.

  • Page 24: Manual Disinfection - Internal

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 7 Reprocessing steps in accordance with ISO 17664 | 7.2 Manual Reprocessing 7.2.4 Manual disinfection - internal WARNING Incomplete disinfection. Infection hazard. ▶ Only use disinfection procedures that are verified to be bactericidal, fungi- cidal and virucidal.

  • Page 25: Automated Reprocessing

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 7 Reprocessing steps in accordance with ISO 17664 | 7.3 Automated reprocessing 7.3 Automated reprocessing WARNING Incomplete disinfection. Infection hazard. ▶ Only use disinfection procedures that are verified to be bactericidal, fungi- cidal and virucidal.

  • Page 26: Care Products And Systems - Servicing

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 7 Reprocessing steps in accordance with ISO 17664 | 7.4 Care products and systems - Servicing ▶ Immediately after drying, lubricate the KaVo medical device with care agents from the KaVo care system.

  • Page 27: Care With Kavo Sprayrotor

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 7 Reprocessing steps in accordance with ISO 17664 | 7.4 Care products and systems - Servicing See also: 2 Instructions for use KaVo QUATTROcare PLUS...

  • Page 28: Servicing With Kavo Quattrocare

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 7 Reprocessing steps in accordance with ISO 17664 | 7.5 Packaging 7.4.4 Servicing with KaVo QUATTROcare Note QUATTROcare 2104 / 2104 A is no longer included in the current de- livery programme.

  • Page 29: Sterilisation

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 7 Reprocessing steps in accordance with ISO 17664 | 7.6 Sterilisation 7.6 Sterilisation Sterilisation in a steam steriliser (autoclave) in accordance with EN 13060 / EN ISO 17665-1 CAUTION Improper service and care.

  • Page 30: Optional Aids And Consumables

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 8 Optional aids and consumables 8 Optional aids and consumables Available from dental suppliers. Material summary Mat. No. Spare turbine with wrench 2.000.2288 Spare turbine without wrench 2.000.2266...

  • Page 31: Terms And Conditions Of Warranty

    Instructions for use MASTERtorque LUX M9000 L - 1.008.7900 MASTERtorque LUX M9000 LS - 1.008.5400 9 Terms and conditions of warranty | 7.7 Storage 9 Terms and conditions of warranty The following warranty conditions apply to this KaVo medical device:...
