- Page 1 Instructions for use MASTERmatic LUX M25 L - 1.009.3630 MASTERmatic LUX M05 L - 1.009.3640 MASTERmatic LUX M45 L - 1.014.0280...
- Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
-
Page 3: Table Of Contents
7.4 Care products and systems - Servicing................22 7.4.1 Servicing with KaVo Spray ................23 7.4.2 Servicing with KaVo QUATTROcare PLUS ............23 7.5 Packaging ........................24 7.6 Sterilisation ........................24 7.7 Storage........................24 8 Optional aids and consumables ..................26 9 Terms and conditions of warranty .................. -
Page 4: User Instructions
MASTERmatic is a registered trademark of KaVo Dental GmbH. All other trademarks are property of their respective owners. KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using www.kavobox.com. KaVo Technical Service... -
Page 5: Hazard Levels
Instructions for use MASTERmatic LUX M25 L - 1.009.3630, MASTERmatic LUX M05 L - 1.009.3640, MASTERmatic LUX M45 L - 1.014.0280 1 User instructions Serial number UDI symbol Manufacturer Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark for medical devices EAC conformity mark (Eurasian Conformity) - Page 6 Instructions for use MASTERmatic LUX M25 L - 1.009.3630, MASTERmatic LUX M05 L - 1.009.3640, MASTERmatic LUX M45 L - 1.014.0280 1 User instructions CAUTION In cases which – if not prevented – can lead to minor or moderate injury. CAUTION In cases which –...
-
Page 7: Safety
2.3 Technical condition A damaged product or damaged or NOT KaVo original components could injure patients, users or third parties. 4 Only operate devices or components if they show no signs of damage on the outside. -
Page 8: Accessories And Combination With Other Equipment
4 Do not make any modifications to the device unless these have been ap- proved by the manufacturer of the product. 4 Use original KaVo spare parts only. The lack of control equipment for changing the speed range and the direction of rotation can lead to injury. -
Page 9: Service And Repair
Define the service interval depending on the frequency of use. As a result of the use of NON-KaVo original spare parts during the repair, parts such as covers may become undone and injure the patient, user or other people. -
Page 10: Description Of The Product

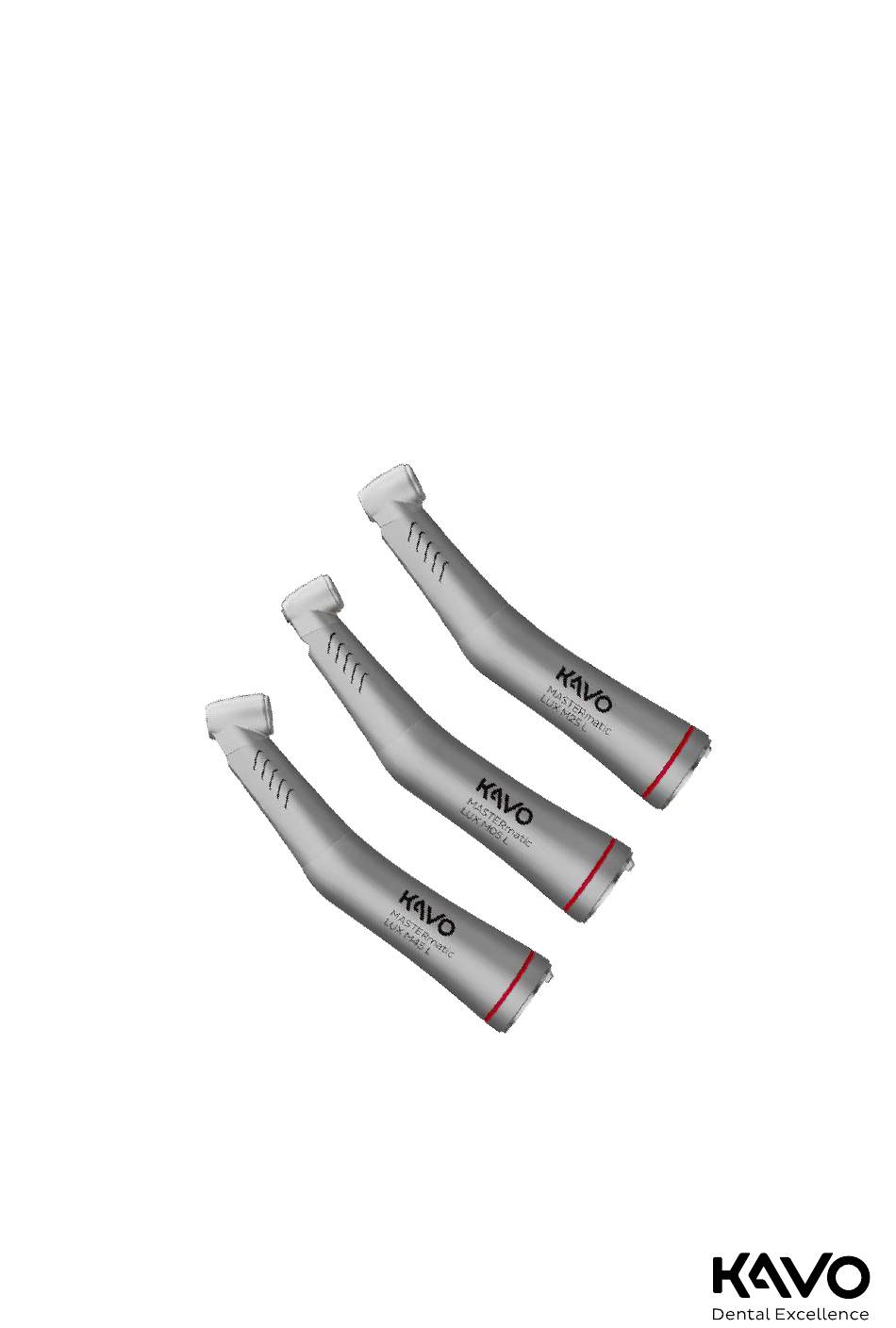

Instructions for use MASTERmatic LUX M25 L - 1.009.3630, MASTERmatic LUX M05 L - 1.009.3640, MASTERmatic LUX M45 L - 1.014.0280 3 Description of the product | 3.1 Intended use 3 Description of the product MASTERmatic Contra-angle handpiece M05 L (Mat. no. 1.009.3640) MASTERmatic Contra-angle handpiece M25 L (Mat. -
Page 11: Technical Specifications
Instructions for use MASTERmatic LUX M25 L - 1.009.3630, MASTERmatic LUX M05 L - 1.009.3640, MASTERmatic LUX M45 L - 1.014.0280 3 Description of the product | 3.2 Technical Specifications According to these regulations, the user is required: ▪ exclusive use of equipment that is operating correctly. ▪... -
Page 12: Startup And Shut Down
Dispose of and recycle the packaging appropriately in accordance with current packaging law, employing waste management / recycling companies. Comply with the comprehensive return system. KaVo has had its packaging licensed for this purpose. Please comply with the regional public waste-disposal system. - Page 13 Instructions for use MASTERmatic LUX M25 L - 1.009.3630, MASTERmatic LUX M05 L - 1.009.3640, MASTERmatic LUX M45 L - 1.014.0280 4 Startup and shut down | 4.1 Checking the amount of water 13 / 28...
-
Page 14: Operation
Instructions for use MASTERmatic LUX M25 L - 1.009.3630, MASTERmatic LUX M05 L - 1.009.3640, MASTERmatic LUX M45 L - 1.014.0280 5 Operation | 5.1 Attaching the medical device 5 Operation WARNING Rotating dental bur. Cuts, infection and burn injury. 4 Never push the press-button while the dental bur is rotating. -
Page 15: Removing The Medical Device
CAUTION Dental bur with damaged, worn or deformed shafts. A damaged product or damaged or NOT KaVo original components can injure patients, users or third parties. Injury hazard, dental bur may fall out during treatment. 4 Never use dental burs with damaged, worn or deformed shafts. -
Page 16: Removing The Dental Bur
Instructions for use MASTERmatic LUX M25 L - 1.009.3630, MASTERmatic LUX M05 L - 1.009.3640, MASTERmatic LUX M45 L - 1.014.0280 5 Operation | 5.4 Removing the dental bur CAUTION Defective chuck system. Injury hazard, dental bur may fall out during treatment. 4 Pull on the dental bur to check if the chuck system works properly and if the dental bur is firmly clamped. -
Page 17: Checking For Malfunctions And Troubleshooting
Malfunction or complete failure. 4 Do not use Vaseline or other grease or oil. 4 Spray a lint-free cloth with KaVo Spray and apply it to the O-rings on the coupling. 4 Press the O-ring between your fingers to form a loop. -
Page 18: Changing The Water Filter
LUX M45 L - 1.014.0280 6 Checking for malfunctions and troubleshooting | 6.2 Troubleshooting 4 Spray a lint-free cloth with KaVo Spray, apply it to the new O-rings and in- sert them in the recesses. 6.2.2 Changing the water filter WARNING Hazard from contaminated products. -
Page 19: Reprocessing Steps In Accordance With Iso 17664-1 / Iso 17664-2
Malfunction and material damage. 4 Reprocess in a washer disinfector or by hand only. KaVo recommends the following products based on the compatibility of the ma- terials. The microbiological efficacy must be ensured by the disinfectant manu- facturer and proven by an expert opinion. -
Page 20: Manual Reprocessing
Instructions for use MASTERmatic LUX M25 L - 1.009.3630, MASTERmatic LUX M05 L - 1.009.3640, MASTERmatic LUX M45 L - 1.014.0280 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.2 Manual Reprocessing 7.2 Manual Reprocessing WARNING Incomplete disinfection. -
Page 21: Manual Drying
7.2.3 Manual drying Use KaVo DRYspray for subsequent drying of the air, water and gear unit ducts. 4 Cover the medical device with the KaVo Cleanpac bag, and place it on the corresponding care adapter. 4 Hold the can vertically. -
Page 22: Pre-Cleaning
NOTE Please comply with the instructions for use of the washer disinfector. 4 In order not to affect the KaVo medical device, make sure that the product is dry on the inside and outside after completion of the cycle. 4 Remove any residual liquids with KaVoDRYspray. -
Page 23: Servicing With Kavo Spray
30 minutes of operation. 4 Remove the dental bur from the medical device. 4 Cover the medical device with the KaVo Cleanpac bag, and place it on the corresponding care adapter. 4 Press the spray key for 1 to 2 seconds. -
Page 24: Packaging
Instructions for use MASTERmatic LUX M25 L - 1.009.3630, MASTERmatic LUX M05 L - 1.009.3640, MASTERmatic LUX M45 L - 1.014.0280 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.5 Packaging NOTE End the chuck service mode. Option 1: Place the dental handpieces in the QUATTROcare PLUS 2124 A, close the front flap and start the service procedure. - Page 25 Instructions for use MASTERmatic LUX M25 L - 1.009.3630, MASTERmatic LUX M05 L - 1.009.3640, MASTERmatic LUX M45 L - 1.014.0280 7 Reprocessing steps in accordance with ISO 17664-1 / ISO 17664-2 | 7.7 Storage NOTE Comply with the expiry date of the sterilised items. 25 / 28...
-
Page 26: Optional Aids And Consumables
Nozzle needle 0.410.0921 Replacement filter 1.002.0271 Wrench for water filter 1.002.0321 O-ring 8.3x0.68 0.200.6120 KaVo CLEANspray 2110 P 1.007.0579 KaVo DRYspray 2117 P 1.007.0580 KaVo Spray 2112 A 0.411.9640 QUATTROcare plus Spray 2140 P 1.005.4525 Spray head INTRA (incl. nipple) 0.411.9911... -
Page 27: Terms And Conditions Of Warranty
24 months from the date of the invoice, subject to the following conditions: With regard to justified complaints KaVo grants warranty in the form of a free of charge repair or delivery of a replacement. Other claims of any kind whatso- ever, in particular with respect to compensation, are excluded.
