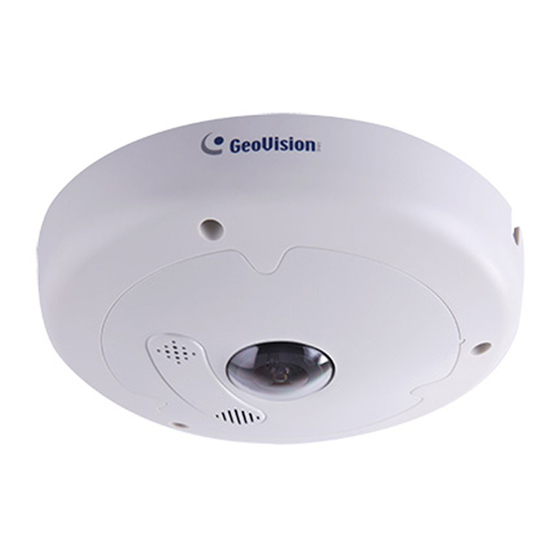

GeoVision GV-FEC5302 Quick Start Manual
  1. Manuals
  2. Brands
  3. GeoVision Manuals
  4. Security Camera
  5. GV-FEC5302
  6. Quick start manual

GeoVision GV-FEC5302 Quick Start Manual

Mygvcloud
Hide thumbs Also See for GV-FEC5302:
Table of Contents

Advertisement

Quick Links

Download this manual
myGVcloud
Quick Start Guide
• GV-FEC5302/5303
• GV-HCW120
• GV-MFDC1501
• GV-UBXC1301
• GV-UBLC1301
EN
myGVcloud-QG-I-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-FEC5302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-FEC5302

Summary of Contents for GeoVision GV-FEC5302

  • Page 1 Quick Start Guide • GV-FEC5302/5303 • GV-HCW120 • GV-MFDC1501 • GV-UBXC1301 • GV-UBLC1301 myGVcloud-QG-I-EN...
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    Connecting the Camera ............... 8 GV-MFDC1501 ..................9 Camera Overview ................9 Connecting the Camera ............... 9 GV-FEC5302 / 5303................10 Camera Overview ................10 Connecting the Camera ..............10 Connecting PoE Converter for GV-FEC5303 ........11 Running myGVcloud CamWizard............13 Accessing myGVcloud Portal ..............

  • Page 4: Important Notes

    Important Notes Note for Memory Card A memory card must be detected in the GV-Cloud Camera in order to store recordings to cloud storage. The supplied micro SD card is provided as a complimentary item without warranty. Mind the following when using a memory card for recording: a.

  • Page 5: Note For Gv-Fec5303 Ir Led Ring

    Note for GV-FEC5303 IR LED Ring Before handling GV-FEC5303, be cautious that an operating IR LED ring may reach high temperatures of up to 60°C (140°F). Disconnect the power supply and allow the IR LED ring to cool down before handling the device.

  • Page 6: Introduction

    Introduction You can remotely access your GV-Cloud Cameras from PC, mobile devices, Smart TV.

  • Page 7: Gv-Hcw120

    GV-HCW120 Camera Overview Connecting the Camera...

  • Page 8: Connecting To Wired Network

    Connecting to Wired Network Connecting to Wireless Network WiFi Router with WPS Press the WPS button on the router for a few seconds. Press the WPS button on the camera for a few seconds. The LAN LED will flash blue, and then turn into a solid blue.

  • Page 9: Gv-Ubxc1301

    GV-UBXC1301 Camera Overview Microphone Audio out Micro SD card slot Default Status LED DC 5V Terminal block Power LED LAN / PoE Connecting the Camera...

  • Page 10: Gv-Ublc1301

    GV-UBLC1301 Camera Overview Connecting the Camera...

  • Page 11: Gv-Mfdc1501

    GV-MFDC1501 Camera Overview Connecting the Camera...

  • Page 12: Gv-Fec5302 / 5303

    Insert the supplied micro SD card. Power adapter: Power over Ethernet (PoE): for GV-FEC5302, plug connect GV-FEC5302 / 5303 to a in the power adapter PoE switch with a standard and connect a standard network cable to supply power network cable.

  • Page 13: Connecting Poe Converter For Gv-Fec5303

    Connecting PoE Converter for GV-FEC5303 For GV-FEC5303 to have PoE function, it is required to install the PoE Converter and IR LED ring as illustrated below. Connect the PoE converter to a PoE switch with a standard network cable. Use the RJ-45 connector on the left. Connect the PoE converter and the camera with the supplied network cable.
  • Page 14 IMPORTANT: Due to limited space inside the PoE converter, use a standard network cable without the rubber boot. It is advised to shorten the IR LED ring’s wire to approximately 20 cm for it to fit inside the PoE converter. 20cm...

  • Page 15: Running Mygvcloud Camwizard

    Running myGVcloud CamWizard 1. Dow nload myGVcloud CamWizard from this link: http://www.geovision.com.tw/myGVcloud/download.asp Unzip the downloaded file, and double-click Setup to run myGVcloud CamWizard. When the Wizard appears, click Next to search GV-Cloud Cameras on the network.
  • Page 16 Select a camera. Click Next. When the message pops up, click Yes to skip the advanced network settings.
  • Page 17 Create a username and password for the camera’s Web interface. Click Next. IMPORTANT: You will need this information to access the Web interface of the camera. If you forget the username and password, you will need to reset your camera to factory defaults. 7.
  • Page 18 9. C lick Next to complete the setup process. An e-mail with a confirmation link will be sent to your e-mail account. 10. Cl ose the Wizard. 11. Check your e-mail and click the confirmation link to activate your myGVcloud account.
  • Page 19 12. After the account is activated, you will be directed to the login page of myGVcloud Portal. You can also access myGVcloud Portal by typing https://www.mygvcloud.com/Login.php in a Web browser.

  • Page 20: Accessing Mygvcloud Portal

    Accessing myGVcloud Portal You can use one of the following Web browsers to access myGVcloud Portal:  Internet Explorer 10.0 or later  Microsoft Edge 25 or later  Mozilla Firefox 21.0 or later  Safari 6.0.5 or later (Mac only. Safari for Windows is not supported.) ...

  • Page 21: Accessing Live View

    When logging in myGVcloud for the first time, you will be prompted to allow plugin installation. Click to allow installation of Add-on and ActiveX components. Depending on the security setting of your browser, you may need to repeat this process more than one time. For IE users, you may need to change the security settings to install ActiveX.

  • Page 22: Playing Back Videos

    Playing Back Videos To retrieve recorded motion events, first make sure the SD card is inserted into the camera. Playing Back from Event List To play back from an event list, click the Remote Playback tab. Under Query, select a Start Time and an End Time. 3.
  • Page 23 To play back video, select the check boxes next to the time of the videos, and click the Play button...
  • Page 24 Playing Back from a Timeline To play back the recorded motion events from a timeline, click the Timeline (Cloud) tab and select a time. This function is only supported for retrieving events from cloud storage. You can click All day summary to see events recorded through the selected day.

  • Page 25: Using Gv-Cloudeye

    Using GV-CloudEye Supported Operating Systems:  Android 5.0 ~ 11  iOS 9.0 ~ 16.1 In Google Play or Apple Store, search and install GV-CloudEye on your mobile device. You can also scan the QR codes below. iOS A ndroid...
  • Page 26 the GV-CloudEye icon 2. Tap on the desktop of your mobile device. Type the ID and password of your myGVcloud account, and tap Login. The main screen of GV-CloudEye appears.
  • Page 27 5. Tap to see the live view in single view. Playback Connection Status 2017/06/14 16:10:14 Snapshot Microphone Mute Setting 6. Tap the Playback icon on the top-right corner and tap an event to play back video. For details, see Chapter 5 GV-CloudEye in myGVcloud User’s Manual.

  • Page 28: Using Mygvcloud Camviewer

    Using myGVcloud CamViewer 1. Dow nload myGVcloud CamViewer from this link: http://www.geovision.com.tw/myGVcloud/download.asp Unzip the downloaded file, and double-click myGVcloudCamViewer_Install.exe to install the program. On your PC desktop, double-click the myGVcloud CamViewer icon, type the login information of your myGVcloud account and click OK.
  • Page 29 In the camera list, click a camera to access its live view. To look up events recorded upon motion detection, click the Event button . The event list appears on the right.
  • Page 30 In the main screen of myGVcloud CamViewer, you can also look up recorded events from all connected cameras by clicking Events under Notification. For details, see Chapter 4 myGVcloud CamViewer in myGVcloud User’s Manual.

  • Page 31: Using Mygvcloud Camapp Tv On Android

    Using myGVcloud CamApp TV on Android Supported Operating Systems:  Android TV 5.0 or later 1. S earch for myGVcloud CamApp TV in Google Play Store. 2. I nstall myGVcloud CamApp TV on your Android smart TV. 3. S elect myGVcloud CamApp TV icon on the main menu of your Android smart TV.
  • Page 32 5. S elect Multiple Live Views, Single Live View, Latest Events or Setting on the left-side menu for live view, playback or logging off the app. For details, see Chapter 7 myGVcloud CamApp TV (Android TV) in the myGVcloud User’s Manual.

  • Page 33: Using Mygvcloud Camapp On Ios

    Using myGVcloud CamApp on iOS Minimum System Requirements:  Fourt h-generation Apple TV  tvOS 9.2 or later 1. S earch for myGVcloud CamApp in App Store. 2. I nstall myGVcloud CamApp on your Apple TV. 3. S elect myGVcloud CamApp icon on the main menu of your Apple TV.
  • Page 34 Select Multiple Live Views, Latest Events or Settings on the menu above for live view, playback or logging off the app. On the menu above, select Latest Events and select any camera to play back its latest recordings. For details, see Chapter 8 myGVcloud CamApp (Apple TV) in the myGVcloud User’s Manual.

  • Page 35: Using Mygvcloud Camapp On Windows 10

    Using myGVcloud CamApp on Windows 10 Minimum System Requirements:  W indows 10  CPU with Intel Sandy Bridge i3 2100, 3.1 GHz  RAM with 2 GB  GPU on Graphics Card with DirectX11 Note: myGVcloud CamApp (Windows 10) is not supported by Windows 10 mobile devices.
  • Page 36 The cameras associated with the myGVcloud account are listed in the Camera List on the left. To access camera live view, drag the cameras from the Camera List to the live view grid. For details, see Chapter 9 myGVcloud CamApp (Windows 10) in the myGVcloud User’s Manual.

  • Page 37: Streaming Camera Live View On Youtube

    Streaming Camera Live View on YouTube To enable live streaming, click the Cloud Service tab in myGVcloud Portal, enable Live stream sharing, and click Save. Log in your YouTube account, click the Create icon and select Go live.
  • Page 38 On the welcome page to Live control room, select Start for Right now, and then GO for Streaming software. 4. S elect the Manage icon, and then select SCHEDULE STREAM. Specify the necessary information for your new stream. Click CREATE STREAM.
  • Page 39 Make sure to disable the Enable Auto-stop setting, and enable the Enable DVR and 360° video settings. The Stream key and Stream URL are now available for use. IMPORTANT: In Step 4, do not select the Stream icon to set up the live stream.
  • Page 40 Copy and paste the Stream key and Stream URL from YouTube to myGVcloud Portal. Click Save on myGVcloud Portal. The live video stream of GV-VR360 is now viewable to you in the preview window on YouTube. 8. C lick GO LIVE to begin streaming, and END STREAM to end streaming.
