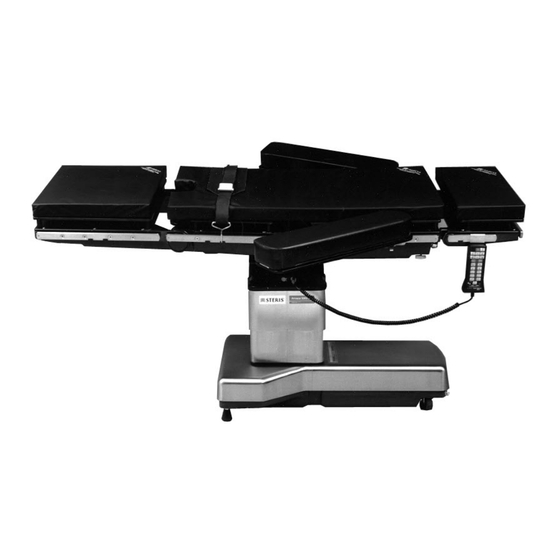

Amsco® 3085 SP
Surgical Table
Operator Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Amsco 3085 SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steris Amsco 3085 SP

Summary of Contents for Steris Amsco 3085 SP

  • Page 1 Amsco® 3085 SP Surgical Table Operator Manual 150830353 Revision AB...
  • Page 2 © 2023 STERIS. All rights reserved. Published: 2023-3-30 150830353_AB Amsco® 3085 SP Surgical Table Operator Manual...
  • Page 3 Complete instructions for uncrating have been furnished. If missing, contact STERIS for a replacement copy, giving the serial and model numbers of the table. STERIS carries a complete line of accessories for use with this table. Contact STERIS for more information.
  • Page 4 Comprehensive instructions for monthly, quarterly and semi-annual preventive maintenance can be found in the Maintenance Manual (available from STERIS). Only STERIS-trained personnel should attempt to perform maintenance on the table, to avoid personal injury, improper equipment performance, invalidation of the equipment warranty or other costly damage. Contact STERIS for additional information on available training programs for biomedical staff.
  • Page 5 Contact Information Manufactured by: STERIS Corporation 2720 Gunter Park East Montgomery, AL 36109 USA TEL: 334 277 6660 8004449009 www.steris.com Class 1 Equipment Type B Equipment Splash-Proof Equipment (enclosed equipment protected against splashing water, IPX4) Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or oxygen or nitrous oxide.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Section Number Description Page Safety Precautions and Pinch Points ....................1 Introduction........................1 Warning — Pinching Hazard ..................1 Warning — Tipping Hazard ................... 3 Warning — Explosion Hazard ..................4 Warning — Tripping Hazard..................4 Warning — Personal Injury Hazard ................4 Warning —...
  • Page 7 Floor Lock LED Does Not Light — nonALM ............... 63 Green ON LED Flashing — ALM.................. 63 Hand Control Issues — nonALM................. 63 No Override Switch Operation — nonALM ..............64 7.10 Only Green Battery LED ON — ALM................64 7.11 Red Battery LED Flashing, Green AC LED ON —...

  • Page 8: Safety Precautions And Pinch Points

    Any maintenance performed on this Surgical Table, other than described in the manual (unless by authorized representatives of STERIS), shall be at the risk of invalidating the table warranty. NOTE: Disregarding the presented safety information is considered ABNORMAL USE of this product.
  • Page 9 1 — Safety Precautions and Pinch Points Figure 1-1. Pinch Points 150830353_AB Operator Manual Amsco® 3085 SP Surgical Table...

  • Page 10: Warning Tipping Hazard

    Do not use the Fem/Pop Board with X-ray Tops for bariatric patients. Foot Extension Accessory or combination of Foot Extension and Headrest Accessories from previous design STERIS tables must not be used for reverse orientation on the 3085 SP Table.

  • Page 11: Warning - Explosion Hazard

    1 — Safety Precautions and Pinch Points Fem/Pop Board must be installed into leg section only. Board must be used to support the legs only. It is not intended to support upper body weight. Do not use the Fem/Pop Board with patients exceeding 400 lb (181 kg). 1.4 Warning —...
  • Page 12 If an antistatic path is necessary, STERIS recommends antistatic pads (specifically developed for this table) in direct contact with the patient. STERIS recommends that the table be positioned on antistatic floor or connected to equalization device (equipotential connector).
  • Page 13 1 — Safety Precautions and Pinch Points Repairs and adjustments to this equipment must be made only by STERIS or STERIS- trained service personnel. Maintenance performed by unqualified personnel or installation of unauthorized parts could cause personal injury, result in improper equipment performance, invalidate the warranty or result in costly damage.

  • Page 14: Warning Instability Hazard

    Stabilize table when transferring patient. Possible patient or user injury, as well as table or accessory failure, may result from using STERIS table accessories for other than their stated purpose - or from using, on STERIS tables, accessories manufactured and sold by other companies.

  • Page 15: Warning Infection Hazard

    1 — Safety Precautions and Pinch Points Storing items on table base may result in equipment damage causing inadvertent tabletop movement placing patient and/or user at risk of personal injury. DO NOT use table base for storage. 1.10 Warning — Infection Hazard WARNING INFECTION HAZARD To protect against aerosols being reflected from contaminated surfaces, wear...

  • Page 16: Warning - Electric Shock Hazard

    Computer Motion. The use of incorrect hydraulic oil may severely damage the table and/or cause malfunction. Contact STERIS for the proper oil to use. For ORCS equipped tables, use the HERMES®-Ready or ACT Enabled 3085 SP hand control with the blue strain relief on the plug.
  • Page 17 1 — Safety Precautions and Pinch Points During some extreme articulations, the tabletop may contact the base and/or column shrouds. Take care to avoid positioning the table in such a way as to cause damage to the shrouds. Use caution when raising the seat section or back section while the kidney bridge is elevated.
  • Page 18 Failure to keep all personnel and equipment clear of the table before actuating any inertia-driven or power-driven movement could result in table damage. Do NOT pressure clean the AMSCO 3085 SP Surgical Table. To prevent power supply LED damage (if equipped) when installing power supply, observe necessary clearance between base and LEDs.
  • Page 19 Before field-resetting of voltage switches, disconnect table from any external ac power source. Use of incorrect hydraulic oil may severely damage the table and/or cause malfunction. Contact STERIS for proper hydraulic oil. 150830353_AB Operator Manual Amsco® 3085 SP Surgical Table...
  • Page 20 1 — Safety Precautions and Pinch Points Surgical Table operation may be temporarily affected if portable or mobile RF communications equipment is used in close proximity. Medical Electrical Equipment needs special precautions regarding EMC. Put table into service according to the EMC information provided in this manual. Possible EMC increased EMISSIONS or decreased IMMUNITY.

  • Page 21: Glossary And Symbols

    2 — Glossary and Symbols Glossary and Symbols 2.1 Terms and Definitions Accessories — Optional surgical procedure devices attaching to the Surgical Table usually at the Side Rails. ABS — Acrylonitrile Butadiene Styrene. Auxiliary (Override) Control Panel — This control panel can be actuated at any time and allows Surgical Table operation in the event of primary control malfunction.

  • Page 22: Definition Of Symbols On Table

    2 — Glossary and Symbols Tabletop — Four section (head, back, seat, and leg) interlocking top supported by the Table Column and mobile Table Base. Tilt — Lateral Tilt, movement of the Tabletop laterally. Trendelenburg — Lowering of Tabletop head section toward the floor. TLT Pads —...
  • Page 23 2 — Glossary and Symbols Powered by AC Powered by Battery Battery Charged Battery Down Optional HERMES-Ready System Installed Floor Lock (Function Touch Pad) Floor Lock: Lock Floor Lock: Unlock Patient Orientation (Function Touch Pad) Normal Orientation 150830353_AB Operator Manual Amsco®...
  • Page 24 2 — Glossary and Symbols Reverse Orientation Trendelenburg Reverse Trendelenburg Height Up (Raise) Height Down (Lower) Tilt Left Tilt Right Back Up Back Down Leg Up Leg Down Flex 150830353_AB Amsco® 3085 SP Surgical Table Operator Manual...
  • Page 25 2 — Glossary and Symbols Reflex Level 150830353_AB Operator Manual Amsco® 3085 SP Surgical Table...

  • Page 26: Important User Information

    3 — Important User Information Important User Information 3.1 Patient Positioning and Weight Limitation This section includes the following: Introduction Prevent Possible Tipping For Reverse Patient Positioning Other Considerations WARNING TIPPING HAZARD ● Do not place patient on the table unless floor locks are engaged. ●...
  • Page 27 Do not attempt to move table while patient is on it. Do not extend (lengthen) the patient support surface beyond that shown, unless using a STERIS table accessory intended for this purpose and the accessory weight limitation is not exceeded.
  • Page 28 400 lb (181 kg) patient weight. ● Foot Extension Accessory or combination of Foot Extension and Headrest Accessories from previous design STERIS tables must not be used for reverse orientation on the 3085 SP Table. When performing surgery requiring a headrest accessory in a reversed patient orientation, do not exceed 400-lb (181 kg) patient weight limit.

  • Page 29: General Description

    3 — Important User Information Other Considerations WARNING PERSONAL INJURY HAZARD: ● Healthcare professionals must ensure patients are positioned and monitored so as to prevent compromising respiration, nerve pathways, or circulation. ● There is a 1,000-lb (452-kg) patient weight limit if patient is in normal orientation and a 500-lb (226-kg) patient weight limit if patient is in reversed orientation;...

  • Page 30: Technical Specifications

    Each Surgical Table is shipped from the factory configured to the electrical requirement specified on the factory order. If required to be changed in the field, consult STERIS for the procedure/materials required. Tables intended to be shipped to other than USA or Canada have procedure/materials included in shipping container.
  • Page 31 3 — Important User Information CAUTION POSSIBLE EQUIPMENT DAMAGE Appropriate components of this Surgical Table have been tested and found in compliance with IEC 60601-1-2:2001, Medical Electrical Equipment - Part 1; General Requirements for Safety; Electromagnetic Compatibility (EMC). There is, however, a potential for electromagnetic or other interference between this equipment and other devices.

  • Page 32: Installation Instructions

    NOTE: Patient grounding post/potential equalization terminal (male connector, DIN 42801) is provided. Mating female connector is not furnished by STERIS. 150830353_AB Amsco® 3085 SP Surgical Table...

  • Page 33: Install And Route Power Cord

    4 — Installation Instructions IMPORTANT: Before connecting the Surgical Table to your ac power system, ensure table internal voltage switches are set for your power system (100, 120, 220, or 230/240). IMPORTANT: Battery powered Surgical Tables should be completely charged prior to initial operation. Charge batteries as indicated in Section 8.5, Battery Charging Procedure, before proceeding.
  • Page 34 4 — Installation Instructions Introduction Hand Control Interchangeability Standard 3085 SP Tables Hand Control Operating Room Control System (ORCS) Hand Control Lock Table in Place Introduction Use the following information to learn about hand control interchangeability, connect the hand control plug to the proper table receptacle, and lock the Surgical Table in place.
  • Page 35 4 — Installation Instructions Standard 3085 SP Tables Hand Control CAUTION POSSIBLE EQUIPMENT DAMAGE ● For ORCS equipped tables, use the HERMES®-Ready or ACT Enabled™ 3085 SP hand control with the blue strain relief on the plug. The standard 3085 SP hand control has a red strain relief on the plug.
  • Page 36 4 — Installation Instructions Operating Room Control System (ORCS) Hand Control CAUTION POSSIBLE EQUIPMENT DAMAGE ● For ORCS equipped tables, use the HERMES®-Ready or ACT Enabled™ 3085 SP hand control with the blue strain relief on the plug. The standard 3085 SP hand control has a red strain relief on the plug.
  • Page 37 4 — Installation Instructions Figure 4-4. Standard Hand Control 2. Press FLOOR LOCK Function button in center row of control buttons, and within five seconds press LOCK button (to the left of FLOOR LOCK button, see Figure 4-4. Table is locked in position as floor locks are lowered and casters are raised.

  • Page 38: Pads And Accessories

    INSTABILITY HAZARD Possible patient or user injury, as well as table or accessory failure, may result from using STERIS table accessories for other than their stated purpose - or from using, on STERIS tables, accessories manufactured and sold by other companies.
  • Page 39 4-6). 2. To remove, peel away from tabletop. X-Ray Top Accessory A four-section X-Ray top accessory is available from STERIS for use with Amsco 3085 SP tables (see Figure 4-7). Each of the top sections has two types of standoff spacers. The shorter spacers rest on the tabletop; the longer, spring loaded spacers (which secure the X-Ray top) fit into tabletop mounting holes.
  • Page 40 4 — Installation Instructions Figure 4-8. X-Ray Top Spring Clips and Standoffs Perform the following for each X-Ray top section: 1. Loosen screws securing spring-loaded spacers to X-Ray top section. Position section on table. 2. Rotate spacers so spring clips are in line when viewed from beneath tabletop (see Figure 4-8).
  • Page 41 (socket). NOTE: Clamp (socket) may also be removed from end of side rail by raising gravity stops. Refer to Accessories Specific to Amsco 3085 SP Tables for special accessories that have been developed specifically for use with this Surgical Table.
  • Page 42 (Limited to 400-lb [181 kg] patient load.) The following special accessories have been developed specifically for use with the Amsco 3085 SP and Quantum 3080 tables. These accessories are not intended to be used with any other previous-design STERIS tables.
  • Page 43 4 — Installation Instructions Figure 4-10. Accessories* for Amsco 3085 Tables * Contact STERIS for ordering information. Refer to specific accessory descriptions for weight limitations. 150830353_AB Operator Manual Amsco® 3085 SP Surgical Table...

  • Page 44: Operating Instructions

    5 — Operating instructions Operating instructions 5.1 Attach Headrest and Orient Patient WARNING EXPLOSION HAZARD Table must not be used in the presence of flammable anesthetics. WARNING TIPPING HAZARD ● Do not place patient on the table unless floor locks are engaged. ●...
  • Page 45 5 — Operating instructions IMPORTANT: Control must be oriented as to the patient's position on table before any positioning functions are operable. When the table is turned on with the hand control, it will automatically activate in NORMAL patient orientation. The user can then select REVERSE orientation if desired. NOTE: Thumbscrews located under tabletop frame must be loosened before headrest can be attached or removed.

  • Page 46: Tabletop Positioning

    5 — Operating instructions Figure 5-2. Patient Orientation Figure 5-3. Hand Control 5.2 Tabletop Positioning This section includes the following: 150830353_AB Amsco® 3085 SP Surgical Table Operator Manual...
  • Page 47 5 — Operating instructions Introduction Hand Control Operation Optional Foot Control Operation Care of Controls When Not In Use Introduction NOTE: When quickly articulating the table through various repeated movements, the synchronization of the tabletop sections can get out of alignment and the hand control may stop functioning properly.
  • Page 48 5 — Operating instructions NOTE: Battery-powered tables should be switched OFF after each procedure to prevent unnecessary battery discharge. If low battery condition is indicated by the hand control LED, refer Section 8.5, Battery Charging Procedure. The table continues to function normally for at least 24 hours after the BATTERY DOWN LED (refer to Definition Of Symbols Section) first illuminates.
  • Page 49 5 — Operating instructions CAUTION POSSIBLE EQUIPMENT DAMAGE ● Hang hand control from side rail (or end rail) of table when not in use to avoid possible damage to the control. ● Route the hand control cord (and optional HERMES®- Ready or ACT Enabled™...
  • Page 50 5 — Operating instructions Figure 5-5. Hand Control 1. Press FLOOR LOCK Function button in center row of buttons on hand control and within five seconds (while LED is still ON), press desired Actuate button (LOCK or UNLOCK) adjacent to it. 2.
  • Page 51 5 — Operating instructions • Leg (LEG UP and LEG DN buttons) up 80° maximum (55° in REVERSE orientation) or down 105° maximum (25° in REVERSE orientation) from seat section. NOTE: FLEX and REFLEX position controls are disabled when in REVERSE patient orientation. •...
  • Page 52 5 — Operating instructions CAUTION POSSIBLE EQUIPMENT DAMAGE ● Route the hand control cord (and optional HERMES®- Ready or ACT Enabled™ interface cord and/or optional foot control cord, if applicable) clear of any pinch points where the cord(s) could be damaged. ●...
  • Page 53 5 — Operating instructions Figure 5-7. Hand Control Figure 5-8. Foot Control 150830353_AB Operator Manual Amsco® 3085 SP Surgical Table...
  • Page 54 5 — Operating instructions 2. Connect foot control assembly to table by aligning foot control cord gray plug red dot with table gray receptacle red dot, and pushing plug into connected position (see Figure 5-9). NOTE: For foot control, note the following: a.

  • Page 55: Optional Operating Room Control System (Orcs) Operation

    5 — Operating instructions Figure 5-9. Foot Control Connection Care of Controls When Not In Use CAUTION POSSIBLE EQUIPMENT DAMAGE Hang the hand control from the side rail (or end rail) of the table when not in use, to avoid possible damage to the control. When not in use both during and between procedures, the hand control should be attached to the table side rail.
  • Page 56 A HERMES-Ready Interface System and a HERMES-Ready Hand Control are required for voice-activation of the HERMES-Ready Amsco 3085 SP table functions. IMPORTANT: Use the HERMES-Ready 3085 SP hand control with the blue strain relief. The standard 3085 SP hand control with a red strain relief tail on the connector does not connect to the HERMES- Ready table.
  • Page 57 5 — Operating instructions Figure 5-10. Patient Orientation Figure 5-11. Hand Control 2. Connect HERMES Interface System to HERMES-Ready 3085 SP table by aligning HERMES interface cord black plug red dot with red dot of black receptacle on HERMES-Ready table and pushing plug in to complete connection (see Figure 5-12).
  • Page 58 * HERMES-Ready is a registered trademark of Computer Motion. An ORCS (not provided by STERIS) and an ACT Enabled Hand Control are required for voice- and/or touch panel- activation of the ACT Enabled Amsco 3085 SP table functions.
  • Page 59 5 — Operating instructions NOTE: If the ORCS and the table hand control are actuated simultaneously, the hand control has priority. 1. The following must be completed before any ACT Enabled Voice-Activated positioning functions are operable: • Hand control connected (ACT Enabled unit with blue tail on connection). •...
  • Page 60 5 — Operating instructions Figure 5-14. Hand Control 2. Connect ORCS to ACT Enabled 3085 SP table by aligning ACT Enabled interface cord black plug red dot with red dot of black receptacle on ACT Enabled table and pushing plug in to complete connection (see Figure 5-15).

  • Page 61: Headrest Positioning

    INSTABILITY HAZARD Possible patient or user injury, as well as table or accessory failure, may result from using STERIS table accessories for other than their stated purpose - or from using, on STERIS tables, accessories manufactured and sold by other companies.
  • Page 62 5 — Operating instructions CAUTION POSSIBLE EQUIPMENT DAMAGE Use caution when raising the seat section or back section while the kidney bridge is elevated. The section may contact the elevated kidney bridge and damage the bridge and/or section. Kidney bridge elevation is manually adjustable up to a maximum height of 4" (101 mm) above the primary tabletop. Adjust the kidney bridge for desired elevation as follows: 1.

  • Page 63: Auxiliary Override Systems

    6 — Auxiliary Override Systems Auxiliary Override Systems 6.1 Introduction WARNING EXPLOSION HAZARD Table must not be used in the presence of flammable anesthetics. WARNING TIPPING HAZARD Do not articulate table with auxiliary override systems unless floor locks are engaged. WARNING PINCHING AND TIPPING HAZARD Patient injury may result if the operator of this table is not completely familiar with the...

  • Page 64: Articulation With Electric Pump Power Available

    6 — Auxiliary Override Systems 2. Table Hand Control. 3. ORCS commands (HERMES® or ACT Enabled™ System). 4. Foot Control (no override capability of other controls). 6.2 Articulation With Electric Pump Power Available WARNING PINCHING HAZARD Pinch points are created during extreme tabletop articulation. Carefully review the illustration in Section 6.2, Articulation With Electric Pump Power Available, before operating...

  • Page 65: Articulation With No Electric Pump Power Available

    6 — Auxiliary Override Systems Lift HEIGHT switch up to raise tabletop or press down to lower` tabletop; when desired position has been reached, release switch to automatically stop tabletop and lock it in position. • Side Tilt: 18° maximum to right or to left of horizontal. Lift SIDE TILT switch up to tilt tabletop away from yourself, or press down to tilt tabletop toward yourself;...

  • Page 66: Floor Lock Override Systems

    6 — Auxiliary Override Systems 5. Correct problem or have qualified service technician repair table before further use. Figure 6-2. Foot Pedal 6.4 Floor Lock Override Systems A floor lock override switch is located inside the manual pump pedal recess (see Figure 6-3).
  • Page 67 6 — Auxiliary Override Systems Figure 6-4. Foot Pedal 150830353_AB Operator Manual Amsco® 3085 SP Surgical Table...

  • Page 68: Troubleshooting

    If unable to correct the problem with the use of the included sections, or a problem occurs not described, please contact STERIS to arrange for a trained service technician to promptly place your equipment in proper working order. NOTE: When power supplies are operational and the table is plugged into an ac receptacle, the ON touch pad green LED and ac power green LED are ON.

  • Page 69: All Leds Are Off - Alm

    Hand Control (HC) does not physically plug into the Surgical Table. General Troubleshooting Additional Information Wrong HC. Standard HC has 6-pin connector and does 1. Verify HC. Attach correct HC. not fit HERMES®-Ready/ACT Enabled ™ Table (having 2. Contact STERIS. 18–pin connectors). 150830353_AB Operator Manual Amsco® 3085 SP Surgical Table...

  • Page 70: Cannot Turn Table On - Nonalm

    7.6 Floor Lock LED Does Not Light — nonALM Condition Floor Lock LOCK LED does not come ON. General Troubleshooting Additional Information Electrical system requires inspection. 1. Contact STERIS. 7.7 Green ON LED Flashing — ALM Condition Hand Control (HC) green LED is flashing. General Troubleshooting Additional Information Electric System Error.

  • Page 71: No Override Switch Operation - Nonalm

    2. Reset circuit breaker CB-3. 3. Reset circuit breaker CB-4. 4. Reset circuit breaker CB-1. 5. If problem persists, contact STERIS. 7.11 Red Battery LED Flashing, Green AC LED ON — ALM Condition Hand Control is ON, green AC LED is ON, and red BATTERY LED is flashing.

  • Page 72: Red Battery Led Flashing, Green Battery Led On - Alm

    The Surgical Table Return to Level feature is not working properly. General Troubleshooting Additional Information Electrical system requires inspection. 1. Contact STERIS. 7.14 Surgical Table Articulates With NO User Input — nonALM Condition Surgical Table articulated with NO input from Hand Control or override command.

  • Page 73: Surgical Table Does Not Articulate - Nonalm

    1. Replace power cord. Circuit breaker(s) tripped. 1. Circuit breaker CB-4 tripped — reset. 2. Circuit breaker CB-2 tripped — reset. 3. Contact STERIS. Electrical System malfunction. 1. Contact STERIS. 7.17 Table Lash Appears to be Excessive — nonALM Condition Table lash appears to be excessive.

  • Page 74: Routine Maintenance

    WARNING PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD ● Repairs and adjustments to this equipment must be made only by STERIS or STERIS- trained service personnel. Maintenance performed by unqualified personnel or installation of unauthorized parts could cause personal injury, result in improper equipment performance, invalidate the warranty, or result in costly damage.

  • Page 75: Cleaning Table

    8 — Routine Maintenance 5. Customer should maintain a record of all maintenance procedures performed on the table. 6. If a problem occurs, refer to Troubleshooting Section. 7. Preventive Maintenance and regular service must be performed according to the Maintenance Manual to comply with the requirements for essential performance and compliance with electromagnetic compatibility.
  • Page 76 • H2O2 (Hydrogen Peroxide) • Neutral Cleaners 2. The use of H2O2 + PAA (Hydrogen Peroxide + Peracetic Acid) is strongly discouraged for use on all STERIS products. 3. Always follow manufacturer instructions for concentrations and use of cleaning products.
  • Page 77 8 — Routine Maintenance • Prepare approved cleaning or disinfecting solutions as directed on product label. To ensure prolonged use of STERIS mattresses and pads, abide by following cleaning instructions: 1. Inspect mattress prior to and/or after use to check for mattress integrity.
  • Page 78 8 — Routine Maintenance WARNING PERSONAL INJURY HAZARD When cleaning/disinfecting table, do not use phenolics, which may cause patient skin burns if inadequately rinsed off, or alcohol, which does not have sufficient cleaning/ disinfection properties. CAUTION POSSIBLE EQUIPMENT DAMAGE ● When cleaning/disinfecting table, thoroughly read the cleaning fluid directions for use and follow all directions and cautions as shown.

  • Page 79: Bi-Weekly Maintenance

    At the end of each day, perform the cleaning procedures as outlined in After Each Usage. Weekly After each weekly use of the Amsco 3085 SP Surgical Table, clean/ disinfect table as follows: 1. Perform Steps 1 through After Each Usage.

  • Page 80: Monthly Maintenance

    Control batteries are recharged automatically when table is being used and do not require additional charging. 13. Available from STERIS. 14. All motor and control batteries are a sealed, lead-acid gel electrolyte-type, with a nominal life of one year. 150830353_AB Amsco®...
  • Page 81 WARNING PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD Repairs and adjustments to this equipment must be made only by STERIS or STERIS- trained service personnel. Maintenance performed by unqualified personnel or installation of unauthorized parts could cause personal injury, result in improper equipment performance, invalidate the warranty, or result in costly damage.

  • Page 82: Replacement Parts

    To order replacement parts, proceed as follows: 1. Include part number and description listed in Table 8-1. 2. Include model and serial numbers of your equipment on your order. 3. Send your order directly to STERIS. 150830353_AB Amsco® 3085 SP Surgical Table Operator Manual...
  • Page 83 8 — Routine Maintenance Contact STERIS if you need any parts not listed in Table 8-1. NOTE: Use only STERIS authorized parts on the equipment. Use of unauthorized parts voids the warranty. Table 8-1. Surgical Table Replacement Parts Description Recommended Spares...
  • Page 84 3. USA fuses are AGC or ABC or MTH, and are also for use in Canada. F1 and F2 are slo-blow. 4. IEC fuses are IEC glass fuses. IEC fuses for F3 require IEC fuseholder, STERIS part number P129360654. 150830353_AB Amsco®...

  • Page 85: Appendix

    9 — APPENDIX APPENDIX 9.1 EMC Compliance Technical Data This Surgical Table is designed for most surgical procedures with maximum radiological access without patient reversing. The Surgical Table is also designed to safely move patients within the surgical suite (from pre-operative area to operating room and from operating room to post-operative recovery).
  • Page 86 (per IEC 60601-2 Clause 6.8.3.201 a 3 Table 201) The Amsco 3085 SP Surgical Table and related components are intended for use in the electromagnetic environment specified below. The Customer or the user should ensure this Amsco 3085 SP Surgical Table is used in such an environment.
  • Page 87 IEC 60601-2 Clause 6.8.3.201 a 6 Table 202) The Amsco 3085 SP Surgical Table and related components are intended for use in the electromagnetic environment specified below. The Customer or the user should ensure this Amsco 3085 SP Surgical Table is used in such an environment.
  • Page 88 Are Not Life-Supporting (per IEC 60601-2 Clause 6.8.3.201 b Table 204) The Amsco 3085 SP Surgical Table and related components are intended for use in the electromagnetic environment specified below. The Customer or the user should ensure this Amsco 3085 SP Surgical Table is used in such an environment.
  • Page 89 If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Amsco 3085 SP Surgical Table. b: Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
  • Page 90 Amsco 3085 SP Surgical Table (per IEC 60601-2 Clause 6.8.3.201 b Table 206) The Amsco 3085 SP Surgical Table and related components are intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The Customer or the user can help prevent electromagnetic...
