Failure to comply with the SAFETY PRECAUTIONS could result in personal injury and/or equipment damage. Any alteration of the equipment not performed or authorized by STERIS will void the warranty. Such alterations may also adversely affect product safety and performance.
LIST OF FIGURES Description Page Figure 4-1 Access to Digital Timer or Sensor Junction Box for Non-Hazardous Area ........5 Figure 4-2 Connect Incoming Electric Supply Line in Junction Box for Non-Hazardous Area ....... 6 Figure 4-3 Dimensions............................7 Figure 4-4 Insert Air Supply Tube ........................8 Figure 4-5 Centerline Location of Dividers ......................

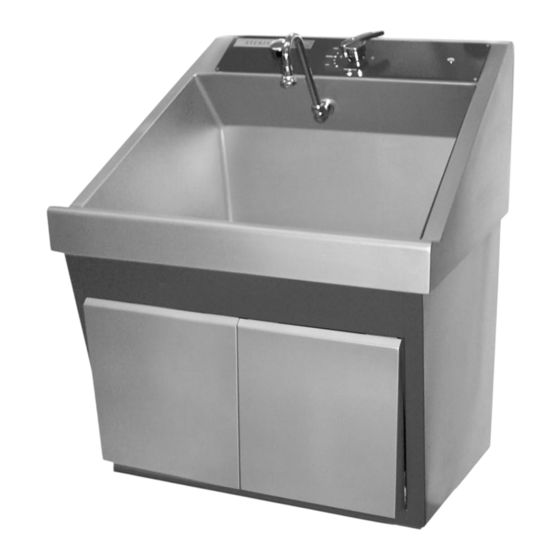

2 — Safety Precautions Safety Precautions The following Safety Precautions must be observed when operating or servicing the AMSCO® Flexmatic® Scrub Station. CAUTION indicates the potential for damage to equipment. For emphasis, certain Safety Precautions are repeated throughout the manual. It is important to review ALL Safety Precautions before operating or servicing the unit. WARNING EYE INJURY HAZARD Use cold water only with eyewash fixture.
The clearance space shown on the equipment drawing is required for proper installation, operation and maintenance of the scrub station. If any of these documents are missing or misplaced, contact STERIS, giving the serial and model numbers of the equipment. Replacement copies will be sent to you promptly.
1. Refer to the dimensions shown in the equipment drawing and, using the two support brackets (provided by STERIS) as templates, mark the location of the mounting holes on the wall. Secure the two brackets to the wall. (Fasteners are not provided by STERIS due to various wall constructions.) Verify brackets are level.
4 — Installation d. Place knee panel aside where it is safe from damage. e. Pass 120 V, 60 Hz, 1-phase electric supply line (wiring and conduit not provided or installed by STERIS) through back of scrub station. f. Remove two screws securing cover on junction box at left end of scrub station.
4 — Installation Figure 4-3. Dimensions e. Remove button plug located at the top of scrub station and install grommet in hole. f. Remove right knee panel located at the bottom front side of the scrub station by pushing upward at the bottom of the panel and then pulling outward.
4 — Installation Figure 4-4. Insert Air Supply Tube 6. Only for models with optional divider screen(s): a. Clean mounting surfaces with alcohol. b. Locate center lines as indicated in Figure Figure 4-5. c. Place rear holder 1/8" (1.6 mm) from rounded edge of sink (see Figure 4-5).
4 — Installation Figure 4-5. Centerline Location of Dividers g. Fasten the holders to the sink with three oval head screws (6-32 x 3/8) provided in kit. h. Thoroughly clean the divider screen and install it in the holders. NOTE: Step 7 through Step 9...
4 — Installation Figure 4-6. Installation of Splash Screen Holders 7. Refer to Figure 4-7 and secure the gooseneck spout assembly to the gooseneck adapter. Verify the washer is properly seated and the nut is tight. 8. Refer toFigure 4-7 and secure soap dispensing spout to tubing using special nut.
4 — Installation Figure 4-7. Secure Gooseneck Spout Assembly and Soap Dispensing Spout 9. Connect building water and waste lines as follows: NOTE: The following knee panel disassembly and assembly instructions apply to all knee panels (refer to Section 5.1, Check Soap Container).
4 — Installation 4.2 Installation Checkout After installing the scrub station, contact STERIS to schedule a technician to checkout and test the installation and to demonstrate operation. PS455125001_AB AMSCO Flexmatic Scrub Station Operator Manual ® ®...
5 — Operating Instructions Operating Instructions 5.1 Check Soap Container 1. Press latch block at bottom center of soap knee panel and lift up knee panel. 2. Inspect soap container. 3. If container needs to be replaced, proceed as follows: a.
5 — Operating Instructions 5.2 Dispensing Soap Press then release foot pedal or optional soap knee panel to dispense soap. The soap pump is set to dispense approximately 1.5 cc of soap each time it is actuated (see Figure 5-2). Figure 5-2.
5 — Operating Instructions 5.3 Set Thermostatically Controlled Mixing Valve 1. Activate water flow. 2. Position temperature selector handle to obtain desired water temperature. 3. Deactivate water flow. 5.4 Operating Water Control with Knee Panel 1. If AMSCO® Flexmatic® Scrub Station is equipped with digital timer, set digital timer power switch to ON. The colon between the minutes and seconds display starts to glow.
6 — Cleaning The Equipment Cleaning The Equipment 6.1 Weekly Optional Knee Operated Soap Dispenser 1. Press latch block at bottom center of soap knee panel and lift up knee panel. 2. Remove soap container from scrub station and position it next to a container of warm water. NOTE: In hard water areas, use softened or distilled water.
6 — Cleaning The Equipment 6.4 Maintenance of Wall-Mounted Soap Dispenser CAUTION POSSIBLE EQUIPMENT DAMAGE ● Do not autoclave. Alcohol solutions may damage the dispenser. ● Do not attempt to disassemble the dispenser metering valve itself. Assembly of the valve unit requires factory equipment.
When ordering replacement parts, please include the part numbers and descriptions listed subsequently. The quantities are those STERIS recommends the facility should keep on hand to meet minor maintenance needs for a single station. To hasten service, include on the order the model, unit and serial numbers of the equipment.
