Daktronics Sportsound SSR-200 Quick Start Manual

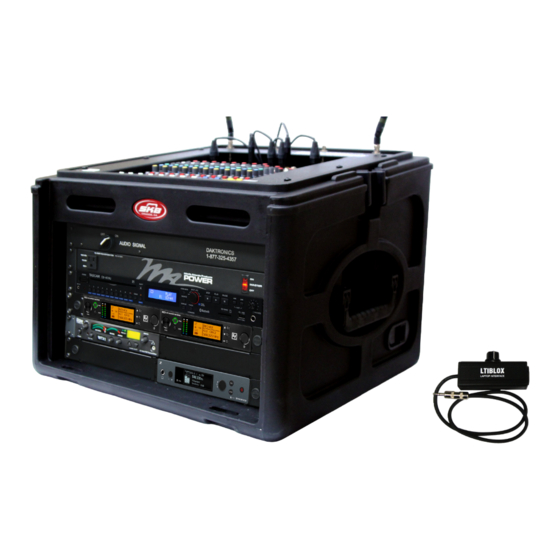

Sportsound SSR-200 Quick Start Guide
This guide will assist with starting up and operating a Sportsound
audio rack. For detailed operation, configuration, and troubleshooting,
refer to the Sportsound Rack SSR-200 Operation Manual
Startup
Before Beginning: Place the rack on a flat, sturdy surface. Remove the
cover pieces by twisting the knobs away from each other, and set them
aside. Accessories are located in a separate case.

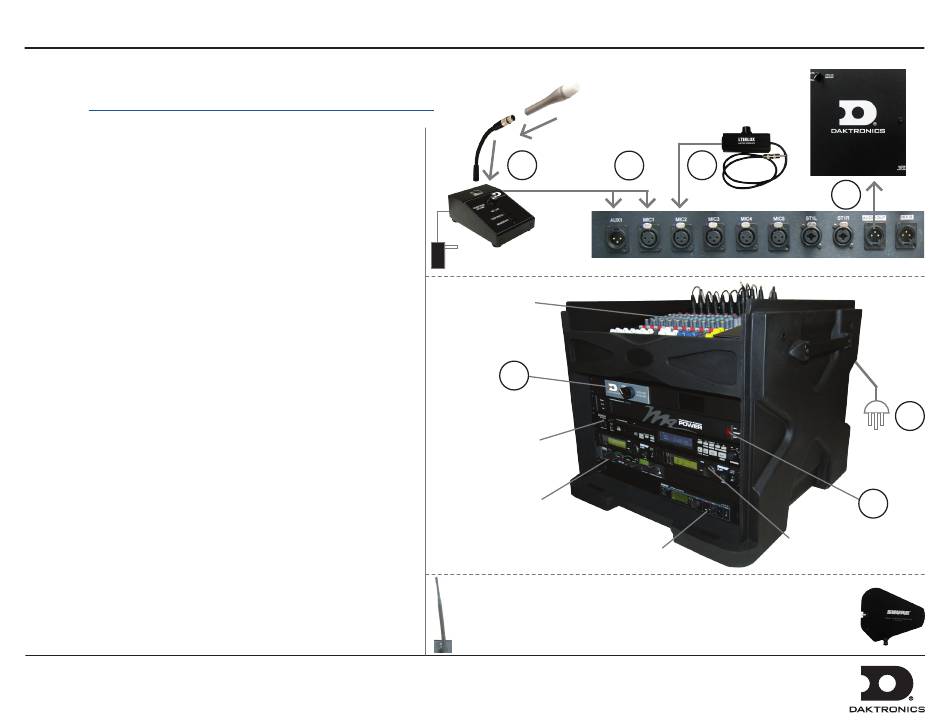

1. Connect one end of the XLR gooseneck to the wired microphone
and the other end into the jack on top of the announcer's interface.
Optional headset microphone may be plugged here instead.
2. Connect the 15' (4.6 m) XLR cable from MIC 1 & AUX 1 on the
announcer's interface to MIC 1 & AUX 1 on the rear of the rack.
3. Connect one end of the 5' (1.5 m) XLR cable to the LTIBLOX Laptop
Interface and the other end to MIC2. The 3.5 mm plug may be
connected to the headphone jack of a laptop or MP3 player.
4. Connect the 25' (7.6 m) XLR cable between the AUDIO OUT jack on
the rear of the rack and the SYSTEM AUDIO jack on the bottom of
the fiber box. If there is no fiber box, the cable will typically connect
to a wall plate junction box instead.
5. Locate the 3-prong power cord and plug into a standard outlet.
Ensure the announcer's interface and fiber box (if included) also
have power.
6. Turn on the power strip.
7. Switch the SOUND SYSTEM to ON.
Power Down
Follow the above steps in reverse order to power down the system.
Place all accessories in the storage case.
DD2298940 Rev 1
12 March 2014
SSR-200
®
(DD2298630).
Announcer's
Audio Mixer
CD Player
Hearing
Assist System
(optional)
Ensure all antennas are angled outward at ~45 ◦ . Alternately, coaxial
cable from the high gain antenna kit may be connected into ANT1 and
ANT4. The antennas should be located within 50' (15.2 m) of the rack,
using desktop stands or mounted to the ceiling.
