Sportsound SSR-200 Gen II Quick Start Guide
This guide will assist with starting up and operating a Sportsound
SSR-200 Gen II audio rack. For detailed operation, configuration, and
troubleshooting, refer to the Sportsound Rack SSR-200 Gen II Operation
Manual (DD3159816).

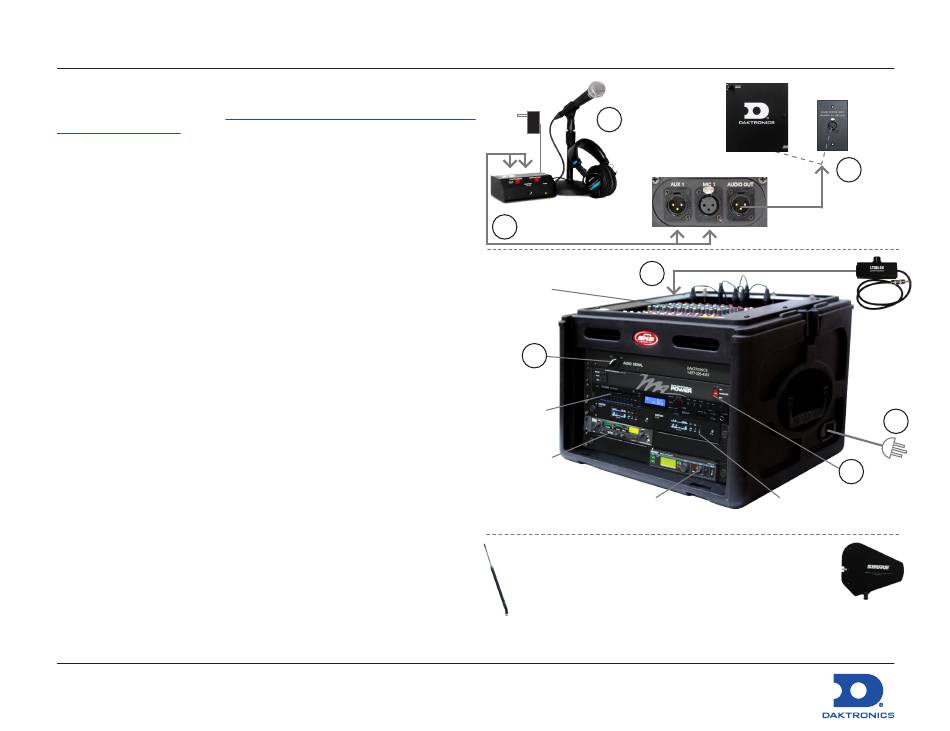

Setup

Place the rack on a flat, sturdy surface. Remove the cover pieces and
set aside. Accessories are located in a separate case.
1. Announcer's Interface setup is described below. Refer also to the
quick guide (DD3083838) shipped with the device.
a. Connect the 2' (610 mm) XLR cable between the microphone
and the MIC 1 INPUT jack.
b. Connect headphones to the 1/4" or 1/8" jack.
c. Connect the provided 12 VAC wallpack transformer to the
power input jack, and then use the tab above the power jack
as a strain relief for the power cord.
2. Connect the 15' (4.6 m) XLR cable from MIC 1 & AUX 1 on the
announcer's interface to MIC 1 & AUX 1 on the left side of the rack
(when viewing from the front).
3. Connect the 25' (7.6 m) XLR cable between the AUDIO OUT jack
on the left side of the rack and the SYSTEM AUDIO jack on the
bottom of the fiber box. If there is no fiber box, as in an indoor
audio system, the cable will typically connect to a wall plate
junction box instead.
4. Connect one end of the 5' (1.5 m) XLR cable to the LTIBLOX Laptop
Interface and the other end to an open MIC input on the mixer.
The 3.5 mm plug may be connected to the headphone jack of a
laptop or MP3 player.
5. Route the 3-prong power cord through the access hole in the
right side of the rack, and plug into a standard outlet. Ensure the
announcer's interface and fiber box (if included) also have power.
6. Turn on the power strip.
7. Switch the AUDIO SIGNAL to ON.
DD3159573
Rev 02
01 April 2019
®
Announcer's
2
Interface (Gen II)
Audio
Mixer
7
CD
Player
Hearing
Assist System
(optional)
Ensure all antennas are pointed up and angled
outward at ~45°. Alternately, coaxial cable from the
high gain antenna kit may be connected into WRX A
and WRX B. The antennas should be located within 50'
(15.2 m) of the rack, using desktop stands or mounted
to the ceiling.
201 Daktronics Drive Brookings, SD 57006
www.daktronics.com/support
800.325.8766
Fiber Box
1
(outdoor)
Side View
4
Personal Monitor
System (optional)
Page 1 of 5
Wall Plate
OR
(indoor)
3
Laptop
Interface
5
6
Wireless Mic
System
