Sportsound SSR-300 Quick Start Guide
This guide will assist with starting up and operating a Sportsound
the Sportsound Rack SSR-300 Operation Manual
documentation for the facility.

Setup

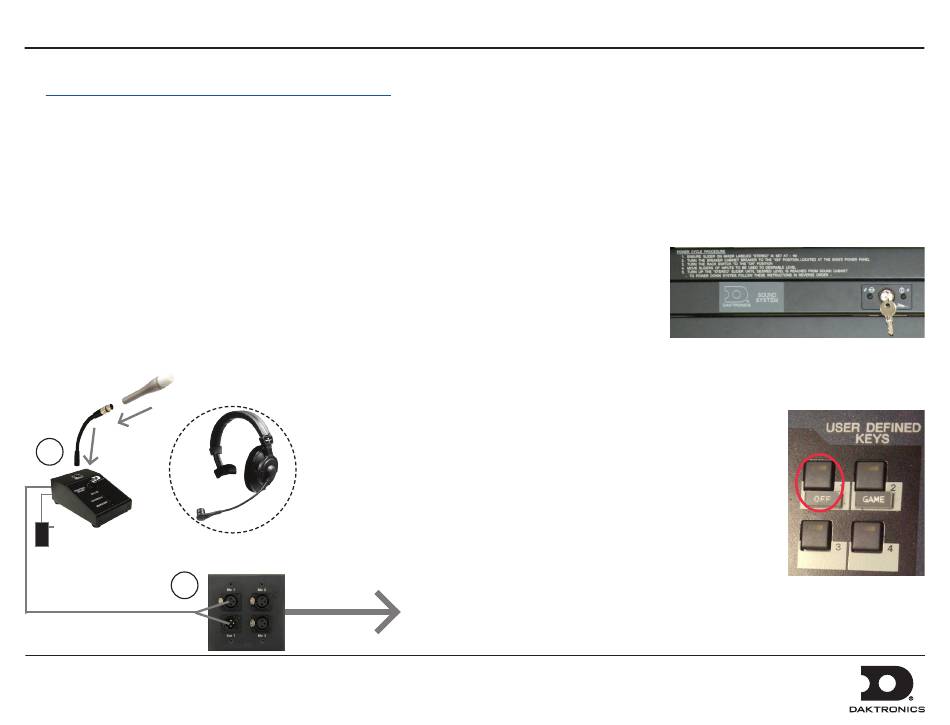

The announcer's interface equipment is typically kept in the bottom
storage drawers along with other accessories. Follow the steps below to
properly reconnect it to the rack.
1. Connect one end of the XLR gooseneck to the wired microphone
and the other end into the jack on top of the announcer's interface.
Also plug the wallpack transformer into a standard power outlet.
Note: The headset microphone may be connected to the announcer's
interface via the XLR jack and the HEADPHONES jack (on rear).
2. Connect the 15' (4.6 m) XLR cable (part # W-2074) from MIC 1 &
AUX 1 on the announcer's interface to Mic 1 & Aux 1 on the
announcer's plate.
1
Announcer's
Interface
2
Announcer's
Plate
DD2222144 Rev 2
05 March 2014
SSR-300 audio rack. For detailed operation, configuration, and troubleshooting, refer to
®
(DD2324779). Note that every project is unique, so be sure to follow any site-specific riser drawings and
27 RU Rack Only
For the 27 RU rack, there will be a 25' (7.6 m) or 50' (15.2 m) cable harness factory
wired to the rack. Route this cable to the desired mixer location and connect each
plug to the appropriate jack on the mixer according to the wire labels. Plug the mixer
into a standard power outlet.

Powering On

Unlock the door of the rack, and turn
the SOUND SYSTEM key switch to
the ON (vertical) position.
Note: Keep both sets of keys in a safe
location to prevent tampering/theft
of rack equipment!

Powering Down

1. Press the USER DEFINED KEY on mixer labeled OFF.
2. Turn the SOUND SYSTEM key switch to the OFF
(horizontal) position.
3. If the system will not be used for some time, unplug
the power cord.
4. Place all accessories back in the appropriate slots of the
storage drawers to keep them safe and organized.
5. Close and lock the rack door.
To Rack
