3
YEAR
In-Home
Warranty*

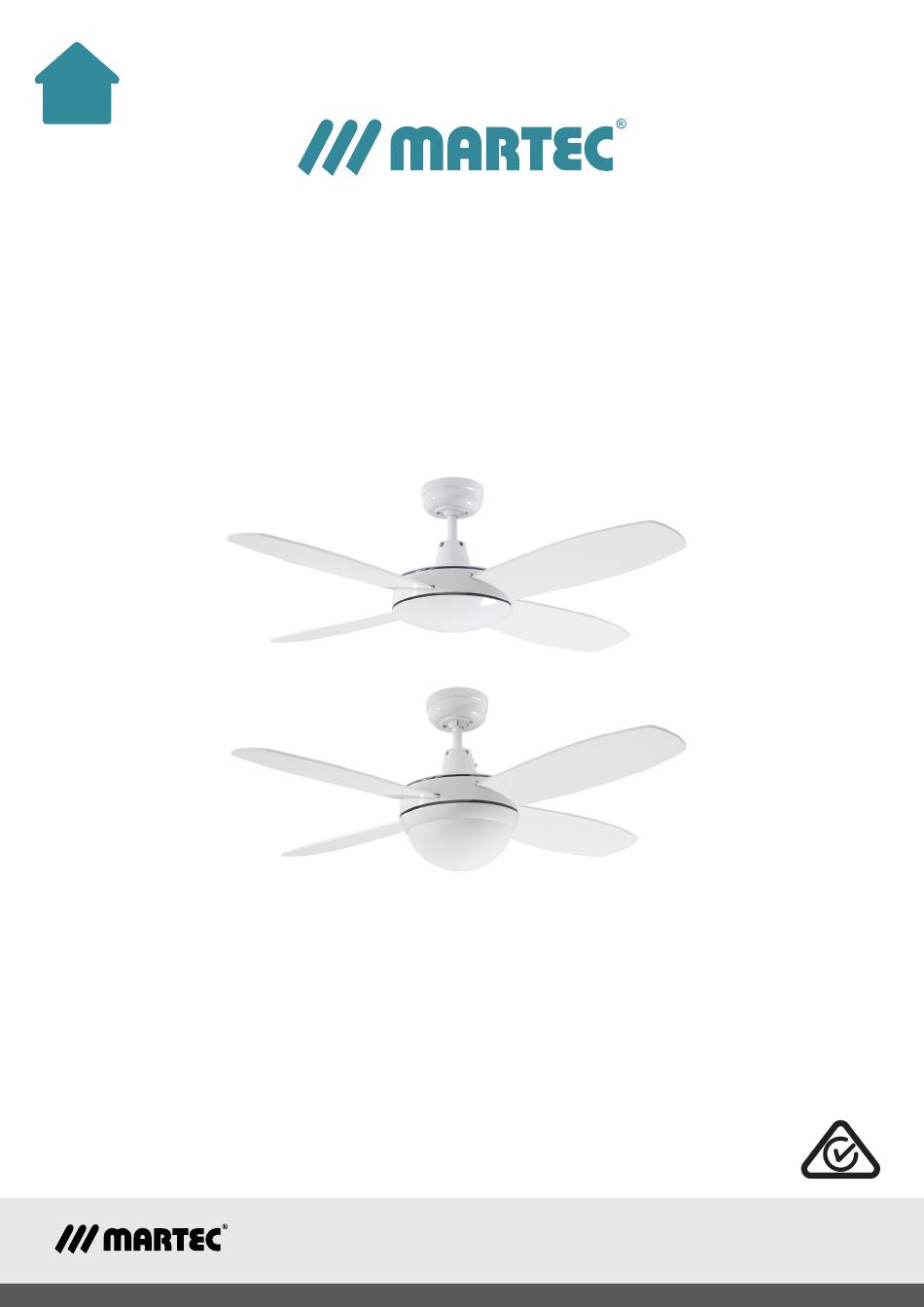

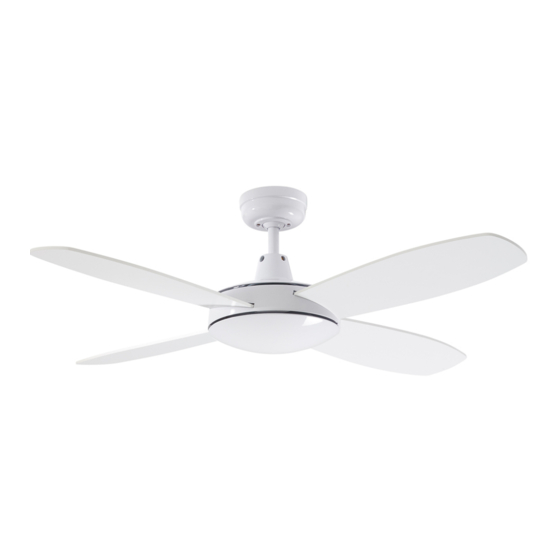

LIFESTYLE MINI
Ceiling Fan Instruction Book
Models: DLS104B, DLS104M, DLS104W,
DLS1043B, DLS1043M, DLS1043W,
DLS1044B, DLS1044M, DLS044W
REMOTE CONTROL ADAPTABLE SOLD SEPERATELY
REMOTE MODEL: MPREM, MPAPP (SMART REMOTE)
REFER TO MARTEC WEBSITE
WWW.MARTECAUSTRALIA.COM.AU
www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au
Page 1
Advertisement
Related Manuals for Martec LIFESTYLE MINI
Summary of Contents for Martec LIFESTYLE MINI
- Page 1 LIFESTYLE MINI Ceiling Fan Instruction Book Models: DLS104B, DLS104M, DLS104W, DLS1043B, DLS1043M, DLS1043W, DLS1044B, DLS1044M, DLS044W REMOTE CONTROL ADAPTABLE SOLD SEPERATELY REMOTE MODEL: MPREM, MPAPP (SMART REMOTE) REFER TO MARTEC WEBSITE WWW.MARTECAUSTRALIA.COM.AU www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au Page 1...
- Page 2 ONLY install the wall controller kit that comes supplied by Martec Pty Ltd within package. DO NOT control operation of fan and light with any other wall control than what was approved by Martec Pty Ltd and supplied within this package, as this will void warranty.
-
Page 3: Assembly Diagram
ASSEMBLY DIAGRAM Contents List: DESCRIPTION QUANTITY Motor assembly Instruction manual Screw kit Balancing kit Hanging bracket Wall control kit www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au Page 3... -
Page 4: How To Assemble
Secure the hanger bracket to ceiling beam or a suitable piece of timber inserted between the ceiling beams. Martec Pty Ltd recommends the bracket to be attached with two long screws as supplied within the package. There is a ball seat rubber cover need to be pressed into the bracket. (See Fig.1.) Place circular shockproof gasket above the hanger bracket. - Page 5 Models only STEP DIMMING The Martec Lifestyle fan has a smart 3 step dimming LED light module which doesn’t require a dimmable remote control or a wall dimmer. It only requires a normal on/off remote kit (MPREM) or a normal light wall switch (supplied as part of the wall controller in the box).
- Page 6 HOW TO REMOVE THE SHADE (Version with light) Remove the Lamp Shade carefully as shown (See Fig.7). Turn anticlockwise to remove and clockwise to tighten the lampshade. DLS1344B, DLS1344M, DLS1344W Models: 2 x E27 lamp holders only 2 x 10W (MAX) LED bulbs shall be used.
-
Page 7: Wiring Instructions
WIRING INSTRUCTIONS www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au Page 7... - Page 8 Martec Pty Ltd service network. The Martec Pty Ltd service network is defined at our discretion, yet is limited by the boundary of the city in which you live. Travel outside of the city limits by the Martec Pty Ltd authorised service agent will incur commercial costs to be paid for by the purchaser at a rate calculated by the number of kilometres travelled beyond the city limits.
- Page 9 NOTE: Stainless steel requires regular cleaning; “Tea Staining” is a common occurrence with all types of stainless steel. This is not considered a fault of the product and is not covered under warranty. Martec’s Precision 316, while made from Marine Grade 316 stainless steel, should only be used in a covered or enclosed outdoor environment as the fan is not hermetically sealed and will eventually rust internally.
- Page 10 ................................................................................. I, the Customer, hereby acknowledge that I have read and agree with the Martec Pty Ltd warranty statement and the conditions found within regarding the warranty service and its limitations. I, the Customer, acknowledge that Martec Pty Ltd reserves the right to charge me, the...
