User Manual
USB Type-C® to HDMI® 4K Adapter with
USB-C® 100W PD Charging & USB Type-A® port - Aluminum
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction

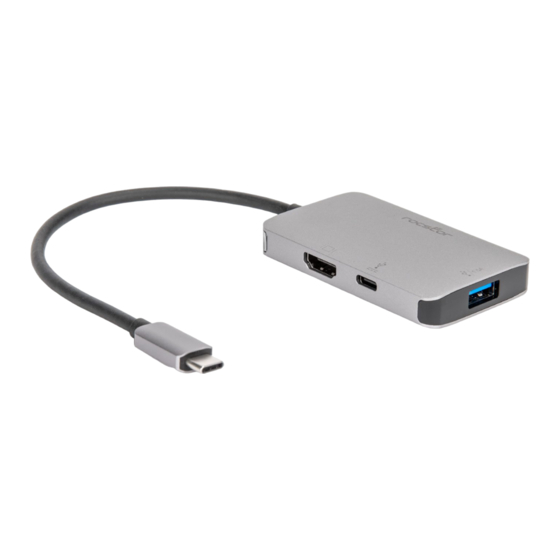

This is a premium Rocstor USB-C to USB 3.0, HDMI and Type-C data pr charging port
hub. This multiport adapter allows you to connect a USB device or another hub to the
host computer; the USB-C female port supports both PD charging and data; and the
HDMI port (DP Alt mode) allows you to connect an HDMI monitor so you can watch
videos or slideshows on a big screen. It is compatible with 2017 Macbook Pro or later,
Macbook and the Google Pixel Chromebook and other USB-C devices that supports
DP Alt mode.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• 1 x Main Unit
• User Manual
How to Use
1- Connect this multiport adapter the host computer (Macbook, Macbook Pro,
Chromebook or other USB-C devices).
2- Connect HDMI output of this product to HDTV with one HDMI cable.
3- Connect the USB-A of this product to a USB 3.0/2.0 device.
• When using the USB-C female port as a charging port:
Connect the USB-C charging port to USB-C Power Adapter (including PD Adapter),
it can charge for the host computer and support this adapter to work simultaneously.
• When using the USB-C female port as a data port:
Connect the USB-C output of this product to a USB-C device.
Note:
1• When the current of the connected USB device is higher than the above listed
current, the USB device will get disconnected while plugging the PD Adapter and
reconnect in a few seconds.
2• When working on PD 2.0 supported host PC, the connected USB-A device will get
disconnected while unplugging the Type-C PD Adapter and then reconnect in a few
seconds.
Supports Fast role swap of PD 3.0
The connected device will not get disconnected when plugging and unplugging the
multiport adapter when working on a PD 3.0 device.
Y10A265-A1
®
Features
Upstream:
USB Type-C Male
(Connect to a host computer)
Downstream:
Type-C Female
(for PD Charging)
• As USB-C upstream charging port
(connecting USB-C Power Adapter):
When connecting PD Adapter:
it supports PD Charging with power up
to 100W (20V/5A)
• When connecting ordinary USB-C
Power Adapter: the max power of this
port depends on how much power the
connected USB-C Power Adapter can
supply.
• As USB-C downstream port
(connecting USB-C device): It supports
to transmit data up to 5Gbps and charge
for the connected USB–C devices (the
total output of the USB-C and USB-A
port depends on the host PC, eg: USB-A
and USB-C share max 1.5A on Macbook,
max 900mA on Chromebook
Features
• High Power Conversion E ciency means low power consumption and low heating
98.2%@Vin=5V ； 92.5% @Vin=20V
• More Advanced Power Management. The power can guarantee uninterrupted working
of USB-A SSD and U Disk when the vin is in 9〜20V, so the connected USB device will
not get disconnected while plugging in and out the PD Adapter from the Type-C
charging port. Supported USB device current is as follows: 1.5A on PD 3.0 device
Note:
1• When the current of the connected USB device is higher than the above listed
current, the USB device will get disconnected while plugging the PD Adapter and
reconnect in a few seconds.
2• When working on PD 2.0 supported host PC, the connected USB-A device will get
disconnected while unplugging the Type-C PD Adapter and then reconnect in a
few seconds.
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Mechanical
Size (L-W-H)
Weight (Net)
Accessories
User Manual
System Requirement
Host computer with an available USB-C Port
- USB 3.0/3.1/3.2
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
USB-A X2
• Max 5Gbps data transmission per port
• USB 3.0 Supports max 7.5W
(5V/1.5A ) downstream charging port.
HDMI
• Supports HDMI resolution up to
4Kx2K@30Hz
USB Type-C Male x1
USB-C Male x1
HDMI Female x1
USB-C Female x1
(for data or Charging)
USB-A Femalex1
3 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
75x45x11.5mm - (2.9"x1.7"x0.4")
51.7g - (0.1lbs)
