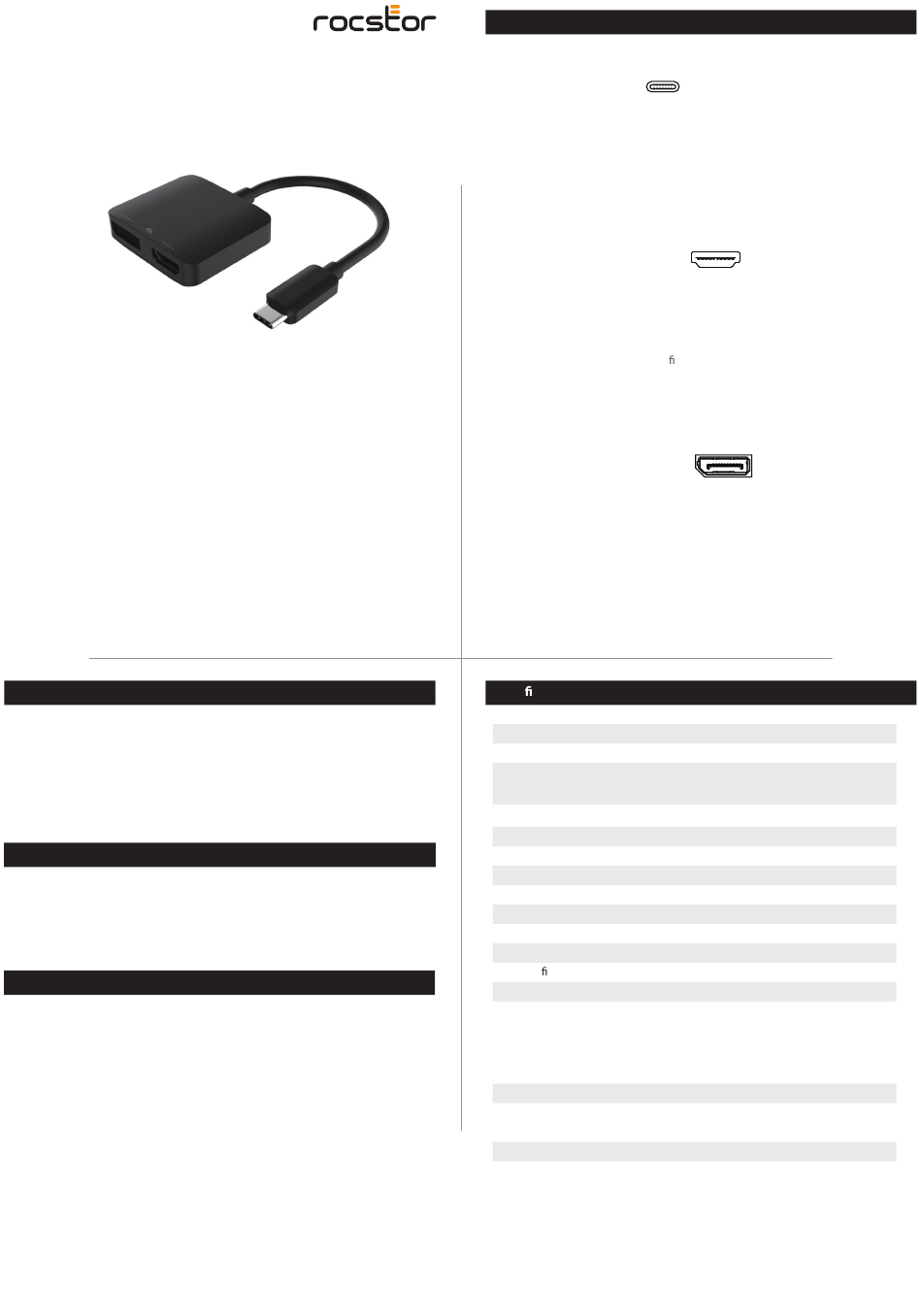

Rocstor Y10A268-B1 User Manual

USB Type-C® to 8K 60Hz HDMI® 2.0 or
DisplayPort™ 1.4a Monitor Adapter - MST Mode - Black
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
This is a premium Rocstor Type-C to HDMI and DP adapter which allows you to
transmit signals from your host PC to displays. The adapter supports dual-video output
up to 4K / 60Hz with MST mode or single-port video output up to 8K . It can work on
all Type-C host that supports DP Alt mode. When working on Type-C host, this product
transmits DP signal.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
System Requirement
Host computer with an available USB-C Port
- USB 3.0/3.1/3.2
Operating systems
- Windows 7 / 8 / 10 / 11
- Android OS
- Chrome OS
- Linux OS
- Mac OS v10.5 or above
User Manual
Y10A268-B1
®
Features
Upstream:
USB Type-C Male
(Connect to host computer)
• Supports DP1.4 Alt mode
• Supports HBR3
• Supports DSC1.1/1.2a or uncompressed video
• Supports 8/10/12 bit color depth
• Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
• Supports positive and negative connection
Downstream:
HDMI x1 Female
• Supports HDMI max 8K/30Hz,YCbCr4:3:3
• Supports HDMI max 4K/120Hz,YCbCr4:4:4
• Supports Dynamic HDR10+
• Supports DSC1.1/1.2a
• Supports HPD
• Supports HDCP1.4&HDCP2.3 speci cation
• Supports 6/8/10/12 bit color depth output
• Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
• Supports 1 to 32 channels LPCM 192kHz audio output
• Supports HBR audio up to 1536kHz
• Supports dual-video output up to 4K / 60Hz with MST mode
DisplayPort x1 Female
• Supports DP max 8K/30Hz,RGB
• Supports DP max 4K/120Hz,YCbCr4:4:4
• Supports Dynamic HDR10+
• Supports DP++
• Supports 1 to 32 channels LPCM 192kHz audio output
• Supports HBR audio up to 1536kHz
• Supports dual-video output up to 4K / 60Hz with MST mode
Note:
The output resolution, refresh rate, video pixel format depends on the
performance of the computer and the monitor.
Speci cation
Input / Output Connector
Input
Output
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Electronic Parameter
Input Voltage
Working Voltage
Working Current
Standby Power Consumption
Mechanical
Size
Weight
Accessory
User Manual
Type-C Male x1
HDMI Female x1
DisplayPort Female x1
3 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
5V
4.85-5.15V
100mA-250mA
≤1W
47x40x11.5(mm) - (1.8"x1.5"x0.45")
28gr - (0.06Lbs)
English Version
