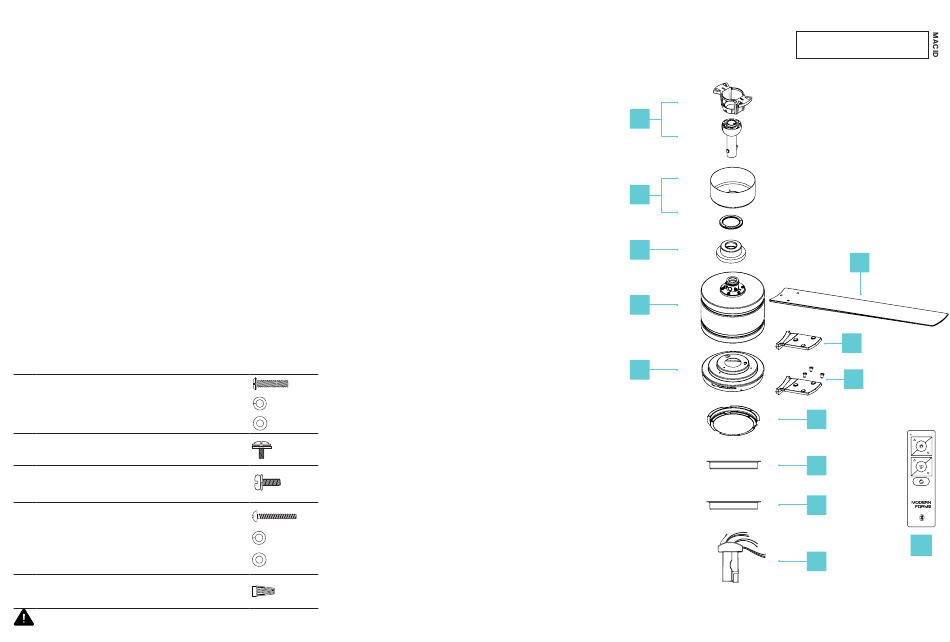

Package Contents
1. Blade Set of 8
RPL-F2001-*-BD-**
2. Blade Arms Set of 8
2A. RPL-F-2001-BARM-**
1
2B.
2 RPL-F-2001-BARM2-**
3. Downrod Assembly
Mounting Bracket
RPL-HGR-ASM-6-**
4. Canopy & Canopy
Screw Ring
RPL-CAN-CYL-**
5. Coupling Cover
6. Motor Asssembly
** Denotes finish code of fan/blade sweep of fan
1
Non-brushed nickel finishes come with different blade arms, and do not include decorative
screw nuts.
2 The brushed nickel Renegade comes with decorative screw nuts in the hardware bag. You will
need the screw nuts during the blade arm installation step. Replacement screw nuts are part
no. RPL-F2001-BASCRWBN and come in a pack of 3.
Hardware Bag
RPL-F2001-PARTS
A Machine Screws (2)
Spring Washers (2)
Flat Washers (2)
B Screws and Nylon Washers (25/25)
Blade Arm Screws
C
1/4" x 1/2" (16)
Wood Screw (1)
D
Spring Washer (1)
Flat Washer (1)
E
Wire Nuts (8) (Packed with receiver)
Before discarding packaging materials be certain all parts have been removed.
Place the parts from the hardware bag into a small container to keep them from being lost.
8 Renegade Instructions
7. Adapter Plate
8. Luminaire Module
F4IN-120V-R1-30
9. Luminiare Cover
RPL-F2001-COVER-**
10. Luminiare Glass
RPL-F2001-GLA
11. Control Receiver
w/Hardware
F-R3-2001-0**
12. Remote Control
F-RCBT-WT
F R- W 2 0 0 1
3
4
5
6
7
1
24x Decorative screw nuts come with Brushed Nickel finishes located in the hardware bag.
Replacement screw nuts are part no. RPL-F2001-BASCRWBN - they come in a pack of 3.
F R - W 2 0 01
Hanging Weight: 35 lbs
IMPORTANT: Please make note of
the MAC ID on the receiver and
keep it in a safe place.
1
2A
1
2B
8
9
10
12
11
Renegade Instructions 9
