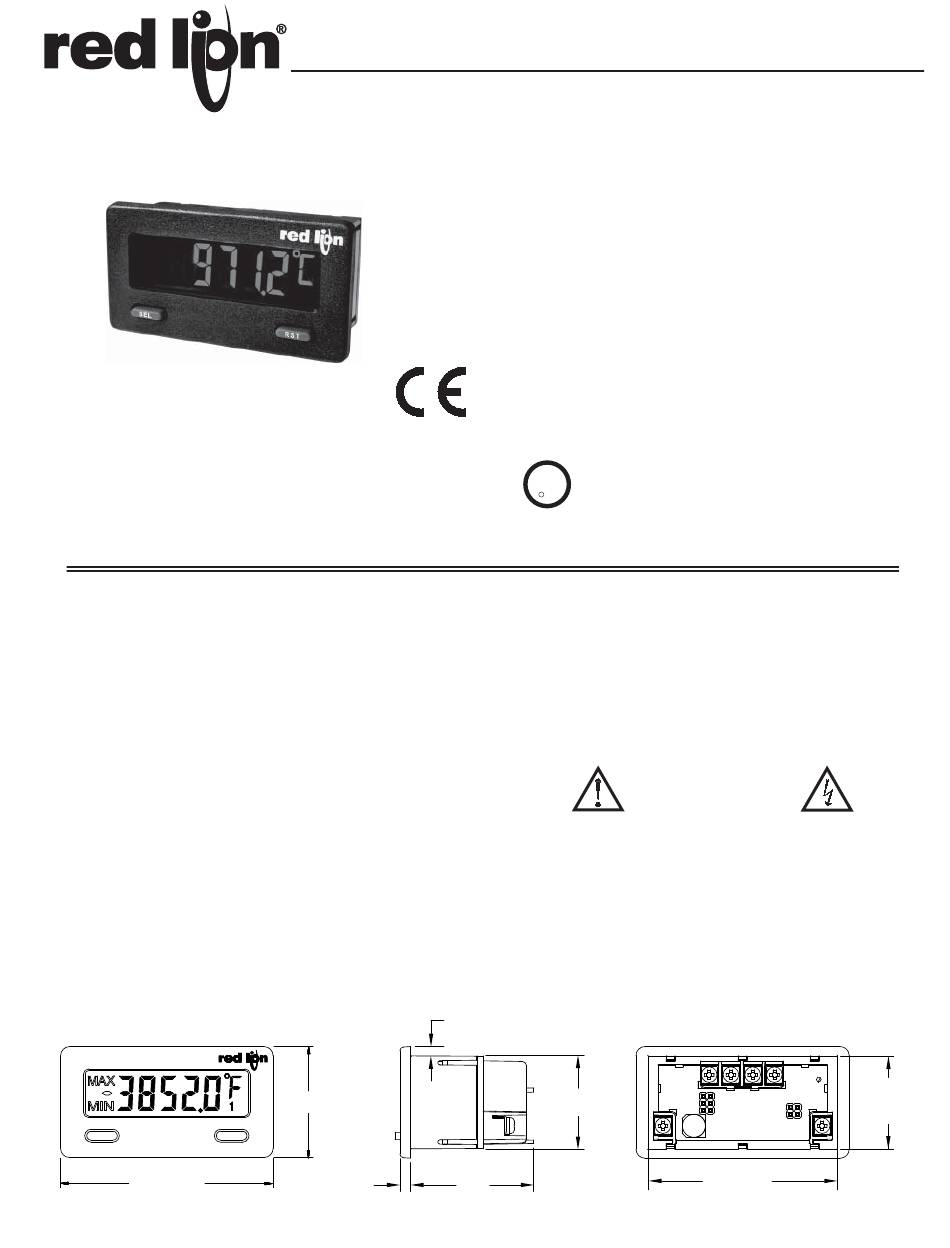

MODEL CUB5RT - MINIATURE ELECTRONIC 5-DIGIT RTD METER
 RTD INPUTS
RTD types Pt385, Pt392, Ni672, Cu427
 PROGRAMMABLE TEMPERATURE OFFSET
 SELECTABLE °F or °C WITH 1 or 0.1 DEGREE RESOLUTION
 °F OR °C DISPLAY ANNUNCIATORS
GENERAL DESCRIPTION
The CUB5 provides the user the ultimate in flexibility, from its complete user
programming to the optional setpoint control and communication capability.
The CUB5RT accepts an RTD input and provides a temperature display in
Celcius or Farenheit. The meter also features minimum and maximum display
capture, display offset, °F or °C indicator, and programmable user input. The
display can be toggled either manually or automatically between the selected
displays.
The CUB5 display has 0.48" (12.2 mm) high digits. The LCD is available in
two versions, reflective and red/green backlight. The backlight version is user
selectable for the desired color and also has variable display intensity.
The capability of the CUB5 can be easily expanded with the addition of
option cards. Setpoint capability is field installable with the addition of the
setpoint output cards. Serial communications capability for RS232 or RS485 is
added with a serial option card.
The CUB5 can be powered from an optional Red Lion Micro-Line/Sensor
Power Supply (MLPS), which attaches directly to the back of a CUB5. The
MLPS is powered from 85 to 250 VAC and provides up to 400 mA to drive the
unit and sensors.
DIMENSIONS In inches (mm)
SEL RST
2.95 (74.9)
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
.13 (3.3)
1.54 (39.1)
.15 (3.8)
 MINIMUM AND MAXIMUM DISPLAY CAPTURE
 LCD, REFLECTIVE OR GREEN/RED LED BACKLIGHTING
 0.48" (12.2 mm) HIGH DIGITS
 OPTIONAL SETPOINT OUTPUT CARD
 OPTIONAL SERIAL COMMUNICATION CARD (RS232 or RS485)
 OPTIONAL USB PROGRAMMING CARD
 OPERATES FROM 9 TO 28 VDC POWER SOURCE
 FRONT PANEL OR CRIMSON PROGRAMMABLE
 DISPLAY COLOR CHANGE CAPABILITY AT SETPOINT OUTPUT
 NEMA 4X/IP65 SEALED FRONT BEZEL
U L
C C US LISTED US LISTED
R
IND. CONT. EQ.
51EB
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in this
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this meter to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the meter.
CAUTION: Risk of Danger.
Read complete instructions prior to
installationand operation of the unit.
1.29 (32.8)
1.71
(43.4)
1
Bulletin No. CUB5RT-H
Drawing No. LP0644
Released 02/13
CAUTION: Risk of electric shock.
+.024
1.30
-.000
+6
(33
-0
+.025
2.68
-.000
+8
(68 )
-0
)
