red lion CUB4i User Manual

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
I

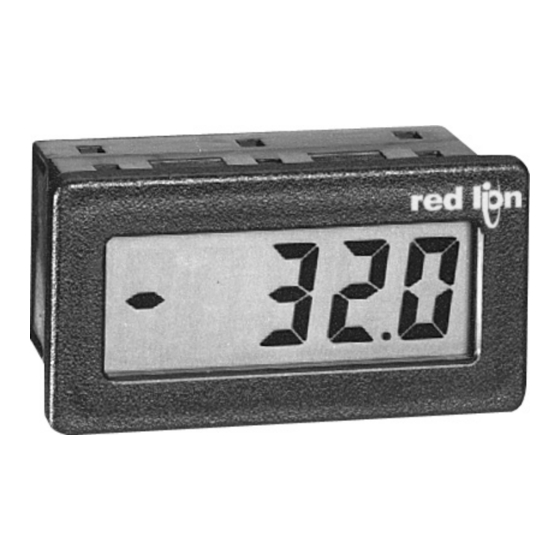

MODEL CUB4 - MINIATURE D.C. CURRENT METER
MODEL CUB4V - MINIATURE D.C. VOLTMETER
UL Recognized Component,
File # E179259

DESCRIPTION

The CUB4 Volt and Current Meters are designed and manufactured using the
latest technology for a high quality, compact, affordable instrument for use in
industrial environments. Each unit has a 3½-digit LCD display with 0.6 inch
(15.2 mm) high digits and a DIP switch selectable decimal point. The displays
are available in positive image reflective (black digits, reflective background) or
negative image transmissive (illuminated digits, dark background) with red or
yellow/green backlighting.
The units are constructed of a lightweight, high impact plastic case with a
clear viewing window. The sealed front panel meets NEMA 4X/IP65
specifications for wash-down and/or dusty environments, when properly
installed. A CUB4V or CUB4I unit can be mounted in the same panel cutout as
the CUBVD and CUBID units.
The optional Micro Line/Sensor Power Supply (MLPS1000) is designed to
attach to the rear of an installed CUB4V or CUB4I to provide the necessary power
for the unit. The optional supply can be powered from a 85-250 VAC source.

ORDERING INFORMATION

MODEL NO. DESCRIPTION
DC Voltmeter
CUB4V DC Voltmeter W/Yel-Grn Backlighting
DC Voltmeter W/Red Backlighting
DC Current Meter
CUB4I DC Current Meter W/Yel-Grn Backlighting
DC Current Meter W/Red Backlighting
MLPS Micro Line/Sensor Power Supply
DIMENSIONS In inches (mm)
2.95 (74.9)
 LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
 FOUR SELECTABLE D.C. RANGES
 0.6 INCH (15.2 mm) HIGH LCD DIGITS
 BUILT-IN SCALING PROVIDED
 AUTO ZEROING CIRCUIT
 SELECTABLE DECIMAL POINTS
 WIRE CONNECTIONS MADE VIA SCREW CLAMP TYPE
 FITS DIN STANDARD CUT-OUT 2.68" (68 mm) x 1.30" (33 mm)
 NEMA 4X/IP65 SEALED FRONT PANEL BEZEL
 9 TO 28 VDC POWERED

SAFETY SUMMARY

manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

SPECIFICATIONS

1. DISPLAY: 3½-digit (-1999 to 1999), 0.6" (15.2 mm) high digits. Minus (-)
2. DECIMAL POINTS: DIP switch selectable decimal points allow the display
PART NUMBERS
CUB4V000
3. POWER REQUIREMENTS:
CUB4V010
CUB4V020
4. INPUT RANGES:
CUB4I000
CUB4I010
CUB4I020
MLPS1000
Note: Recommended minimum clearance (behind the panel) for mounting clip
installation is 2.15" (54.6) H x 3.00" (76.2) W.
.13 (3.3)
1.54 (39.1)
.15 (3.8) 1.96 (49.8)
1
&
WITH YELLOW/GREEN OR RED BACKLIGHTING
0 to 199.9 mV, 1.999 V, 19.99 V, 199.9 V (CUB4V)
0 to 199.9 µA, 1.999 mA, 19.99 mA, 199.9 mA (CUB4I)
TERMINALS
All safety related regulations, local codes and instructions that appear in the
CAUTION: Read complete
instructions prior to installation
and operation of the unit.
sign is displayed when voltage or current is negative.
to be read in tenths, hundredths or thousandths.
Reflective Versions: 9 to 28 VDC at 4 mA max.
Backlight Versions: 9 to 28 VDC @ 35 mA typ., 50 mA max. Above 26
VDC, derate operating temperature to 50°C.
D.C. VOLTAGE D.C. CURRENT
(DIP Switch Selectable) (JMPR. Selectable)
±199.9 mVDC ±199.9 µADC
±1.999 VDC ±1.999 mADC
±19.99 VDC ±19.99 mADC
±199.9 VDC ±199.9 mADC
PANEL CUT-OUT
2.68
(68
1.29 (32.8)
Bulletin No. CUB4V/I-K
Drawing No. LP0256
Released 03/13
CAUTION: Risk of electric shock.
+.025
-.000
+.8 +.024
) 1.30
-.000
-.0
+.6
(33 )
-.0
