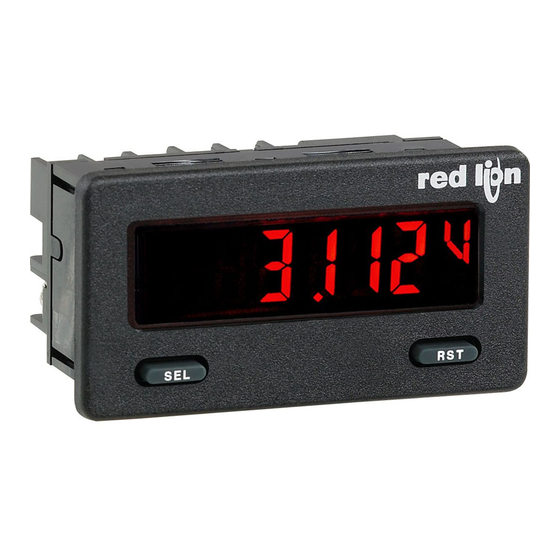

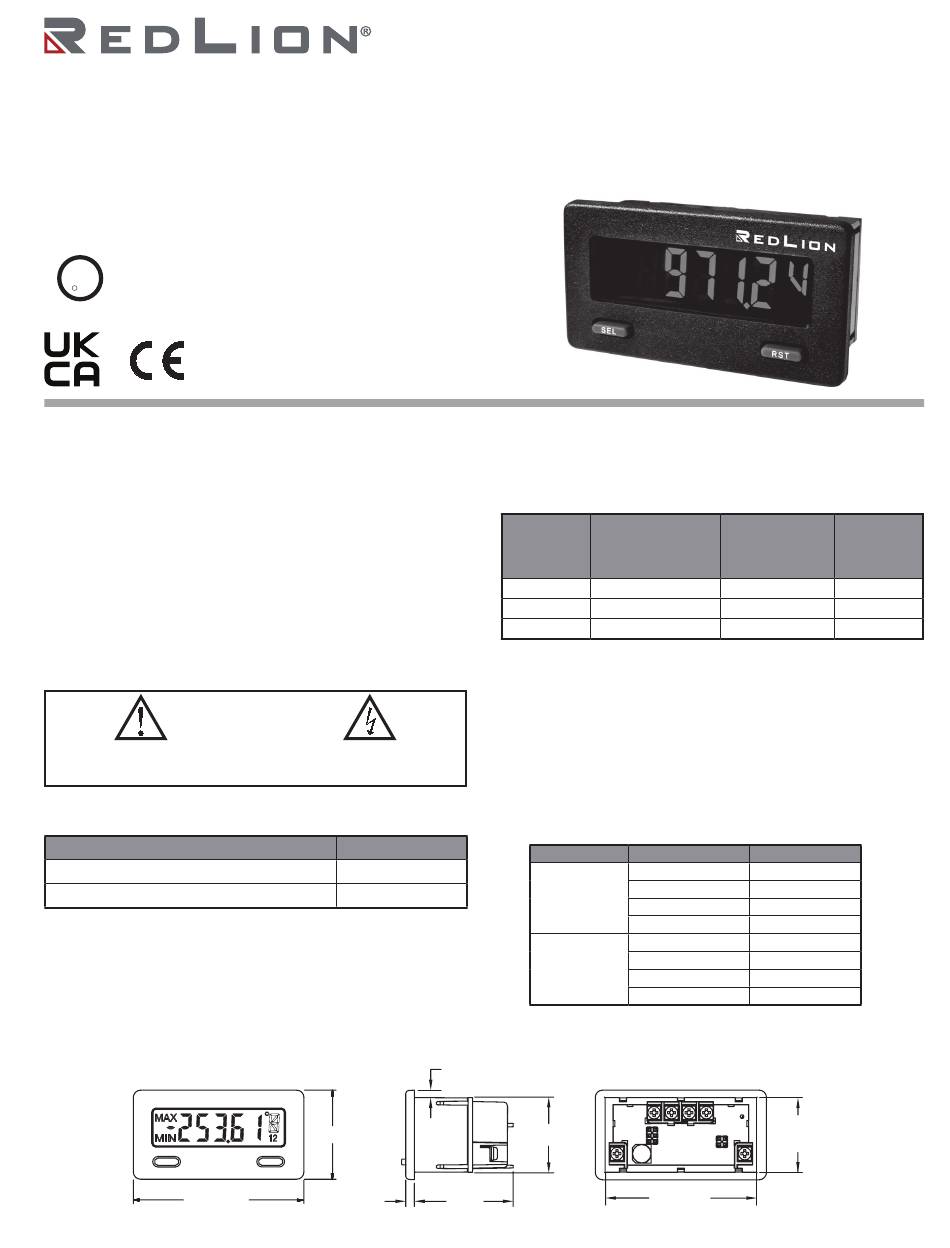

red lion CUB 5P Installation Manual

Model CUB
Installation Guide
U L
C C US LISTED US LISTED
R
IND. CONT. EQ.
E137808
See the Red Lion website at www.redlion.net for full user manual.
SAFETY SUMMARY
All safety related regulations, local codes as well as instructions
that appear in this document or on equipment must be observed
to ensure personal safety and to prevent damage to either the
device or equipment connected to it.
Do not use these products to replace proper safety interlocking.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
personnel safety or consequential equipment not equipped with
safeguards. Red Lion disclaims any responsibility for damages,
either direct or consequential, that result from the use of this
equipment in a manner not consistent with these specifications.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
ORDERING INFORMATION
DESCRIPTION
Process Meter with Reflective Display
Process Meter with Backlight Display
DIMENSIONS In inches [mm]
SEL
2.95 [74.9]
5P - Miniature Electronic
®
CAUTION: Risk of electric shock.
PART NUMBER
CUB5PR00
CUB5PB00
1.54 [39.1]
RST
0.15 [3.8]
5-Digit Process Meter
SPECIFICATIONS
1. POWER: Input voltage range is +9 to +28 VDC with short
circuit and input polarity protection. Must use an RLC model
MLPS or an NEC Class 2 or Limited Power Source (LPS) rated
power supply.
MODEL NO. DISPLAY COLOR
CUB5PR00
CUB5PB00 Red (max intensity)
CUB5PB00 Green (max intensity)
2. DISPLAY: 5 digit LCD 0.48" (12.2 mm) high digits
CUB5PR00: Reflective LCD with full viewing angle
CUB5PB00: Transmissive LCD with selectable red or green
LED backlight, viewing angle optimized. Display color change
capability with output state when using an output module.
3. INPUT RANGES: Jumper Selectable
0 to 10 V, 0(4) to 20 mA, 0 to 50 mA
4. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range for CUB5PR00: -35 to 75°C
Operating Temperature Range for CUB5PB00 depends on
display color and intensity level as per below:
Red Display
Green Display
Note: Recommended minimum clearance (behind the panel) for mounting
clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
0.13 [3.3]
1.29 [32.8]
1.71
[43.4]
1
Drawing No. LP1133
Effective 06/2022
INPUT CURRENT
@ 9 VDC
WITHOUT
CUB5RLY0
--- 10 mA
85 mA
95 mA
INTENSITY LEVEL TEMPERATURE
1 & 2 -35 to 75°C
3 -35 to 70°C
4 -35 to 60°C
5 -35 to 50°C
1 & 2 -35 to 75°C
3 -35 to 65°C
4 -35 to 50°C
5 -35 to 35°C
1.29
[32.8]
2.62 [66.6]
Install CUB5P- A
INPUT
CURRENT @
9 VDC WITH
CUB5RLY0
40 mA
115 mA
125 mA
