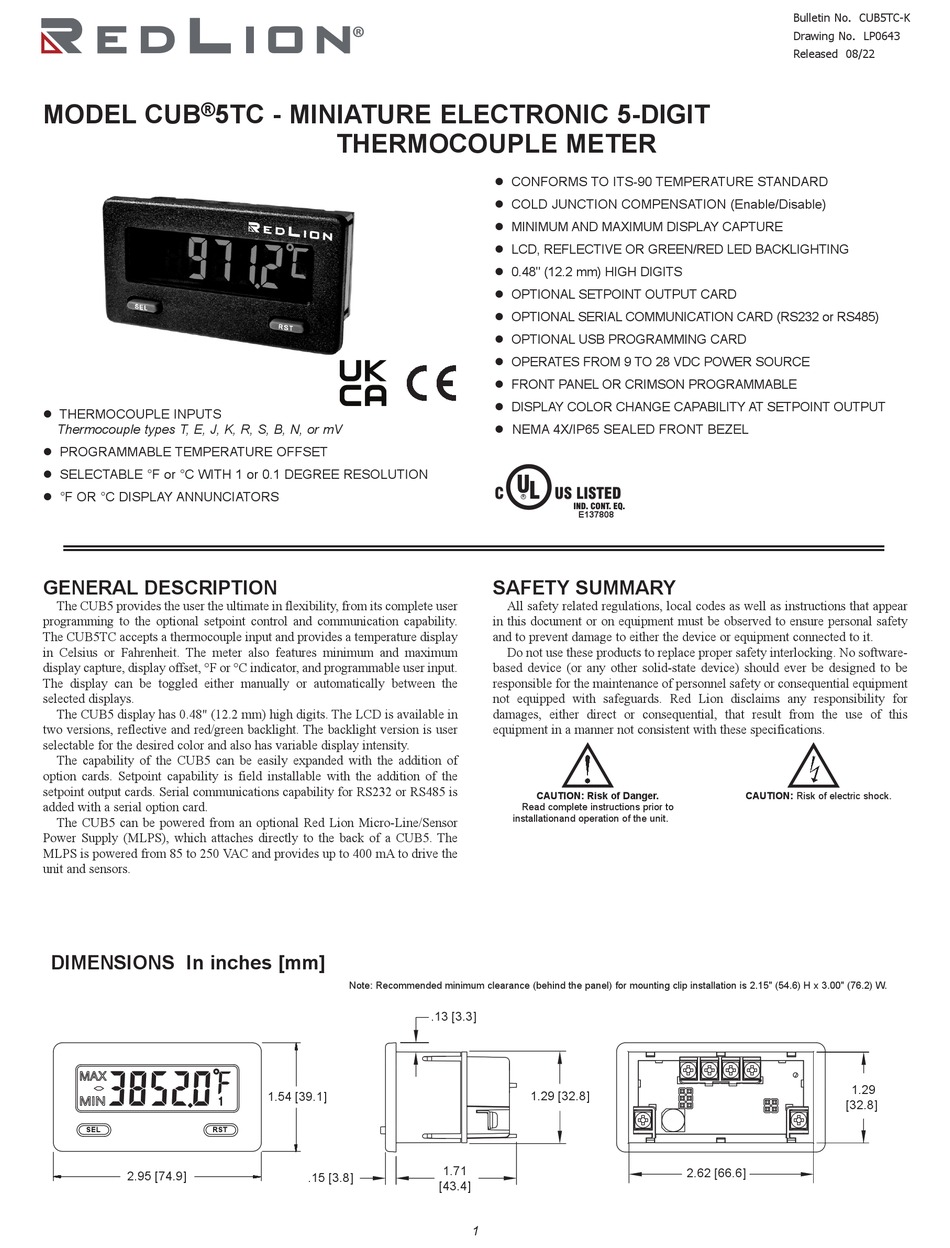

MODEL CUB 5TC - MINIATURE ELECTRONIC 5-DIGIT
®
 THERMOCOUPLE INPUTS
Thermocouple types T, E, J, K, R, S, B, N, or mV
 PROGRAMMABLE TEMPERATURE OFFSET
 SELECTABLE °F or °C WITH 1 or 0.1 DEGREE RESOLUTION
 °F OR °C DISPLAY ANNUNCIATORS
GENERAL DESCRIPTION
The CUB5 provides the user the ultimate in flexibility, from its complete user
programming to the optional setpoint control and communication capability.
The CUB5TC accepts a thermocouple input and provides a temperature display
in Celsius or Fahrenheit. The meter also features minimum and maximum
display capture, display offset, °F or °C indicator, and programmable user input.
The display can be toggled either manually or automatically between the
selected displays.
The CUB5 display has 0.48" (12.2 mm) high digits. The LCD is available in
two versions, reflective and red/green backlight. The backlight version is user
selectable for the desired color and also has variable display intensity.
The capability of the CUB5 can be easily expanded with the addition of
option cards. Setpoint capability is field installable with the addition of the
setpoint output cards. Serial communications capability for RS232 or RS485 is
added with a serial option card.
The CUB5 can be powered from an optional Red Lion Micro-Line/Sensor
Power Supply (MLPS), which attaches directly to the back of a CUB5. The
MLPS is powered from 85 to 250 VAC and provides up to 400 mA to drive the
unit and sensors.
DIMENSIONS In inches [mm]
SEL RST
2.95 [74.9]
THERMOCOUPLE METER
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
.13 [3.3]
1.54 [39.1]
1.71
.15 [3.8]
[43.4]
 CONFORMS TO ITS-90 TEMPERATURE STANDARD
 COLD JUNCTION COMPENSATION (Enable/Disable)
 MINIMUM AND MAXIMUM DISPLAY CAPTURE
 LCD, REFLECTIVE OR GREEN/RED LED BACKLIGHTING
 0.48" (12.2 mm) HIGH DIGITS
 OPTIONAL SETPOINT OUTPUT CARD
 OPTIONAL SERIAL COMMUNICATION CARD (RS232 or RS485)
 OPTIONAL USB PROGRAMMING CARD
 OPERATES FROM 9 TO 28 VDC POWER SOURCE
 FRONT PANEL OR CRIMSON PROGRAMMABLE
 DISPLAY COLOR CHANGE CAPABILITY AT SETPOINT OUTPUT
 NEMA 4X/IP65 SEALED FRONT BEZEL
U L
C C US LISTED US LISTED
R
IND. CONT. EQ.
E137808
SAFETY SUMMARY
All safety related regulations, local codes as well as instructions that appear
in this document or on equipment must be observed to ensure personal safety
and to prevent damage to either the device or equipment connected to it.
Do not use these products to replace proper safety interlocking. No software-
based device (or any other solid-state device) should ever be designed to be
responsible for the maintenance of personnel safety or consequential equipment
not equipped with safeguards. Red Lion disclaims any responsibility for
damages, either direct or consequential, that result from the use of this
equipment in a manner not consistent with these specifications.
CAUTION: Risk of Danger.
Read complete instructions prior to
installationand operation of the unit.
1.29 [32.8]
1
Bulletin No. CUB5TC-K
Drawing No. LP0643
Released 08/22
CAUTION: Risk of electric shock.
1.29
[32.8]
2.62 [66.6]
