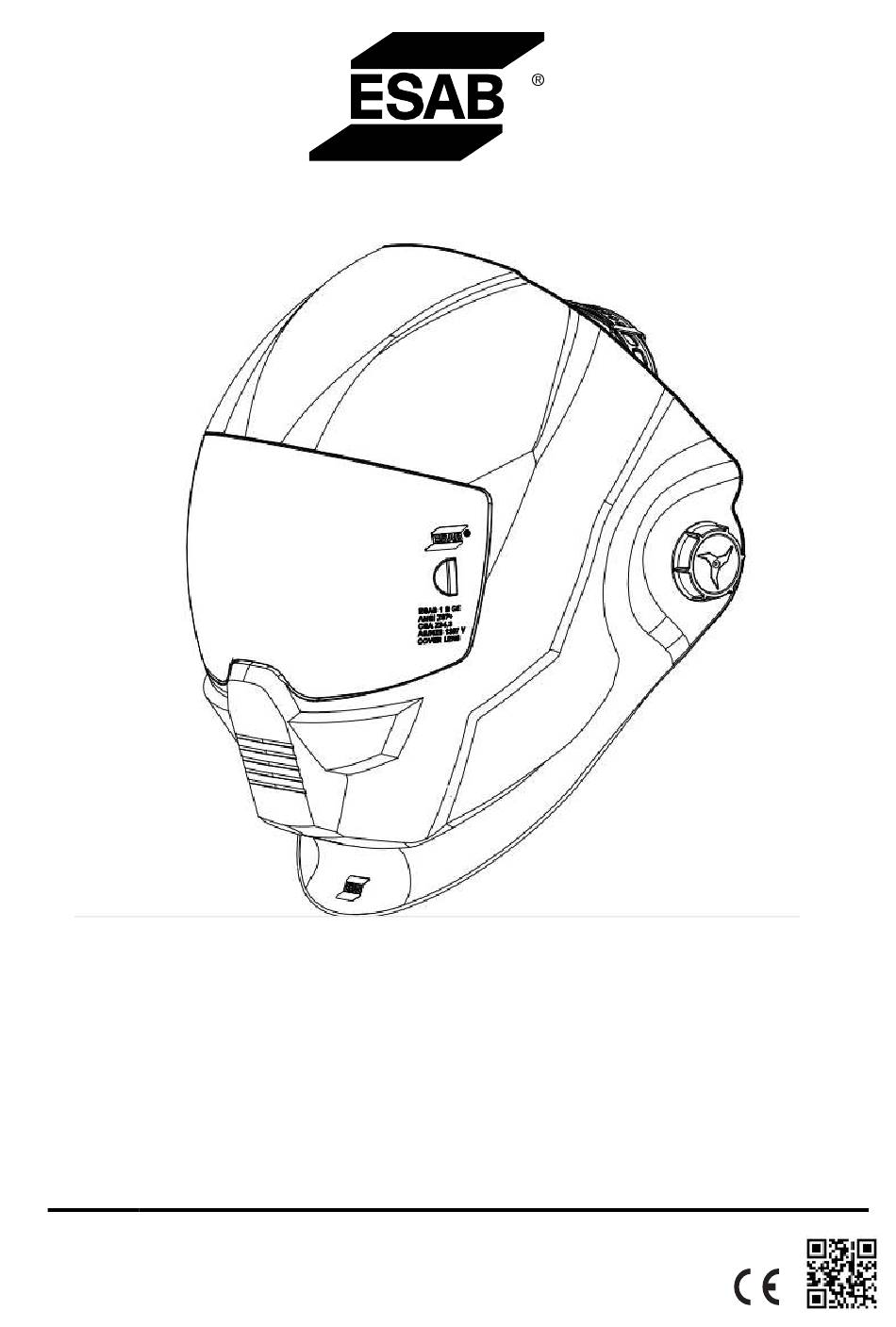

Sentinel A60
Auto Darkening Welding Helmet
USER MANUAL
PLEASE READ AND UNDERSTAND ALL INSTRUCTION BEFORE USE. RETAIN
THIS MANUAL FOR FUTURE REFERENCE.
Complete User Manual at:
Manual Number: 0-5659
Revision Date: 19-10-2022
Revision Number: A
Language: ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sentinel A60 and is the answer not in the manual?

Questions and answers

Related Manuals for ESAB Sentinel A60

Summary of Contents for ESAB Sentinel A60

  • Page 1 Sentinel A60 Auto Darkening Welding Helmet USER MANUAL PLEASE READ AND UNDERSTAND ALL INSTRUCTION BEFORE USE. RETAIN THIS MANUAL FOR FUTURE REFERENCE. Complete User Manual at: Manual Number: 0-5659 Revision Date: 19-10-2022 Revision Number: A Language: ENGLISH...
  • Page 2 Should this helmet not darken upon striking an arc, stop welding immediately and contact ESAB. Do not immerse the Auto-Darkening filter in water. Do not use any solvents on the Auto-Darkening filter screen or helmet components.
  • Page 3 Protect the auto-darkening (ADF) filter from contact with liquid and dirt. • Clean the (ADF) surface regularly by using clean water and a lint-free or microfiber cloth; do not use strong cleaning solutions. Always keep the sensors and solar cells clean using a clean lint-free tissue or microfiber cloth. •...
  • Page 4 Cylinders” • ANSI Z87.1, "Occupational and Educational Personal Eye and Face Protection Devices" ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website.
  • Page 5 As the person responsible for the equipment, it is your responsibility to obtain information on approved collection stations. For further information, contact the nearest ESAB dealer. California Proposition 65 warning WARNING! Welding or cutting equipment produces fumes or gases which contain chemicals known in the State of California to cause birth defects and, in some cases, cancer.

  • Page 6: Technical Data

    TECHNICAL DATA Weight 644 gm (1.42 lbs) Optical Class 1 / 1 / 1 / 1 132×121 mm (5.20” × 4.76”) ADF Dimension (l×h) Viewing Area 118×71mm (4.65''×2.8'') Arc Sensor Light State DIN 3 Grind State DIN 3 Welding Mode Shade No.
  • Page 7 Guide for shade numbers Minimum Suggested Electrode size Operation Arc current (A) protective shade No. 1/32 in. (mm) shade (comfort) — Less than 3 (2.5) Less than 60 3-5 (2.5–4) 60-160 Shielded metal arc welding 5-8 (4–6.4) 160-250 More than 8 (6.4) 250-550 —...
  • Page 8 OPERATING INSTRUCTIONS BATTERY INSTALLATION 1. Use the included screwdriver, or other similar-sized screwdriver to remove the retention screw 2. Slide the battery cover out of the external control case and install the battery properly (“+ side facing UP”), slide the cover back into position after battery installation.

  • Page 9: Delay Control

    indicates sensitivity is at low. Low sensitivity is Suitable for using outdoors (excessive ambient/environmental light conditions) and with higher amperage SMAW and FCAW operations. indicates sensitivity is at high. High sensitivity is Suitable for low amperage welding with GTAW or GMAW operations. Under normal welding conditions, a higher sensitivity setting is recommended.
  • Page 10 agnifying lens installation 1. Install the magnifying lens into the magnifying lens frame 2. Install the magnifying lens frame into the Auto-Darkening filter by sliding it down into the magnifier frame retention bracket as shown in the below picture ADJUSTING THE FIT OF THE HELMET The overall circumference of the headband can be made larger or smaller by rotating the knob on the back of the headband.
  • Page 11 V1 - Angle dependence of luminous transmittance class Welding Helmet Marking Explanation: ESAB EN175 B CE UKCA ESAB -Manufacturer''s identification EN175 - Testing standard B - Resistance against medium energy impact (120m/s) CE - European conformity UKCA - UK conformity...

  • Page 12: Maintenance

    ESAB components as listed in the spare parts list contained in this User Manual. ESAB recommends a use period of 5 years. The duration of use depends on various factors such as use, cleaning, storage and maintenance. Frequent inspections and replacement if helmet is damaged are recommended.

  • Page 13: Spare Parts

    A60 Front Cover Lens Clear HD 0700 600 882 A60 Front Cover Lens Amber HD 0700 600 883 Sentinel A60 Helmet Shell 0700 600 863 Sentinel A60 Air shell with air duct 0700 600 864 Batteries 2*CR2450 Reference Auto-Darkening Filter (excl. batteries) 0700 600 865 Inside Cover Lens (121.5 x 74.5mm)

  • Page 14: Troubleshooting

    TROUBLESHOOTING Irregular Darkening or Dimming Check to ensure the fore/aft adjustment to the headgear is set to the same position on both sides of the headgear. This ensures the correct and equal distance of the ADF to the user’s eyes. The ADF does not darken or flicker 1.
  • Page 15 2800 Airport Road Box 8004 WC1V 7PB Denton, TX 76207 402 77 Gothenburg London, Great Britain Sweden Phone +44 (0) 1992 768515 Phone +1 800 378 8123 Phone +46 (0) 31 50 90 00 For contact information visit esab.com http://manuals.esab.com...
