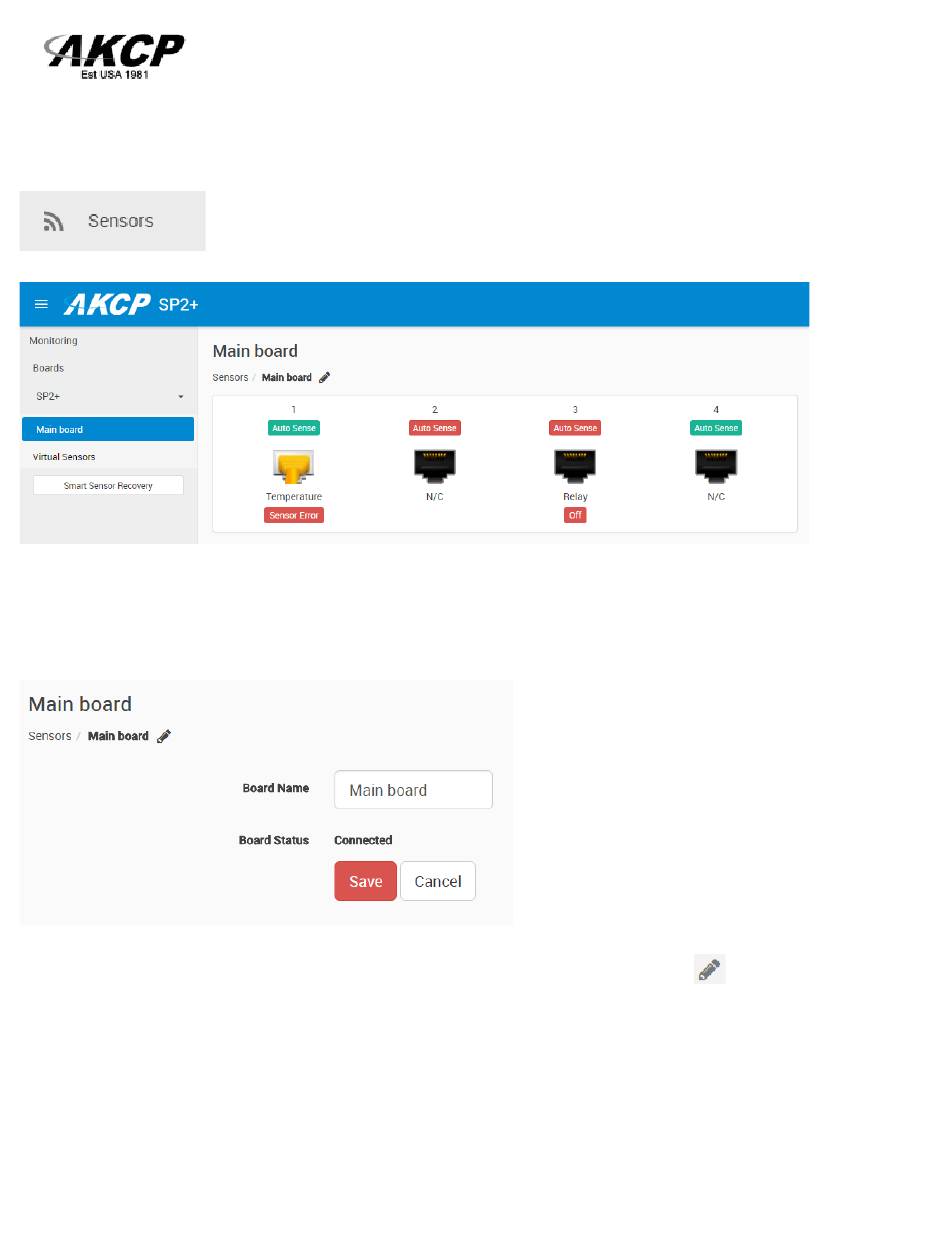

Sensors page
On this page you can view all sensors connected to the unit per port.
Non-connected sensors will be also displayed, until you re-attach or manually remove them from the
configuration.
You could also rename the unit's Main board by clicking on the pencil icon:
Please note the maximum supported cable length to use with Thermal Map Sensors:
Maximum extension cable length from the SP1+ sensor port to the TMS using CAT5 = 28 Feet
Maximum extension cable length from the SP1+ sensor port to the TMS using CAT5e & CAT6 = 60
Feet
- 79 -
