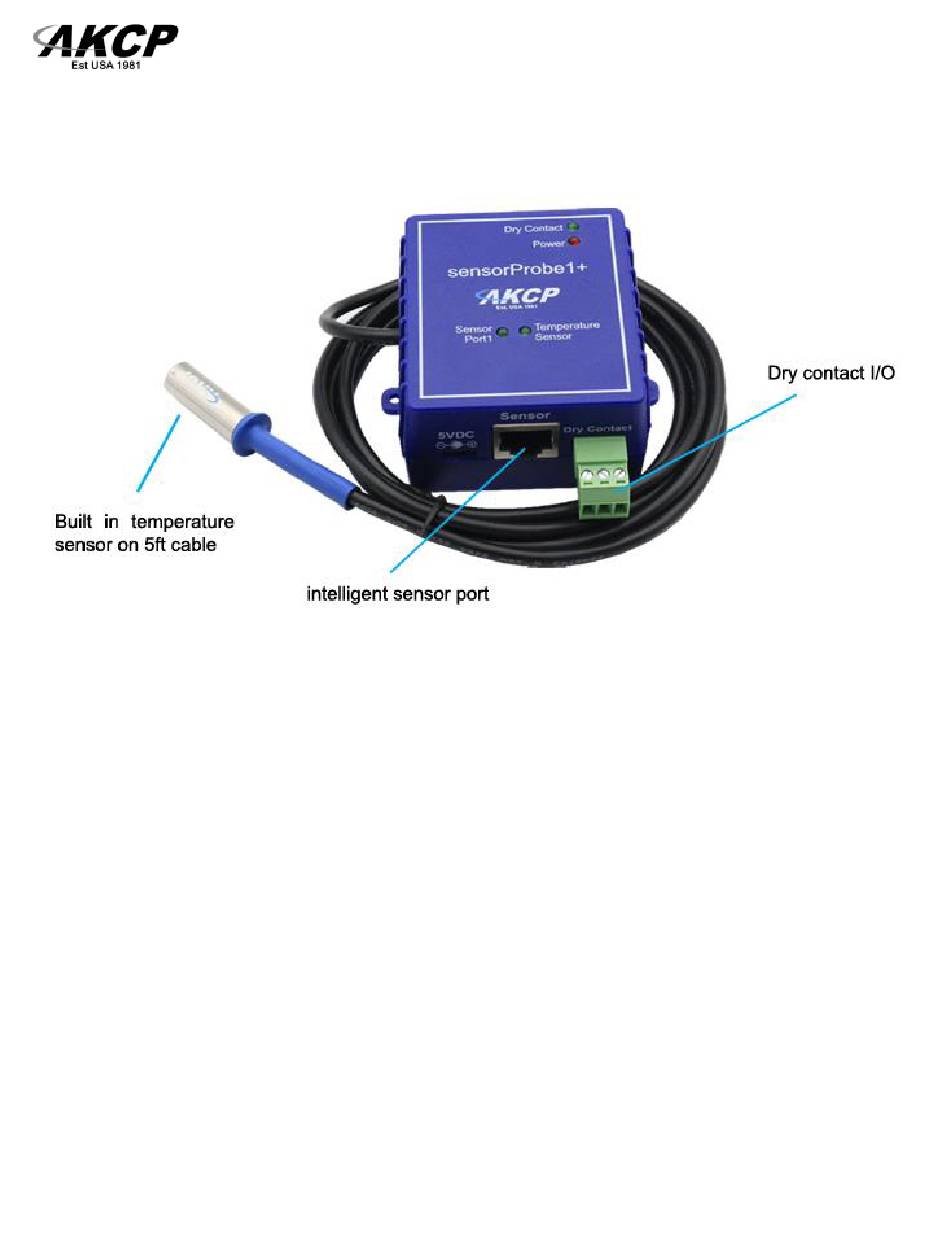

Port assignment information for SP1+ units
Important note:
• If you're using analog pins on the sensor port (with the manually on-lined DCV sensor, and pin
7 of the RJ45 connector) make sure that the voltage doesn't exceed 3 Volts. Otherwise you
can damage the unit!
New features on all H7 SP1+ units for no extra license fees include:
• 5 free virtual sensors.
• HTTPS and encrypted secure E-mail support.
• SNMPV3 included now as standard
• HTML5 user interface, MQTT/MQTTS, IPV6 option. (MQTTS only supported on H7 units)
• Support for all NIST2 and NIST3 temp sensors.
• Optional 5VDC USB power - External USB power supply, used in combination with PoE as a
redundant power input.
Note: All SP1+ units are shipped with the single sensor port unlocked. So no unlock code is needed.
