Owner's Manual and Instructions

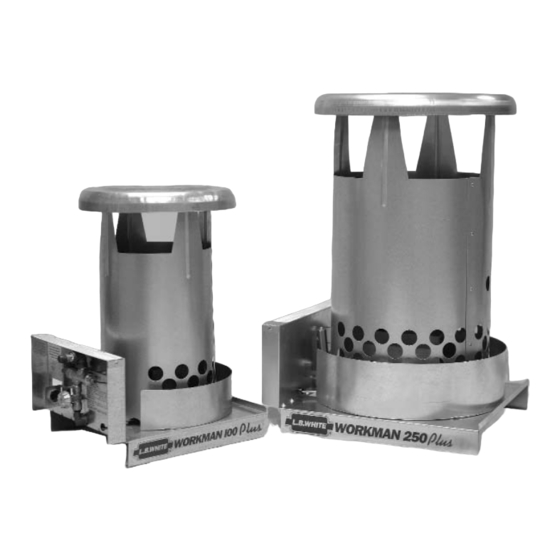

"Workman" Convection Construction Heaters
Congratulations!
You have purchased the finest convection heater available.
Your new L.B. White heater incorporates the benefits from the most experienced
manufacturer of heating products using state-of-the-art technology.
We, at L.B. White, thank you for your confidence in our products and
welcome any suggestions or comments you may have...call us, toll-free,
at 1-800-345-7200.
ATTENTION ALL USERS
This heater has been tested and evaluated by C.S.A. International in accordance with
Standard ANSI Z83.7 CSA 2.14 and is listed and approved as a direct fired vertical
convection construction heater for use on combustible floors. This heater is
intended for use as a portable, temporary heater for buildings under construction,
alteration, or repair. If you are considering using this product for any application
other than its intended use, then please contact your fuel gas supplier, or the
L.B. White Co., Inc.
MODELS
OUTPUT (Btuh)
CV100
100,000
CV250
250,000
FUEL
All Models are
available in either
Propane Vapor
Withdrawal or
Natural Gas
Configurations.
Certification by:
150-20227-D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for L.B. White CV100

Summary of Contents for L.B. White CV100

  • Page 1 Your new L.B. White heater incorporates the benefits from the most experienced manufacturer of heating products using state-of-the-art technology. We, at L.B. White, thank you for your confidence in our products and welcome any suggestions or comments you may have...call us, toll-free, at 1-800-345-7200.
  • Page 2 Save this Owner’s Manual for future use and reference. Owner’s Manuals and replacement labels are available at no charge. For assistance, contact L.B. White at 800-345-7200. WARNING Proper gas supply pressure must be provided to the inlet of the heater.

  • Page 3: Table Of Contents

    This manual will instruct you in the operation and care of The L.B. White Co., Inc. has a policy of continuous product your unit. Have your qualified installer review this manual improvement. It reserves the right to change specifications with you so that you fully understand the heater and how it and design without notice.

  • Page 4: Heater Specifications

    Heater Specifications M M o o d d e e l l SPECIFICATIONS CV100 CV250 Propane Natural Propane Natural Fuel Maximum Input (BTUH) 100,000 250,000 200,000 Ventilation Air Required 1000 to Support Combustion (CFM) Inlet Gas Supply Pressure Acceptable at MAX.

  • Page 5: Safety Precautions

    Refer to the specification section of the heater’s quarters. Owner’s Manual, heater dataplate, or contact the L.B. White Company to determine combustion air Do not use in unventilated areas. ventilation requirements of the heater. The flow of combustion and ventilation air must not be Lack of proper ventilation air will lead to improper obstructed.
  • Page 6 2. All installations and applications of L.B. White heaters must meet all relevant local, state and national 13. If gas flow is interrupted and flame goes out, do not codes.

  • Page 7: Installation Instructions

    -- Check all pipe connections, hose connections, 1. Read all safety precautions and follow L.B. White fittings and adapters upstream of the gas recommendations when installing this heater. If control with approved gas leak detectors.

  • Page 8: Hose And Regulator Assembly Instructions

    13. Any defects found in performing any of the service or dataplate at all times. Contact your gas supplier, or maintenance procedures must be eliminated and the L.B. White Co., Inc. if you have any questions. defective parts replaced immediately. The heater must be retested by properly qualified service 11.

  • Page 9: Start-Up Instructions

    Start-Up Instructions ATTENTION WARNING Burn H H azard On new installations it may take a short time for gas to Close the manual main burner valve before lighting the purge out any air in the pilot line before the pilot stays lit. pilot.

  • Page 10: Cleaning Instructions

    Make sure none are cut, torn, or otherwise appliance. damaged. Any damaged markings must be replaced immediately by contacting the L.B. White Co., Inc. 4. Regulators can wear out and function improperly. Dataplates, start-up and shut-down instructions and Have your gas supplier check the date codes on all warnings are available at no cost.

  • Page 11: Service Instructions

    Service Instructions GAS PRESSURE CHECKS ATTENTION 2. Attach the pressure gauge to this point. See Fig.3. 3. Open fuel supply valves to heater. This procedure is to be done once a year prior to the heating season, anytime the heater is moved from one C.

  • Page 12: Pilot Assembly

    PILOT ASSEMBLY 1. Shut off gas supply to heater. 6. Reassemble by reversing above steps. 2. Let the heater cool down. B. Thermocouple (See Fig. 4) 3. Remove screws that secure barrel assembly to base of heater. 1. Pull back sharply on the thermocouple’s lead or its body.

  • Page 13: Igniter And Electrode

    IGNITER and ELECTRODE Servicing of the igniter and electrode is needed when a B. Electrode spark at the electrode is not seen. This may happen with hard use over a long period of time, or due to dust and dirt 1.

  • Page 14: Troubleshooting

    Troubleshooting PROBLEMS CAUSES REMEDIES 1. Pilot will not light. * Propane gas tank is empty. * Fill tank. * Fuel supply valves closed. * Open fuel supply valves. * Excess flow valve in P .O.L. * Close propane cylinder valve. Wait 5 minutes fitting on regulator is closed.

  • Page 15: Heater Component Function

    Heater Component Function BARREL (CASE) PILOT SAFETY GAS CONTROL VALVE Upright sheet metal case component. Acts as a chimney to A gas control valve which is held open by electrical power distribute heat to surrounding area. supplied by a pilot thermocouple and which closes automatically to shut off the flow of gas to the main burner when pilot flame is extinguished or becomes too small to BASE...

  • Page 16: Parts Identification

    Parts Identification Parts Schematic LP - GAS HOSE AND REGULATOR ASSEMBLY NATURAL GAS HOSE AND REGULATOR ASSEMBLY...

  • Page 17: Parts List

    Part Number Screw, #8 x 3/8 07288 * Optional Accessories for Natural Gas Units NOTE: The complete barrel assembly may be ordered. Order part #20211 for CV100 and #20235 for CV250. The barrel assembly consists of items 29 and 30.

  • Page 18: Warranty Policy

    Warranty Policy EQUIPMENT L.B. White Co., Inc. warrants that the component parts of its A warranty card on file at L.B. White will automatically heaters are free from defects in material and workmanship, qualify a unit and its component par ts for warranty when properly installed, operated, and maintained in consideration.
