Owner's Manual and Instructions

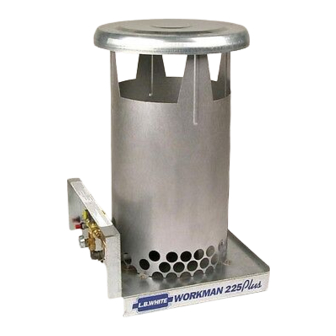

"Workman" Convection Construction Heaters
MODELS
OUTPUT (Btuh)
FUEL
Propane Vapor
CV225
225,000
Withdrawal
Certification by:
Congratulations!
You have purchased the finest convection heater available.
Your new L.B. White heater incorporates the benefits from the most experienced
manufacturer of heating products using state-of-the-art technology.
We, at L.B. White, thank you for your confidence in our products and
welcome any suggestions or comments you may have...call us, toll-free,
at 1-800-345-7200.
ATTENTION ALL USERS
This heater has been tested and evaluated by C.S.A. International in accordance with
Standard ANSI Z83.7 CSA 2.14 and is listed and approved as a direct fired vertical
convection construction heater for use on combustible floors. This heater is
intended for use as a portable, temporary heater for buildings under construction,
alteration, or repair. If you are considering using this product for any application
other than its intended use, then please contact your fuel gas supplier, or the
L.B. White Co., Inc.
150-27644
