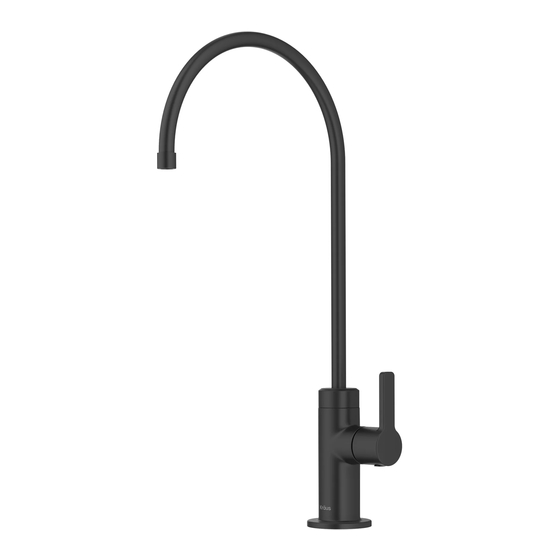

- Page 1 INSTALLATION GUIDE Oletto™ Single Handle Water Filtration Faucet FF-103 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. SEPT 07, 2022...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • to release any built-up pressure •... - Page 4 Diagram and Parts List A. Faucet Assembly B. Rubber Washer C. Metal Washer D. Mounting Nut E. 3/8 in. Connector F. 1/4 in. Connector G. Hex Wrench...
- Page 5 Faucet Dimension 7 1/8” [181.0mm] 2 3/4” 6” [69.5mm] [153.0mm] Ø 1 3/4” [Ø44.0mm] 7/16-24UNS-2A Installer Tip:...
- Page 6 Step 1: Preparing for installation Remove the rubber washer (B), metal washer (C), and mounting nut (D) from the end of the stud. Step 2: Installing the faucet assembly Place the faucet assembly (A) through the selected hole in the sink or countertop. On the underside of the sink or countertop, slide the rubber washer (B) and metal washer (C) onto the stud.
- Page 7 Step 3: Connecting the quick connect adaptor and water line Thread the quick connect adaptor (E) onto the end of the faucet assembly (A) stud, and tighten securely using a wrench. Connect the 3/8 in. water line from the filtration system by pushing the line into the connector (E).
-
Page 8: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. O-ring KP27168 CH, SFS, MB, BG, 2. Spout Nut KP27405 BB, SFACB, SFSB* KP27170 3. Locking Ring 4. O-ring KP27171 5. Cartridge KP27172 CH, SFS, MB, BG, 6. Handle KP27406 BB, SFACB, SFSB* 7. -
Page 9: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following coorective steps: P R O B L E M C A U S E A C T I O N Leakage under the Cartridge (5) has come Remove index (7) and loosen loose. - Page 10 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 11 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
