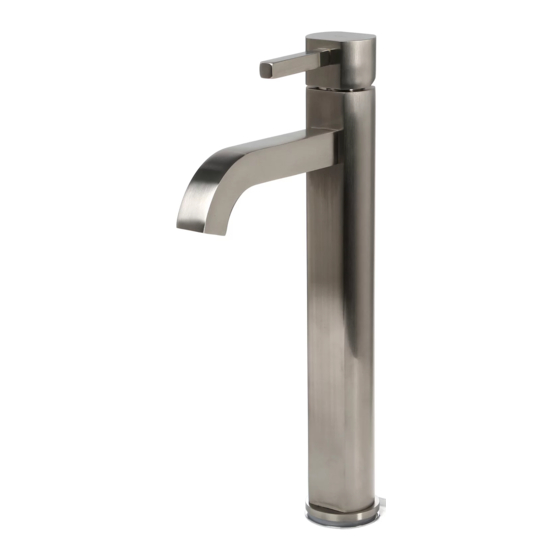

Kraus Ramus FVS-1007 Installation Manual
Single lever vessel faucet
Hide thumbs
Also See for Ramus FVS-1007:
- Installation manual (12 pages) ,
- Manual (10 pages) ,
- Installation manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Kraus Ramus FVS-1007
Summary of Contents for Kraus Ramus FVS-1007
- Page 1 INSTALLATION MANUAL Ramus Single Lever Vessel Faucet FVS-1007 www.kraususa.com Toll Free: 1.800.775.0703 © 2021 Kraus USA Plumbing LLC REV. November 8, 2021...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
· Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all ·... -
Page 4: Tools Required
Diagram and Parts List Faucet Body Aerator Faucet Base A. Base Trim Ring B. Rubber Washer Mounting Hardware A. Rubber Washer B. Metal Washer C. Mounting Nuts D. Mounting Screws Hex Wrench Aerator Key Tools Required Adjustable Wrench Phillips Screwdriver Silicone Sealant Pipe Tape Hex Wrench... -
Page 5: Faucet Dimensions
Faucet Dimensions 6 5/8" (168mm) 3 3/4" (96mm) 20° 5 3/4" Ø 1 3/4" (146mm) (45mm) 1 3/8" (35mm) Ø 2" (50mm) 3/8" Compression Installer Tip: Shut off main water supply before installing new faucet. - Page 6 Faucet Installation Procedure Step 1. Remove rubber washer (4A), metal washer (4B), mounting nut (4C), and mounting screws (4D). Keep the base trim ring (3A) and rubber washer (3B) on the base of the faucet. Step 2. Install the faucet through the 1-3/8"...
- Page 7 Step 3. Install flex water supply lines on the angle stops and tighten with an adjustable wrench. Turn on both the cold and hot main valves Apply pipe tape (optional). Step 4. After installing the faucet, remove the aerator (2) with the included aerator key (6).
-
Page 8: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Metal Handle CH, SN, ORB, MB, SFS* KP44069 2. Cartridge Cover CH, SN, ORB, MB, SFS* KP44070 3. Locking Nut KP44071 4. Cartridge KP44072 5. Aerator KP44073 CH, SN, ORB, MB, SFS* KP44074 6. -
Page 9: Troubleshooting
Trouble-Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under the faucet Adjusting locking nut has come loose. Remove handle index button. Loosen set screw with hex wrench. - Page 10 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 11 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
