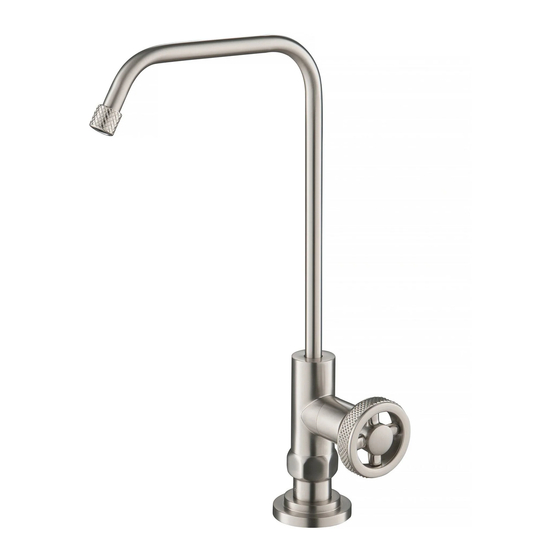

- Page 1 INSTALLATION GUIDE Urbix Industrial Stand Alone Filtration Faucet FF-101 www.kraususa.com Toll Free: 1.800.775.0703 © 2022 Kraus USA Plumbing LLC REV. February 8, 2022...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
· Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, parts, and ·... - Page 4 B. Flange C. Rubber Washer D. Metal Washer Mounting Nut Connector 3/8" G. Connector 1/4" For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help: Toll-Free: 800-775-0703 or customerservice@kraususa.com...
-
Page 5: Faucet Dimensions
Faucet Dimensions 5 3/8” [135mm] 1 3/4” 2 3/8” [45mm] [59.5mm] Installer Tip: Shut off main water supply before installing new faucet. - Page 6 Step 1: Preparing for installation Remove the rubber washer (C), metal washer (D), and mounting nut (E) from the end of the stud. Step 2. Installing the faucet assembly Place the faucet assembly (A) through the selected hole in the sink or countertop.
- Page 7 Step 3. Connecting the quick connect adaptor and water line Thread the quick connect adaptor (F) onto the end of the faucet assembly (A) stud, and tighten securely using a wrench. Connect the 3/8 in. water line from the filtration system by pushing the line into the connector (F).
-
Page 8: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Locking Ring KP44046 2. O-Ring KP44047 KP44056 3. Cover Button SFS,MB,BG,RD* KP44049 4. Handle SFS,MB,BG,RD* 5. Cartridge Cover SFS, MB, BG* KP44051 6. Cartridge KP44048 7. Flange KP44050 SFS, MB, BG* 8. -
Page 9: Troubleshooting
Trouble-Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Cartridge has come loose Remove index and loosen set screw with hex wrench. Remove the handle. Tighten cartridge with an adjustable wrench. - Page 10 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 11 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
