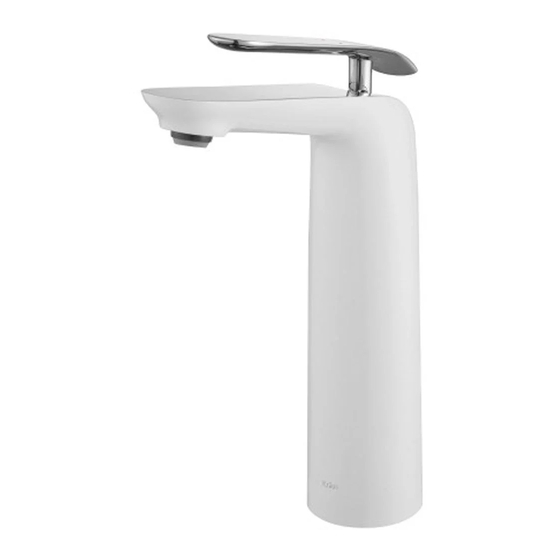

- Page 1 I N S TA L L AT I O N MA N UA L Seda™ Single Lever Vessel Faucet FVS-1820 www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. August 16, 2016...
- Page 2 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
-
Page 3: Tools You Will Need
50mm) ∅ Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800- 775-0703 for a replacement • Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. - Page 4 Diagram and Parts List A. Faucet Body D. Hot & Cold Waterlines B. Base O-Ring E. Adjustable Aerator (factory-installed) F. Aerator Key C. Mounting Hardware: G. Hex Wrench C1. Rubber & Metal O-Washer C2. Mounting Nut C3. Mounting Screws...
-
Page 5: Faucet Dimensions
Faucet Dimensions 2.3” 7.44” 58mm 189 mm 5” 129 mm 2.28” 58 mm 1.37” 1.37” 35 mm 35 mm... - Page 6 Step1 Step2 Step 1: Remove mounting hardware and install waterlines Remove mounting hardware (C) from faucet body (A). Place faucet body (A) on a soft cloth. Secure hot & cold waterlines (D) at the base of the faucet (hand- tighten, then secure with ¼ turn of adjustable wrench) A.
- Page 7 ” - Step3 Step4 Step 3: Secure faucet Step1 Step1 Step2 Step2 After adjusting direction of faucet body (A), tighten mounting nut (C2) with adjustable wrench. Secure mounting nut (C2) by tightening mounting screws (C3) with a Phillips head screwdriver Step4 Step 4: Connect waterlines to main valve Thread hot &...
- Page 8 Replacement Part List - FVS-1820 1. Metal Handle 9. Base O-Ring 2. Set Screw 10. Rubber & Metal O- Ring 3. Cartridge Cover 11. Mounting Nut 4. Cartridge Sleeve 12. Mounting Screw 5. Metal O-Ring 13. Adjustable Aerator 6. Rubber Washer 14.
-
Page 9: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under the Locking nut (7) has Loosen set screw (2) - Page 10 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
-
Page 11: Care And Maintenance
Do not clean with soaps, acid, polish, abrasives, or harsh cleaners Do not use cloth with a coarse surface Unscrew the aerator and clean when necessary *This installation manual is subject to change without further notice. Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance www.kraususa.com... - Page 12 Please take a moment to share your experience. Visit http://www.kraususa.com/review to let us know what you think about your new Kraus product. Contact Us to Learn More 1.800.775.0703 / www.kraususa.com / customerservice@kraususa.com Like & Follow KrausUSA Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance www.kraususa.com...
