Summary of Contents for NetComm NCT1000

  • Page 2: Table Of Contents

    PART I QUICK START: INTRODUCTION & INSTALLATION Chapter 1 System Description ... 5 1.1 Features ... 5 1.2 xDSL CPEs ... 5 1.3 Applications ... 6 1.4 Functionality ... 8 1.5 Management ... 9 Chapter 2 Installation ... 10 2.1 Unpacking ... 10 2.2 Chassis ...
  • Page 3 Appendix C NCT-3100 ADSL POTS Splitter Cabling ... 109 Appendix D NCT-3010 ADSL POTS Splitter Cabling ... 117 Appendix E NCT1000/1020 upgrade procedures ... 124 Appendix F Replacing the AC/DC power supply ... 125 Appendix G Power Consumption ... 127 Appendix H CLI Commands ...

  • Page 4: Part Iquick Start: Introduction & Installation

    PART I QUICK START: INTRODUCTION & INSTALLATION The NCT-1000 & NCT-1020 are IP DSLAMs designed for MTU/MDU/MHU applications. They provide data, voice, and video services over existing copper telephone wires. Carriers and service providers can utilize the NCT-1000/NCT-1020 to offer high-speed Internet access to tenants of high-rise buildings without rewiring the building.

  • Page 5: Chapter 1 System Description

    AMCU package. ** CT-NM Plus: Node Topology Management System. xDSL CPEs There are several types of NetComm’s xDSL CPEs, which meet the different demands of CPE users. Note: For more information on the xDSL CPEs, please visit www.netcomm.com.au...

  • Page 6: Applications

    Applications The NCT-1000/1020 IP DSLAMs support ADSL/SHDSL interfaces. Via the Ethernet WAN port, the NCT-1000/ 1020 IP DSLAMs can be connected to a TDM or an IP network through a router or a switch. Besides IGMP snooping for multi-cast video service, the NCT-1000/1020 IP DSLAMs also supply 802.1p Priority Queuing for the purpose of QoS (Quality of Service).
  • Page 7 Application 2 NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 8: Functionality

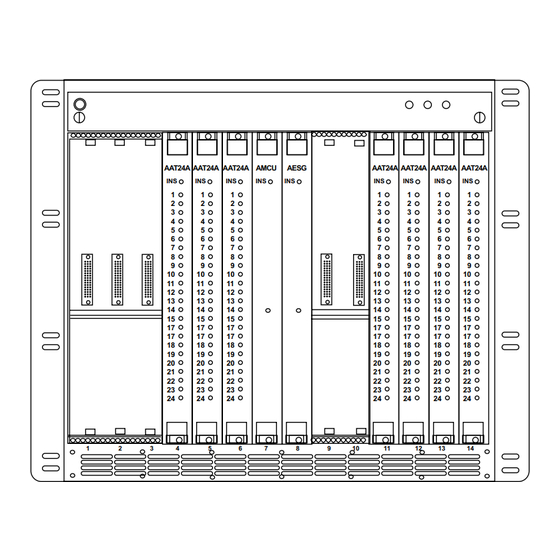

    Functionality NCT-1000/NCT-1020 System 19-inch rack-mounted chassis 14 slots for NCT-1000 2 slots for the Control Unit and the Ethernet Switch Unit 12 slots for channel units 5 slots for NCT-1020 2 slots for the Control Unit and the Ethernet Switch Unit 3 slots for the channel units Module Cards and Channel Unit The NCT-1000/1020 system supports the following modules: AMCU, AES-G, AAT24A and AST24B.

  • Page 9: Management

    Management The NCT-1000/1020 supports Telnet, and SNMP management. It also supports Console functions via the AMCU RS-232 port. Management Protocols NCT-1000/1020 supports the following management protocols. • SNMP agent with MIBs provided. • Console management (command line interface) • TFTP for configuration backup/restoration and software upgrade Management Interfaces Ethernet port: Network management for Telnet, and SNMP...

  • Page 10: Chapter 2 Installation

    Installation Unpacking Please unpack your NCT-1000 or NCT-1020 package. If any of the items are missing or damaged, please contact NetComm immediately. Chassis The NCT-1000/NCT-1020 can be installed in a standard 19-inch rack. A fully equipped NCT-1000 contains one control unit (AMCU), one Ethernet Switch Unit (AES-G) and up to twelve channel units. A fully equipped NCT-1020 contains one control unit (AMCU), one Ethernet Switch Unit (AES-G) and up to three channel units.
  • Page 11 NCT-1000/NCT-1020 User Guide YML836 Rev2 AAT24A AAT24A AAT24A AMCU AESG Figure 1-1 Front View of the NCT-1000 Chassis Figure 1-2 Front View of the NCT-1020 Chassis AAT24A AAT24A AAT24A AAT24A...

  • Page 12: Rear Panel

    2.2.2 Rear Panel The rear components of the NCT-1000 and NCT-1020 are exactly the same, except they are located in dif- ferent positions. Before you connect any of the components, make sure you read the label and connect to the correct positions.

  • Page 13: Power Supply Connectors

    Power Supply Connectors Warning: For initial setup, before you supply power to the shelf, it is suggested not to insert any card into the shelf. Only insert the card after the shelf power connectors are appropri- ately assembled, and the power LED should be lit green. There are two DC-48V power source inputs, labeled A and B.

  • Page 14: Fan Tray

    2.2.3 Fan Tray Both the NCT-1000 and NCT-1020 have a fan tray for cooling. The fan tray of the NCT-1020 has one fan, which is located behind the LED indicator panel. The fan tray of the NCT-1000 has three fans and it is mounted at the top of the chassis.

  • Page 15: Install The Card

    Install the Card 1. Insert the card into the shelf and tighten its screws of the card. 2. Connect the centronic-50 cable to the card and drive the screws of bracket on the centronic-50 cable tightly with shelf. If you want to replace the card on shelf, you only need to remove the card and re- insert the card into the same slot.

  • Page 16: Amcu

    AMCU The AMCU deals with the operations, administration, maintenance and provisioning of the NCT-1000/1020 DSL concentrator. It is installed in Slot 7 in a CT-1000 or Slot 4 in a NCT-1020. AMCU has one RJ-45 Ethernet connector for Telnet, and SNMP managements, and one RS-232 console port (DB9 connector) for CLI.
  • Page 17 AMCU console port and the other end into the console PC. LAN port: This is used to connect the IP DSLAM to an Ethernet device, which may be a workstation, hub, or PC. To connect to a hub, prepare a straight-through RJ45 cable. To connect to a PC, prepare a crossover RJ45 cable.

  • Page 18: Aes-G

    AES-G The AES-G is an Ethernet Switch Unit installed in slot 8 in a NCT-1000 or in slot 5 in a NCT-1020. It supports packet switching functions. The AES-G provides two Gigabit uplink modules, each with an uplink port. The uplink ports can either be equipped with a 10/100/1000BASE-T (electrical interface), 1000Base-SX (optical), or 1000BASE-LX (optical) connector.
  • Page 19 2.5.1 Uplink Electrical Module The following picture and table explain the faceplate of the Gigabit Ethernet Uplink Electrical Module (1000BASE-TX). The module is equipped with a Gigabit Ethernet Uplink port. NCT-1000/NCT-1020 User Guide YML836 Rev2 Color Mode 1000 Green Green Link/Act Green Flash Green...
  • Page 20 2.5.2 Uplink Optical LX Module The following picture and table explain the faceplate of the Gigabit Ethernet Uplink Optical Module1000BASE- LX). The module is equipped with a Gigabit Ethernet Uplink port. This is for single mode fibre optic cabling. There are two ports. RX receives the interface and TX transmits the interface. Color Mode Link/Act...
  • Page 21 2.5.3 Uplink Optical SX Module The following picture and table explain the faceplate of the Gigabit Ethernet Uplink Optical Module (1000BASE-SX). The module is equipped with a Gigabit Ethernet Uplink port. This is for multiple mode fibre optic cabling. There are two ports. RX receives the interface and TX transmits the interface. Link/Act NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 22: Aat24A

    AAT24A The AAT24A is a 24-port ADSL line interface unit. Each ADSL port supports one virtual channel (VC). An ADSL port has a maximum Downstream transmission rate of up to 11 Mbps with increments of 32 Kbps and a maximum Upstream transmission rate of up to 864 kbps. ADSL supports a maximum distance of 4 km over 0.65 mm.

  • Page 23: Aat24B

    AAT24B The AAT24B is a 24-port ADSL 2+ line interface unit. Each ADSL port supports two virtual channels (VCs). An ADSL port has a maximum Downstream transmission rate of up to 24 Mbps and Upstream up to 2 Mbps. The AAT24B has a Centronic 50-pins connector male to connect to the NCT-3010/NCT0-3100 ADSL POTS splitter.

  • Page 24: Using The Cores

    Using the Cores Three cores (one white square and two black round) are enclosed in the NCT-1000/1020 IP DSLAM package box, and one core (black round) is enclosed in the package box for the Gigabit Ethernet Electrical Module. These cores are required for safety purposes to avoid magnetic interence. Before connecting the cables, apply the cores as instructed below.
  • Page 25 The core for Gigabit Ethernet cable is black and round in shape. STEP 1 Select the place on the cable where you will attach the core. The core should be placed near the NCT-1000/1020 IP DSLAM, about 1-2 cm. STEP 2 Loop the cable around the core twice, as displayed below.

  • Page 26: Connecting Ac/Dc Power Supply

    The rear power terminal has a plastic protection cover which must be installed. The IP DSLAM supports dual DC–48V ports. If an AC power source is required, an AC/DC power supply tray is provided. The power supply tray can hold up to two power supplies, for single or dual power supply source systems.
  • Page 27 2.9.1 Connecting the NCT-1000 Power Supply The IP DSLAM can have a single or dual power source. For a single power source system, the shelf holds one power supply, and it holds two power supplies for a dual power supply source system. To assembly the power supply, two power cords are supplied with the package.

  • Page 28: Connection To Power Source

    STEP 3: Connect the AC source Use the AC power cord (one end with power plug and one end with three wires) to connect to the power source. Connection on the power supply Connect the three wires of the cable to the power supply as follows. terminal of the power-supply: Connect to the terminal of the power-supply: Connect to the terminal of the power-supply: Connect to the...
  • Page 29 2.9.2 Connecting the NCT-1020 Power Supply The IP DSLAM can have a single or dual power source. The shelf can hold up to two power supplies for a dual power supply source system. STEP 1: Assemble the power supply shelf onto the rack. The following picture shows the power supply shelf.
  • Page 30 Connection on the Power supply: Connect the positive power lead to the positive terminal marked +V. Connect the negative power lead to the terminal marked –V. Warning: The power connectors must be connected correctly. One connector should be con- nected to the negative terminal on both the shelf and power supply; the other should be connected to the positive terminal on both the shelf and power supply.

  • Page 31: 2.10 System Installation

    2.10 System Installation 2.10.1 Setting up a DSL Concentrator Before installation, ensure all cards are inserted in the correct position and fit into the chassis. Then complete the following procedures to install a DSL Concentrator. 120 ohm Shelf ID Ethernet 1 Ethernet 2 Management 75 olm NCT-1000...

  • Page 32: Setting Up The Connection

    2.10.2 Setting up the Connection Set up the network as shown in the figure below. 120 ohm FUSE B Shelf ID Ethernet 1 Ethernet 2 Management 75 olm AU_ALM VI_ALM RJ45 LAN Cable (Ethernet cable should be cross-over type) NCT-1000 -48V PG FG -48V PG FG FUSE A...
  • Page 33 2.10.3 Setting up Network Management The following diagram shows the network management. You can connect the AMCU Ethernet port and the computer together for management over the Ethernet network. After finishing the connection, make sure that the IP address of your computer for network manage- ment and the IP address of the AMCU are in the same network segment.

  • Page 34: Chapter 3 Initial Setup

    Chapter 3 Initial Setup You can use the Command Line Interface (CLI) to configure the IP DSLAM via the Console port. The default IP address is 172.16.7.100/16. Initial configuration of the IP DSLAM must be performed from the console port.
  • Page 35 HyperTerminal Instructions HyperTerminal is provided with Windows 98/ME/2000. If you use HyperTerminal, use the following proce- dures: STEP 1: Activate the HyperTerminal window after the baud rate, parity, data bit, stop bit, flow control bit are set up. Click File>Properties to access the Properties window. STEP 2: STEP 3: Click the Settings tab on the Properties window.

  • Page 36: Login

    STEP 4: Select the following parameters on the ASCII Setup window and click OK. • Wrap lines that exceed terminal width Login To login to the console you will be required to enter a password. Only a Super user password will be ac- cepted.

  • Page 37: System Initial Commands

    System Initial Commands In the console mode, the user can type ? at the prompt to display all of the console commands. An example or simple description is given for the command that helps you to use the command. The default IP address 172.16.7.100 is pre-configured for the device. If it doesn’t fit your application, change it.

  • Page 38: Amcu Management Ip Address

    AMCU Management IP Address The default IP address and subnet mask are 172.16.7.100 and 255.255.0.0 respectively. You can type the following commands to display the IP address and subnet mask: dslam>show mcu config To change the IP address and the subnet mask of MCU, type the following command: dslam(config-mcu)#ip-address set ip-address mask For example, if you want to change the IP address and subnet mask to 192.168.1.1 and 255.255.255.0.

  • Page 39: Part Ii Snmp Management

    PART II The following chapters explain the procedures for managing the IP concentrator using SNMP management. NCT-1000/NCT-1020 User Guide YML836 Rev2 SNMP MANAGEMENT...

  • Page 40: Chapter 4 Mcid Introduction

    Chapter 4 MCID Introduction The MCID (Management Craft Interface Device) software provides a Graphical User Interface (GUI), which can be used to configure, maintain, and operate a NCT-1000/1020 across a LAN. The MCID is able to control all the installed cards. You can use the LAN port on the chassis rear panel to access the MCID and configure the device.

  • Page 41: Mcid Installation

    MCID Installation To install the NCT-1000/1020 MCID software, complete the following steps: STEP 1: Insert the compact disk with the NCT-1000/1020 MCID software into your workstation’s CD- ROM drive. STEP 2: Open the MCID folder and run setup.exe STEP 3: Select the Destination Folder using the Browse button, and click Next to continue, when the screen displays as below: STEP 3:...

  • Page 42: Login To The Nct-1000/1020

    Login to the NCT-1000/1020 -48V PG FG -48V PG FG FUSE A FUSE B Management Ethernet 1 Ethernet 2 AU_ALM VI_ALM 75 olm FG DG Shelf ID NCT-1020 STEP 1: Use a crossover RJ45 LAN cable to connect the MCID terminal to the LAN port on the UMCU of the NCT-1000/1020.

  • Page 43: Cid Main Menu

    CID Main Menu After login the screen will display as below. The figure below has labels for the location of the ACO button, shelf faceplate, and directory tree. The faceplate displays the installed units and their LED status. The main screen includes the following information: Items Functions Directory Tree...

  • Page 44: Alarm Cut Off

    Alarm Cut Off The Alarm Cut Off (ACO) button , is located below the SYSTEM button. It is used to stop the audio alarm physically connected to the chassis. NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 45: Chapter 5 Amcu

    Chapter 5 AMCU To access the AMCU main control unit, select AMCU from the directory tree or click AMCU from the faceplate. The screen will display as below. A graphical display of the status of each port is shown on the right hand side of the menu tree.

  • Page 46: System

    IGMP (Internet Group Membership Protocol) is a protocol used by IP hosts to report their multicast group memberships to any immediately neighboring multicast routers. Enabling IGMP snooping allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the IP DSLAM to avoid traffic flooding.

  • Page 47: Broadcast Storm Control

    Broadcast Storm Control Broadcast storms may break down your network traffic. To avoid the broadcast storms from blocking your network traffic, you can configure this field by choosing any option among 5% to 25%. When broadcast storms are discovered, the broadcast storm packets can be filtered by percentage. For example, the option 10% is selected.

  • Page 48: User Account

    5.1.2 Administration To access the configuration screen, click on the Configuration tab, and the screen will display as below: SNMP The following parameters can be configured, click on the Set button to update settings: MIB Version: Displays the MIB version of the SNMP. Trap IP address: Sets up the IP address to which the CID will send a TRAP.
  • Page 49 The default user name and password of the administrator is root and root. Only the super user can add or modify a user account. Note that a correct capitalization of letters should be used during logging on. User names cannot be repeated. The default user name and password are as follows: root/root (Read/write access)
  • Page 50 Tagged VLAN (up to 600 groups)Tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to create a VLAN across devices from different IP DSLAM venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet packets. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers.
  • Page 51 Outgoing Packets for tag-based VLAN There are three types of outgoing Tag-based VLAN packets. In a VLAN entry, white means the port is not joined to any group. Yellow means the port is set to Egress Untagged. Green means the port is joined to Egress Tagged.

  • Page 52: Tag-Based Vlan

    Tag-based VLAN In the application below, there are four ADSL ports (node). A node can exist among different VLAN groups. For example, S2 in the following diagram belongs to both Group 1 and Group 2. Others nodes’ VLAN type depends on their field application, which can be Egress-Tagged and Egress-Untagged. Select Tag-Based from the VLAN Mode field.
  • Page 53 Slot number STEP 4: Configure Group 1 (the VID is 26). Choose VID 26, and click Edit. NCT-1000/NCT-1020 User Guide YML836 Rev2 Reserved VID number 2 - 25 26- 49 50- 73 74- 97 (not available for 1020) 98 – 122 (not available for 1020) 123 –...
  • Page 54 STEP 5: On the right side of the screen, for Egress Untagged port, single click the port (yellow), and for the Egress Tagged port, double click it (green). In this case, Port 1 is Egress Untagged, so click it once, and port 2 is Egress Tagged, so click it twice. When the set up is complete, click Set to apply.
  • Page 55 STEP 7: In this case, Port 2 and Port 3 are Egress tagged, so click it twice, and port 4 is Egress un- tagged, so click it once. When the set up is complete, click Set to apply. STEP 8: The setup is complete.
  • Page 56 5.1.4 VLAN PVID The VLAN PVID displays the tag-based VLAN. In a tagged VLAN application, if untagged packets are received, they will be forwarded by mapping the port VID number. The VID number is configured on the VLAN PVID tab. If the VID number is not on the VID entry list, the packets will be dropped.

  • Page 57: Maintenance

    5.1.5 Maintenance The Maintenance tab maintains the following functions: Please Select Card This field resets the card that is chosen. To do this, select a Card Type and then click the Reset button. Start VLAN ID In a tag-based VLAN, each channel of the AAT24A card is reserved with 24 ID numbers. The blank in this field is used to enter the start number for the ID.

  • Page 58: System Software Upgrade

    5.1.6 System Software upgrade To upgrade the system software, click on the SW Upgrade tab. The screen will display as below. Important Rules for NCT1000 / NCT1020 Firmware Upgrade Keep the TFTP sever and the MCID management software running for performing firmware upgrade.
  • Page 59 Download/Upload: Select Download or Upload. The Upload item only appears when Configuration is chosen for the File Type. TFTP Server IP Address: Enter the TFTP server IP address. Download File name: Enter the file name, or click the button field to locate the file. NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 60: Amcu Configuration

    AMCU Configuration Click on the Configuration tab to display the AMCU configuration screen below. The fields and buttons are as follows: Version The Version field displays the AMCU hardware version, software version, boot version, Web version, and configuration version. Configuration Node IP Address: The IP address of the node.

  • Page 61: Current Alarm

    Current Alarm This screen displays any alarms that are currently occurring, displaying the following information: This represents the sequence number. Priority: Major, Minor. Device: The Shelf/Unit/Port where the alarm occurred. Description: Description of the alarm (this software version will display an event when a card is removed).

  • Page 62: History Alarm

    History Alarm This screen displays any alarms that have occurred. Displaying the following information: This represents the sequence number. Time: The date and time of the alarm is displayed. Status: Either Occur or Clear will be displayed in this box. Priority: Major, Minor.

  • Page 63: Alarm Event

    Alarm Event The Alarm Event tab configures the alarm report and the alarm severity. The alarms will be displayed in the Current Alarm and History Alarm tabs when they occur. Note: Among the alarms, the ADSL Loss of signal quality is reserved only. Office Alarm To enable the alarm report function, choose Enable and click the Set button.
  • Page 64 To apply the setting, click the Set button. Item Description CU Insert a board System Failure of power supply System Failure of shelf fan ADSL Loss of frame ADSL Loss of signal ADSL Loss of power ADSL Loss of signal quality ADSL loss of link SHDSL LOSW (Loss of Signalling Word)

  • Page 65: Chapter 6 Aes-G

    Chapter 6 AES-G To access the AES-G screen, click AES-G from the directory tree or click AES-G from the faceplate. A graphi- cal display of the status of each port is shown on th right hand side of the menu tree. The following diagram illustrates how to display the AES-G configuration screen for a NCT-1020.

  • Page 66: Configuration

    Configuration The screen will display as below, with the following parameters: Version Shelf: Displays the shelf number HW Version: Displays the hardware version Boot Version: Displays the boot version SW Version: Displays the software version Card Configuration Uplink port: An uplink port can be specified when the VLAN mode is set to Private. When the VLAN mode is set to Tag-based or disabled, the uplink port is not configurable because it is auto-learned.
  • Page 67 Flow Control: Check this box to activate the flow control. Flow control enables the connected ports to control traffic rates during congestion. If one port experiences congestion and cannot receive any more traffic, it notifies the other port to stop transmitting until the condition clears.

  • Page 68: Spanning Tree

    Spanning Tree The Spanning Tree tab displays the spanning tree parameters of the uplink ports- UP (labeled Ethernet 1 on the shelf rear panel), Down (labeled Ethernet 2 on the shelf rear panel), Giga ports1 and Giga Port 2. It also allows enabling or disabling each port individually.

  • Page 69: Exiting The Aes-G

    Exiting the AES-G Click the Exit tab to exit this unit. NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 70: Chapter 7 Aat24A

    Chapter 7 AAT24A To access the AES-G screen, click AAT2A from the directory tree or click AAT24A from the faceplate. A graphical display of the status of each port is shown on the right hand side of the menu tree. The following diagram illustrates how to display the AAT24A configuration screen for a NCT-1020.

  • Page 71: Configuration

    Configuration To access the configuration screen, click on the Configuration tab, the screen will display as below: 7.1.1 Port Information This section of the screen displays the shelf number, the slot number and the port number that is currently selected. NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 72: Batch Configuration

    7.1.2 Batch Configuration Batch configuration allows the configuration of a port to be applied to other ports on the same slot, ports of another slot, or port to shelf. Note the following parameters: Source Port Selection: Select the source port Configuration Selection: These fields allow you to select what types of configurations will be transferred to the other ports –...
  • Page 73 Buttons Select: Selects the currently highlighted port/shelf to receive the configuration Unselect: Deselects the currently highlighted port/shelf to receive the configuration Select All: Selects all ports/slots to receive the configuration Clear All: Deselects all ports/slots to receive the configuration Set: Sets the current parameters and starts the transfer of configuration (progress will be indicated in the lower-middle panel of the screen).
  • Page 74 7.1.4 List Slot Configuration In the “List Shelf Slot x All Port Configuration” field (slot x means the slot number of the unit), select ADSL, Other configuration, or VC Config to display the configurations or status of the unit. List ADSL Configuration Clicking the ADSL button on the main screen accesses this screen.

  • Page 75: Other Configuration

    Other Configuration This screen displays the following information: Port PPPoE Port Number PPPoE filter is enabled or disabled to filter PPPoE packets IP Filter IP Filter is enabled or disabled IP Filter Address IP filters for each port using the following format {IP address/Subnet}. The filters are displayed from priority 1 (displayed first) through to priority 5.
  • Page 76 List VC Configuration This screen displays the following information: Port: lists ports 1-24 lists VCs (one available per port for this software release) Status: Indicates whether the port is enabled or disabled. VPI/VCI: Current VPI/VCI values. QOS/PCR/SCR/BT: Lists current values Protocol/Encap: Lists current protocol/encapsulation values VLAN:...

  • Page 77: Adsl Configuration

    7.1.5 Port Configuration To configure a port, select the port and then click on the ADSL, Other Config, or VC Config button. ADSL Configuration Pressing the ADSL button on the main screen accesses this screen: From this screen the items below can be configured. Click on the Set button to update parameters, the Refresh button to return to the previously set parameters, or the Close button to close the screen.
  • Page 78 ADSL Active: Enable the ADSL service Deactive: Disable the ADSL service Standard Select the ADSL standard: T1.413, G.dmt, G.lite, Auto (This option can auto detect T1.413, G.dmt, and G.lite standards.). Framing Mode Select from the following framing modes: Full overhead with sync control Reduced overhead with sync control-Mode 1 Reduced overhead with sync control-Mode 2 Reduced overhead with sync control-Mode 3...

  • Page 79: Mac Filter

    Other Configuration From this screen the items below can be configured. Click on the Set button to update parameters, the Refresh button to return to the previously set parameters, or the Close button to close the screen. PPPoE Enable or disable PPPoE filter Fixed IP IP Filtering: Enable or disable IP Filtering.

  • Page 80: Service Class

    VC Configuration From this screen the items below can be configured. Click on the Set button to update parameters, the Refresh button to return to the previously set parameters, or the Close button to close the screen. Disable/Enable: You can click either Disable or Enable to turn on or turn off the virtual channel. VPI: The Virtual Path Identifier (VPI) is part of the cell header for the cells that are transferred over this connection.
  • Page 81 Access Protocol Supports RFC1483 Bridge. 802.1Q These two parameters are added to the untagged packets that are received over the ADSL port. In 802.1Q tagged VLAN mode, an untagged packet will be inserted with the selected priority queue (1-7) when it passes through the NCT-1000/1020.

  • Page 82: Status

    Status To access the Status screen, click on the Status tab, the screen will display as below, and includes the fol- lowing information (Click the Reset button to reset the fields): Status: displays idle, training, data, failure, and linked status Attainable Rate (Kbps): displays calculated maximum attainable rate SNR Margin (dB): displays the signal-to-noise-ratio margin...

  • Page 83: Maintenance

    Maintenance To access the Maintenance screen, click on the Maintenance tab, the screen will display as below: The Reset button can be used to reset the unit. The Load Default button can be used to reload the default parameters for the unit. The Retrain button can be used to re-train the port’s ADSL line link (default train rate is 640/8032 Kbps).

  • Page 84: Performance

    Performance In the Performance Statistics screen, you can view the ADSL current status, ADSL performance, and VC data transmission statistics. To access the Performance screen, click on the Performance tab, the screen will display as below. Click on the Near button to display the near-end statistics, the Far button to display the far-end statistics, the Clean button to clear the statistics, or the Refresh button to refresh the statistics.

  • Page 85: Statistics

    The currently selected VC Tx Bytes: Transmitted bytes: The bytes in total that were successfully transmitted via the monitored port since the IP DSLAM was powered on. Rx Bytes: Received bytes: The bytes in total that were received successfully via the moni- tored port since the IP DSLAM was powered on.

  • Page 86: Graphical Statistics

    Graphical Statistics To access the Graphical Statistics screen, click on the Graphical Statistics tab, the screen will display as below, including the following information: Port flow Statistics: Shows the number of RX/TX bytes in 10 second blocks Port flow rate Statistics: Shows the rate of RX/TX bytes/per second in 10-second blocks NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 87: History Status

    History Status If the line rate has been changed, the previous train rate will be displayed on this screen. It may display N/A after the system is rebooted. Exiting the AAT24A To exit the unit interface, click on the Exit tab. NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 88: Chapter 8 Configuring The Astu

    Chapter 8 Configuring the ASTU Note: ASTU supports private VLAN inherently and tagged VLAN enabled by port base. AAT24A supports either private or tagged VLAN for all the system. Please DO NOT switch the VLAN mode while the ASTU card is connected. That will cause an unpredictable opera- tional problem.

  • Page 89: Configuring The Astu

    Configuring the ASTU Click the ASTU faceplate to access the ASTU Configuration screen as shown below. The screen includes the following information: ASTU details: ID (the chassis and the slot the ASTU resides), Hardware version, software version, and the DSP code. Ports 1 to 8: To configure a port, and display the port configuration status.

  • Page 90: Configuring The Shdsl Interface

    8.1.1 Configuring the SHDSL Interface You can configure each port on the ASTU Configuration screen. To configure a port, click the SHDSL button to display the ASTU Port Configuration screen. You can configure the following parameters from the screen. In the SHDSL Interface field, you can configure the standard and rate mode. They are explained below: Standard: Supports ANNEX A and ANNEX B...
  • Page 91 8.1.2 Configure Virtual Channel In the Virtual Channel field of the ASTU Port Configuration screen, you can configure the parameters for the ATM virtual channel. The ASTU can support up to eight virtual channels. To configure the virtual channel, click VC Config.
  • Page 92 AAL5 Encapsulation: Supports LLC. Access Protocol: Supports RFC1483 Bridge NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 93: Maintaining The Astu

    Maintaining the ASTU To maintain the ASTU, STEP 1: Click ASTU from the main menu to display the ASTU Configuration screen. On the ASTU Configuration screen, select Maintenance to enter the ASTU Maintenance screen. STEP 2: An alternative to entering this screen is to enter the Maintenance item from the main menu. Select a unit from the Monitor Maintenance item field.
  • Page 94 It includes the following parameters: Loopback : you can click Start to perform an ATM OAM F5 loopback or click Stop to stop the loopback test. FER (Frame Error Rate): displays a frame error rate. TxFrame: counts the transmitted frame. RxFrame: counts the received frame.
  • Page 95 SNR Margin (dB): Attenuation (dB): Actual Rate (Kbps): 8.2.2 Viewing SHDSL Performance To display the SHDSL performance of each port, click Performance. Then, click the required port. Details are shown below. NCT-1000/NCT-1020 User Guide YML836 Rev2 displays the noise margin displays the attenuation displays the actual rate Figure 8-5 SHDSL Performance Screen...
  • Page 96 The screen shows the near end performance statistics of the port. The error statistics are calculated in a 15- min interval. Up to 96 quarters or one day is recorded. The following parameters are accumulated. CRC: The cumulative statistics of CRC error seconds for the current 15 minutes or 1 day (Errored Seconds) The cumulative statistics of Errored Seconds for the current 15 minutes or 1 day SES:...

  • Page 97: Chapter 9 Troubleshooting/Faq

    Replacing AESG Replacing the channel units Do not unplug the AMCU while you replace the channel units. The AMCU Replacing the power supply If the IP DSLAM is powered via dual power supplies, removal or mainte- Power LED off System Down & no LED...
  • Page 98 Java (note Windows 2000, Me, 98 already have Java pre-installed): ftp://ftp.ntust.edu.tw/windows/java/msjavx86.exe Q4. Our IP DSLAM uses a dual AC/DC power supply system. I found that one of the power supplies failed, and wish to replace it. Will this affect the service? A4.
  • Page 99 Q5 “Why does the Channel Unit (xDSL card) show red color while installing the Channel Unit on NCT-1000/1020 shelf?” CID Interface 1. This screenshot shows the NCT-1000/1020 in normal mode. 2. After you unplug the CU card (AAT24A), the following screen will be displayed. NCT-1000/NCT-1020 User Guide YML836 Rev2...
  • Page 100 3. When you plug a different type of CU card (AATU24), the screen will change to an alarm mode as shown here. 4. In this mode, you have to confirm the CU card by clicking on the area of the “red” CU card as shown above by the blue arrow, (i.e.
  • Page 101 5. Click OK 6. The final status will be ok, and the card type will change to the newly inserted one. NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 102: Web Interface

    Web Interface 1. This screenshot shows the NCT-1000/1020 in normal mode. 2. After you unplug the CU card (AAT24A), the following screen will be displayed. NCT-1000/NCT-1020 User Guide YML836 Rev2...
  • Page 103 3. When you plug a different type of CU card (AATU24), the screen will change to an alarm mode as shown here. 4. In this mode, you have to confirm the CU card by clicking the “red” CU card. Click the “NEW” button to continue.
  • Page 104 5. After you Click the “NEW” button, it will start reconfirm. 6. The final status will be ok, and the card type will change to the newly inserted one. NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 105: Part Iii Appendices

    PART III APPENDICES NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 106: Appendix A Specifications

    Appendix A Specifications WAN Interface 10/100 Base-T/TX 2 fixed ports, RJ-45 connector, auto MDIX 1000 Base –T 1 ~ 2 optional ports, RJ-45 connector, auto MDIX 1000 Base-SX 1 ~ 2 optional ports, SC connector * 1000 Base-LX 1 ~ 2 optional ports, SC connector * Chassis NCT-1000 10U high chassis with 14 slots:...

  • Page 107: Appendix B Pin Assignments

    Appendix B Pin Assignments AMCU RS232 DB9 Console Port Function AMCU RJ45 LAN Port Function NCT-1000/NCT-1020 User Guide YML836 Rev2 Function Function...
  • Page 108 AAT24A/AAT24B Pin Assignments The AAT24A/AAT24B access port is a Centronic-50P male ADSL-interface connector. The port number as- signment of the connector from up to down is listed below. Pin# Name RING1 RING2 RING3 RING4 RING5 RING6 RING7 RING8 RING9 RING10 RING11 RING12 RING13...

  • Page 109: Appendix C Nct-3100 Adsl Pots Splitter Cabling

    Appendix C NCT-3100 ADSL POTS Splitter Cabling The purpose of this guide is to provide an easy way to connect the cables between the AAT24A/AAT24B and NCT-3100 POTS splitter. Before connecting the cables, make sure that you have the following accessories. NCT-3100 ADSL POTS SPLITTER The function of the NCT-3100 ADSL POTS splitter is to separate the voice signal and the ADSL signal form the traditional phone line.
  • Page 110 Centronics 50 to LINE port cable - Wire Arrangement (Cable Length: 6 meters) Wire White-Blue White-Orange White-Green White-Brown White-Gray Red-Blue Red-Orange Red-Green Red-Brown Red-Gray Black-Blue Black-Orange Black-Green Black-Brown Black-Gray Yellow-Blue Yellow-Orange Yellow-Green Yellow-Brown Yellow-Gray Purple-Blue Purple-Orange Purple-Green Purple-Brown Purple-Gray Function Wire Port1_Ring Blue-White...
  • Page 111 Centronics 50 to PHONE port cable - Wire Arrangement (Cable Length: 6 meters) Wire White-Blue White-Orange White-Green White-Brown White-Gray Red-Blue Red-Orange Red-Green Red-Brown Red-Gray Black-Blue Black-Orange Black-Green Black-Brown Black-Gray Yellow-Blue Yellow-Orange Yellow-Green Yellow-Brown Yellow-Gray Purple-Blue Purple-Orange Purple-Green Purple-Brown Purple-Gray NCT-1000/NCT-1020 User Guide YML836 Rev2 Function Port1_Ring...
  • Page 112 COBUS to ATU-C Cable The COBUS side is connected to the NCT-3100 ADSL port. The ATU-C side is connected to the NCT-1000/ NCT-1020 AAT24A/AAT24B card. NCT-1000/NCT-1020 User Guide YML836 Rev2...
  • Page 113 COBUS Side Connector – Pin Assignment (Centronics 50 male connector, labeled “A”) Function Port1_Ring Port2_Ring Port3_Ring Port4_Ring Port5_Ring Port6_Ring Port7_Ring Port8_Ring Port9_Ring Port10_Ring Port11_Ring Port12_Ring Port13_Ring Port14_Ring Port15_Ring Port16_Ring Port17_Ring Port18_Ring Port19_Ring Port20_Ring Port21_Ring Port22_Ring Port23_Ring Port24_Ring NCT-1000/NCT-1020 User Guide YML836 Rev2 Function Port1_Tip...
  • Page 114 ATU-C Side Access Port Connector 1– Pin Assignment This connector is 50-pin Centronics female connector and labeled “B”. Port8 RING Port7 RING Port6 RING Port5 RING Port4 RING Port3 RING Port2 RING Port1 RING Port8 TIP Port7 TIP Port6 TIP Port5 TIP Port4 TIP Port3 TIP...
  • Page 115 ATU-C Side Access Port Connector 2 - Pin Assignment This connector is 50-pin Centronics female connector and labeled “C”. Port16 RING Port15 RING Port14 RING Port13 RING Port12 RING Port11 RING Port10 RING Port9 RING NCT-1000/NCT-1020 User Guide YML836 Rev2 Port16 TIP Port15 TIP Port15 TIP...
  • Page 116 ATU-C Side Access Port Connector 3– Pin Assignment This connector is 50-pin Centronics female connector and labeled “D”. Port24 RING Port23 RING Port22 RING Port21 RING Port20 RING Port19 RING Port18 RING Port17 RING Port24 TIP Port23 TIP Port22 TIP Port21 TIP Port20 TIP Port19 TIP...

  • Page 117: Appendix D Nct-3010 Adsl Pots Splitter Cabling

    Appendix D NCT-3010 ADSL POTS Splitter Cabling The purpose of this guide is to explain how to connect cables between the AAT24A/AAT24B and the NCT- 3010 POTS splitter. Before connecting the cables, make sure that you have the items listed below. NCT-3010 ADSL POTS SPLITTER The function of the NCT-3010 ADSL POTS splitter is to separate the voice signal and the ADSL signal on a traditional phone line.
  • Page 118 Case A: The NCT-1000 IP DSLAM with the NCT-3010 POTS splitter cabling Case B: The NCT-1020 IP DSLAM with the NCT-3010 POTS splitter cabling NCT-1000/NCT-1020 User Guide YML836 Rev2...
  • Page 119 Centronics 50 to LINE port cable - Wire Arrangement (Cable Length: 6 meters) Wire White-Blue White-Orange White-Green White-Brown White-Gray Red-Blue Red-Orange Red-Green Red-Brown Red-Gray Black-Blue Black-Orange Black-Green Black-Brown Black-Gray Yellow-Blue Yellow-Orange Yellow-Green Yellow-Brown Yellow-Gray Purple-Blue Purple-Orange Purple-Green Purple-Brown Purple-Gray NCT-1000/NCT-1020 User Guide YML836 Rev2 Function Wire...
  • Page 120 Centronics 50 to PHONE port cable - Wire Arrangement (Cable Length: 6 meters) Wire White-Blue White-Orange White-Green White-Brown White-Gray Red-Blue Red-Orange Red-Green Red-Brown Red-Gray Black-Blue Black-Orange Black-Green Black-Brown Black-Gray Yellow-Blue Yellow-Orange Yellow-Green Yellow-Brown Yellow-Gray Purple-Blue Purple-Orange Purple-Green Purple-Brown Purple-Gray Function Pin Wire Port1_Ring Port2_Ring...
  • Page 121 COBUS to ATU-C Cable The COBUS side is connected to the NCT-3010 ADSL port. The ATU-C side is connected to the NCT-1000/ 1020 AAT24A/AAT24B. NCT-1000/NCT-1020 User Guide YML836 Rev2...
  • Page 122 COBUS Side Connector – Pin Assignment Function Port1_Ring Port2_Ring Port3_Ring Port4_Ring Port5_Ring Port6_Ring Port7_Ring Port8_Ring Port9_Ring Port10_Ring Port11_Ring Port12_Ring Port13_Ring Port14_Ring Port15_Ring Port16_Ring Port17_Ring Port18_Ring Port19_Ring Port20_Ring Port21_Ring Port22_Ring Port23_Ring Port24_Ring (Centronics 50 male connector, labeled “A”) Function Port1_Tip Port2_Tip Port3_Tip Port4_Tip Port5_Tip...
  • Page 123 ATU-C Side Access Port Connector 1– Pin Assignment This connector is 50-pin Centronics female connector and labeled “B”. NCT-1000/NCT-1020 User Guide YML836 Rev2...

  • Page 124: Appendix E Nct1000/1020 Upgrade Procedures

    Appendix E NCT1000/1020 upgrade procedures This section is divided into two parts. The first part explains procedures for upgrading the whole system; the second part explains installation of an old card to a new system. Upgrade the whole system The upgrade sequence should be in the following order: CUs, AESG, and AMCU.

  • Page 125: Appendix F Replacing The Ac/Dc Power Supply

    Appendix F Replacing the AC/DC power supply To replace the power supply, the manufacturer, or your service provider should provide the new power supply. CAUTION: The input power switch is adjustable for high or low AC voltages. To use the power supply, an appropriate voltage must be selected, to be compatible with your field application.
  • Page 126 Dual Power supply (power redundancy) A dual AC/DC power supply shelf is provided with the IP DSLAM. The maintenance engineers can maintain one of the power supplies without interruption of the system operation. 1. Disconnect the power of the power supply that fails.

  • Page 127: Appendix G Power Consumption

    Appendix G Power Consumption 1020 shelf 1000 shelf AMCU AES-G AAT24A AAT24A(train 24 port) NCT-1000/NCT-1020 User Guide YML836 Rev2 Power Meter(watts) 6.82 17.2 2.64 4.58 26.18 35.28 HP power supply(watts) 20.16 27.84 36.96...

  • Page 128: Appendix H Cli Commands

    Appendix H CLI Commands KEY DEFINE Commands SYSTEM MANAGEMENT dslam> show sys version dslam> show sys clock dslam> show sys snmp dslam> show sys alarm { current | history | state } status dslam> show sys user dslam> show sys shelf dslam>...
  • Page 129 SYSTEM CONFIGURATION dslam(config)# save dslam(config)# exit dslam(config)# reload { liu |mcu | sys | cu slot } dslam(config)# load-default dslam(config)# setuser dslam(config)# snmp dslam(config)# snmp dslam(config)# snmp all-community remove dslam(config)# trap ip dslam(config)# trap disable dslam(config)# alarm event priority dslam(config)# alarm event state dslam(config)# officealarm { enable | disable } dslam(config)# clear-alarm...
  • Page 130 dslam(config)# vlan create id{ 2~4094 } name dslam(config)# vlan del id{ 2~4094 } slot port dslam(config)# vlan { none-vlan | private-vlan | tag-vlan } dslam(config)# vlan remove id{ 2~4094 dslam(config)# newcard cu slot dslam(config)# qos-mode dslam(config)# wrr-hpweight { 1~7 } dslam(config)# wrr-lpweight { 1~7 } dslam(config)# cmd-history dslam(config)# cu slot...
  • Page 131 AAT24A Card CONFIGURATION dslam(config-aat24a-01)#interface number dslam(config-aat24a-01)#clear-perfor Clear current performance dslam(config-aat24a-01)#reset-statis Reset current statistics dslam(config-aat24a-01)#reload dslam(config-aat24a-01)#cmd-his- tory dslam(config-aat24a-01)# exit AAT24A Port CONFIGURATION dslam(config-aat24a-01/01)#adsl { enable | disable } dslam(config-aat24a-01/01)#adsl { upstream | downstream} coding { en- able | disable } dslam(config-aat24a-01/01)#adsl { upstream | downstream } interleave- depth { 2 | 4 | 8 | 16 | 32 | 64 } dslam(config-aat24a-01/01)#adsl {...
  • Page 132 dslam(config-aat24a-01/01)#clear- perfor dslam(config-aat24a-01/01)#loopback Loopback test dslam(config-aat24a-01/01)#other ip-filter { enable | disable } dslam(config-aat24a-01/01)#other ip- filter { remove | set } ip-address mask dslam(config-aat24a-01/01)#other mac-filter {enable | disable } dslam(config-aat24a-01/01)#other mac-filter mode { auto | fix } dslam(config-aat24a-01/01)#other mac-filter number { 1~5 } dslam(config-aat24a-01/01)#other mac-filter { remove | set } mac- ad- dress...
  • Page 133 dslam(config-aat24a-01/01)#exit AES-G Card CONFIGUR ATION dslam(config-aesg-)#port-trunk { dis- able | giga | up-down } dslam(config-aesg-)# uplink { 0<up> | 1<down> | 2<giga port2> | 3<giga port2> } dslam(config-aesg-)# interface { 0<up> | 1<down> | 2<giga port2> | 3<giga port2> } dslam(config-aesg-)# reload dslam(config-aesg-)#cmd-history dslam(config-aesg-)# exit...

  • Page 134: Appendix I Cable Information

    If you are unsure about which cable to use or which socket to connect it to, please refer to the hardware installation section in this manual. If you are still not sure about cable connections, please contact a profes- sional computer technician or NetComm for further advice. RJ-45 Network Ports RJ-45 Network Ports can connect any networking devices that use a standard LAN interface, such as a Hub/ Switch Hub or Router.

  • Page 135: Straight-Through Cabling

    In a straight-through cable, wires 1,2,3,4,5,6,7 and 8 at one end of the cable are still wires 1~8 at the other end. In a crossover cable, the wires of 1,2,3,6 are reversed so that wire 1 become 3 at the other end of the cable, 2 becomes 6, and so forth.

  • Page 136: Appendix J Registration And Warranty Information

    Appendix J Registration and Warranty Information All NetComm Limited (“NetComm”) products have a standard 12 month warranty from date of purchase against defects in manufacturing and that the products will operate in accordance with the specifications outlined in the User Guide. However some products have an extended warranty option (please refer to your packaging).

  • Page 137: Limitations Of Warranty

    NetComm. Failure to do so may cause damage to this product, fire or result in personal injury.
  • Page 138 NCT-1000/NCT-1020 User Guide YML836 Rev2...

This manual is also suitable for:

Nct1020

Table of Contents
