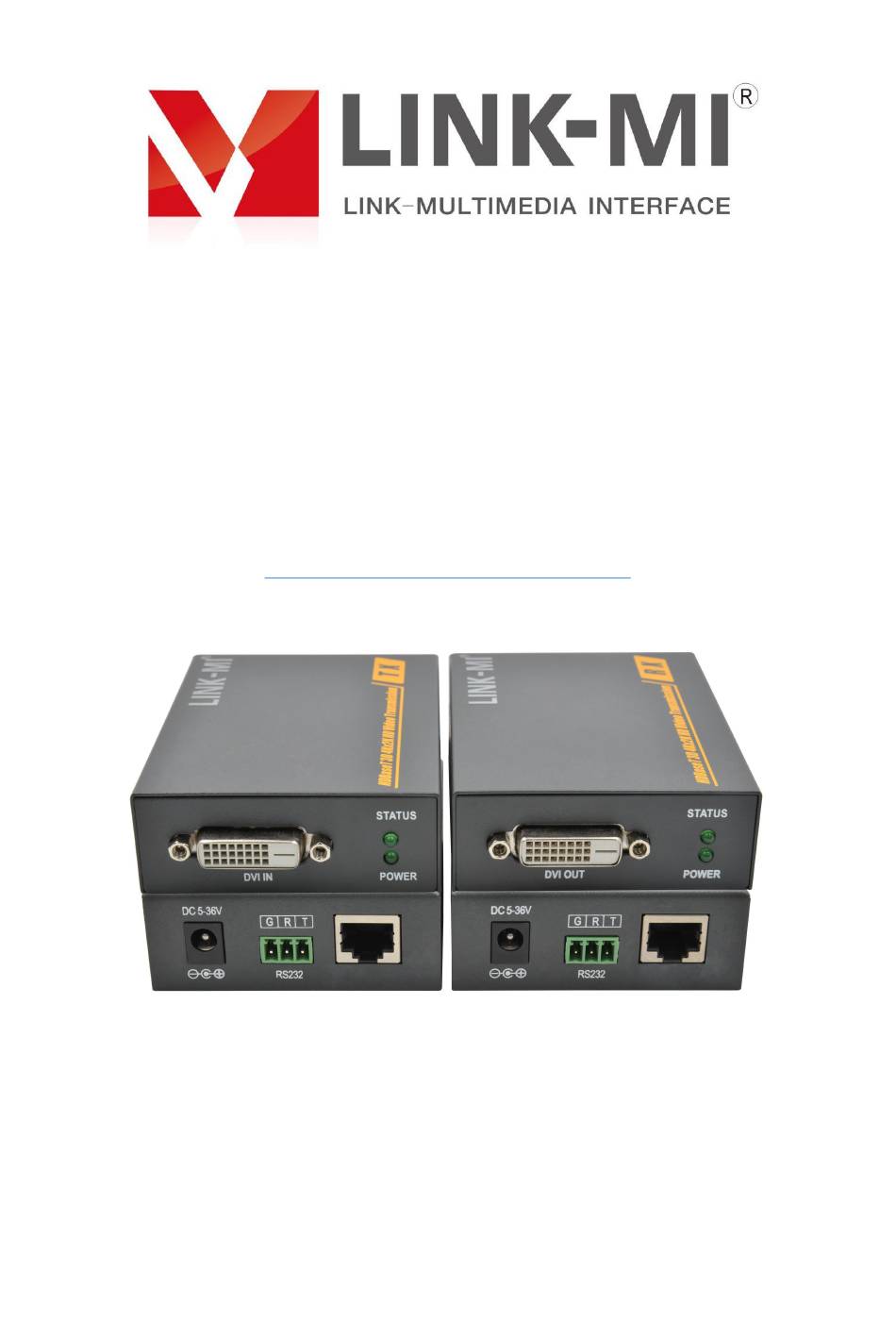

- Page 1 70M DVI HDBaseT Extender over Cat6/7 Cable with RS232, 4K Model No.: LM-HT201D User Manual...
- Page 2 1. Introduction LINK-MI LM-HT201D The DVI extender is a standard HDBaseT extender which supports real 4K x 2K HD resolution. This HDBaseT extender transmits DVI signal up to 70meters over cat6 fluently and clearly. It is lossless in signal and supports 3D, 24 bits deep color, RS232, DVI 10.
- Page 3 rate Resolution 1920x1080P@60Hz, 4Kx2K@30Hz Connector DVI-D Impedance 100Ω Interface Industrial terminal Signal direction Bidirectional RS232 Baud rate Self-adaptive, Max：115200bps Data bits PC: MINI-USB Interface Keyboard and mouse: USB-A Interface RJ45 Ethernet Transmission 1080P: CAT6---70m distance 4K*2K: CAT6---50m Power supply The power adapter: DC 9-36V Power dissipation MAX 8W Temperature...
- Page 4 6. Connection Diagram...
- Page 5 3) Use Cat6 cable connects the sender and the receiver network interfaces. 4) The sender and the receiver be connected to the power source, when the lamp lights up normally, normal operation of system. Shenzhen LINK-MI Technology Co., Ltd. www.link-mi.com E-mail: sales@link-mi.com...
