Page 1: User Manual
LM-HT207KM HDMI KVM Extender User Manual... - Page 2 1. Description The LM-HT207KM extender provides extension of HDMI signals long distances over a single CAT6 cable , it supports high resolution up to 1080p and keyboard/mouse signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
-
Page 3: Specifications

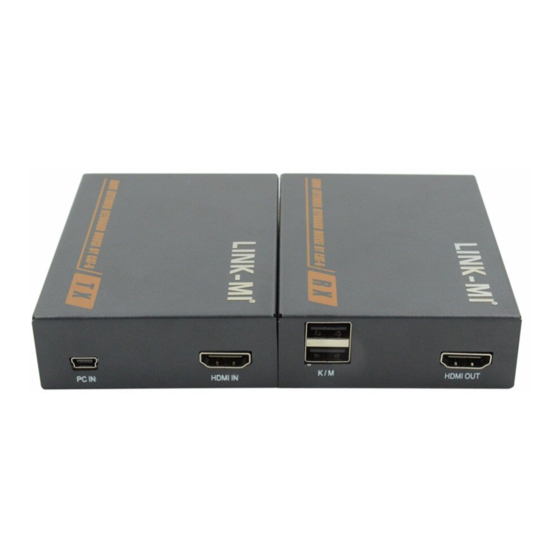

High compatibility, can auto-match source and display device; Built-in automatic adjustment system, make the image smooth, clear and stable; Built-in ESD protection system; Simple to install, plug and play; 3. Specifications Parameter Description Standards HDMI 1.3; HDCP 1.2 Maximum pixel 165MHz clock... - Page 4 4. Panel Transmitter Receiver Port name Description HDMI IN/OUT HDMI signal input/output RJ45 port connect cat5e/6. PC IN Mini USB cable connect to PC connect to keyboard and mouse DC IN Power adapter socket LED indicator Description System power indicator Video signal indicator.
- Page 5 HDMI receiver …………………………….1 pcs Mini USB cable…………………………….1 pcs Power adapter …………………………….2 pcs User manual ……………………………….1 pcs 5. Installation 1. Connect the HDMI input source (such as HD-DVD、PS3、STB etc. ) to transmitter. 2. Connect a CAT6 cable from UTP port of transmitter to UTP port of receiver 3.
