Description
1.
The DVI KVM extender provides extension of DVI signals long distances over a
single CAT6 cable, it supports high resolution up to 4K*2K, RS232 and KVM signal
transmission function. The extender can use for a wide range of applications requiring
long distance transmission of high resolution with high quality by its good stability
and powerful security.
Features
2.
Transmits DVI video signals up to 100m over a single CAT6 cable
1.
Support video resolution up to 1920*1080P@60Hz and 4K*2K
2.
Support HDBaseT technology
3.
Support KVM, keyboard and mouse signal transmission
4.
Support RS232 signal bi-directional transmission, baud rate self-adaptive
5.
Compliance with DVI 1.0 and HDCP 1.2 standard
6.
High compatibility, can auto-match source and display device
7.
Built-in automatic adjustment system, make the image smooth, clear and stable
8.
Built-in ESD protection system
9.
Simple to install, plug and play
10.

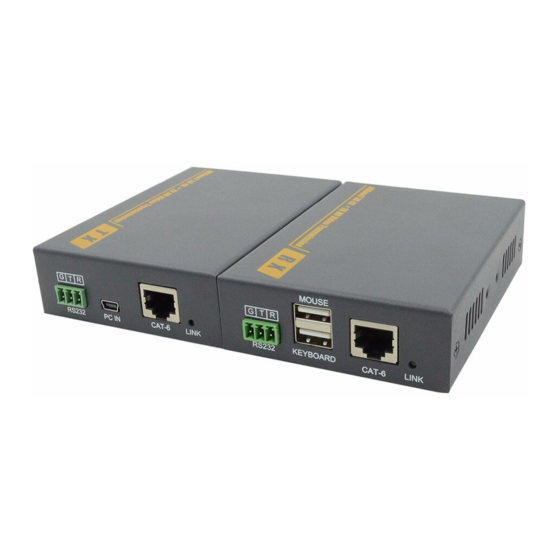

DVI KVM HDBaseT Extender
USER MANUAL
LM-HT201DKM
Advertisement
Table of Contents
Related Manuals for LINK-MI LM-HT201DKM
Summary of Contents for LINK-MI LM-HT201DKM
-
Page 1: User Manual
DVI KVM HDBaseT Extender USER MANUAL LM-HT201DKM Description The DVI KVM extender provides extension of DVI signals long distances over a single CAT6 cable, it supports high resolution up to 4K*2K, RS232 and KVM signal transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security. -
Page 2: Specifications
Specifications Parameter Description Standards DVI 1.0; HDCP 1.2 Maximum pixel clock 165MHz Maximum data rate 10.2Gbps Video 1920X1080P@60Hz, 4K*2K Resolution Connector DVI-D Impedance 100Ω Interface Industrial terminal Signal direction Bi-directional RS232 Baud rate Self-adaptive, Max: 115200bps Data bits PC: MINI-USB Interface Keyboard and mouse: USB-A Interface... - Page 3 Panel Transmitter: Receiver: Port name Description DVI IN/OUT DVI signal input/output RJ45 Ethernet interface RS232 Serial port( G: Ground, T: transmit, R: receive ) K/M TO PC Connect to PC Connect to keyboard and mouse LED indicator Description LINK Video signal connection indicator POWER System power indicator Package list...
- Page 4 1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver, 2. Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source, 3. Connect the DVI output port of receiver to the display device with DVI cable, 4.
