1870967

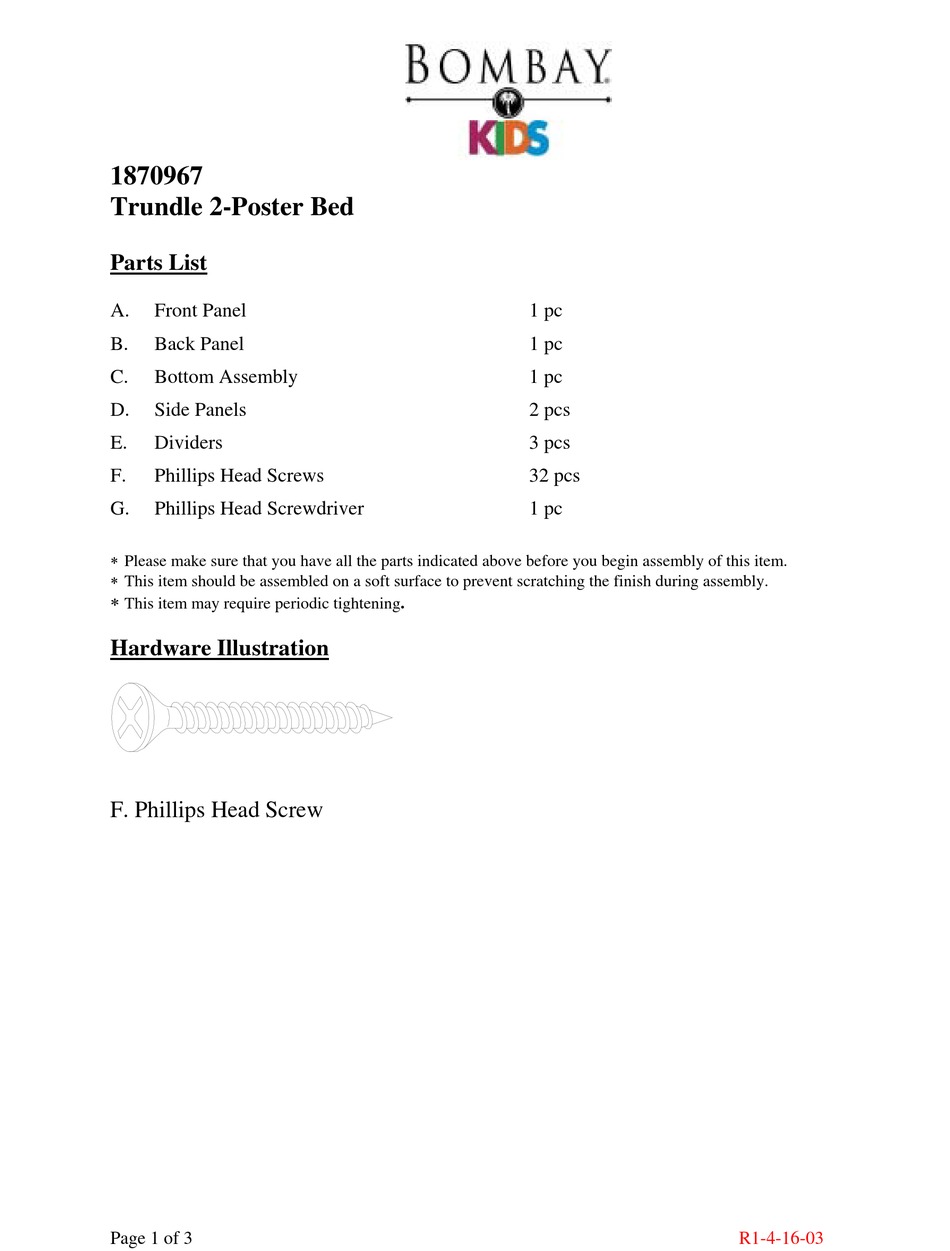

Trundle 2-Poster Bed
Parts List
A.
Front Panel
B.
Back Panel
C.
Bottom Assembly
D.
Side Panels
E.
Dividers
F.
Phillips Head Screws
G.
Phillips Head Screwdriver
∗ Please make sure that you have all the parts indicated above before you begin assembly of this item.
∗ This item should be assembled on a soft surface to prevent scratching the finish during assembly.
∗
This item may require periodic tightening.
Hardware Illustration
F. Phillips Head Screw
Page 1 of 3
1 pc
1 pc
1 pc
2 pcs
3 pcs
32 pcs
1 pc
R1-4-16-03
Advertisement
Table of Contents
Related Manuals for BOMBAY KIDS 1870967
Summary of Contents for BOMBAY KIDS 1870967
- Page 1 1870967 Trundle 2-Poster Bed Parts List Front Panel 1 pc Back Panel 1 pc Bottom Assembly 1 pc Side Panels 2 pcs Dividers 3 pcs Phillips Head Screws 32 pcs Phillips Head Screwdriver 1 pc ∗ Please make sure that you have all the parts indicated above before you begin assembly of this item. ∗...
- Page 2 1870967 Trundle 2-Poster Bed Assemble the Bottom Assembly and Panels Parts required A. Front Panel 1 pc Side Panels 2 pcs B. Back Panel 1 pc Phillips Head Screws 32 pcs C. Bottom Assembly 1 pc Phillips Head Screwdriver 1 pc 1.Attach Front and Back Panel (A&B) Lay Back Panel (B) face down on a soft surface Align the pre-drilled holes in the Bottom Assembly (C) with the pre-drilled holes in the Back Panel (B) and Front Panel (A).
- Page 3 1870967 Trundle 2-Poster Bed Install the Dividers 3.Install Dividers (D) Insert Dividers (E) into the pre-cut grooves in the Front Panel (A) and Back Panel (B) inserting dowels into pre-drilled holes of Bottom Assembly (C). See illustration #2. Illustration # 2 Page 3 of 3 R1-4-16-03...
