ATEN VanCryst VS192 VS194 - 2/4-Port 4K DisplayPort Splitter Quick Start

Hardware Review

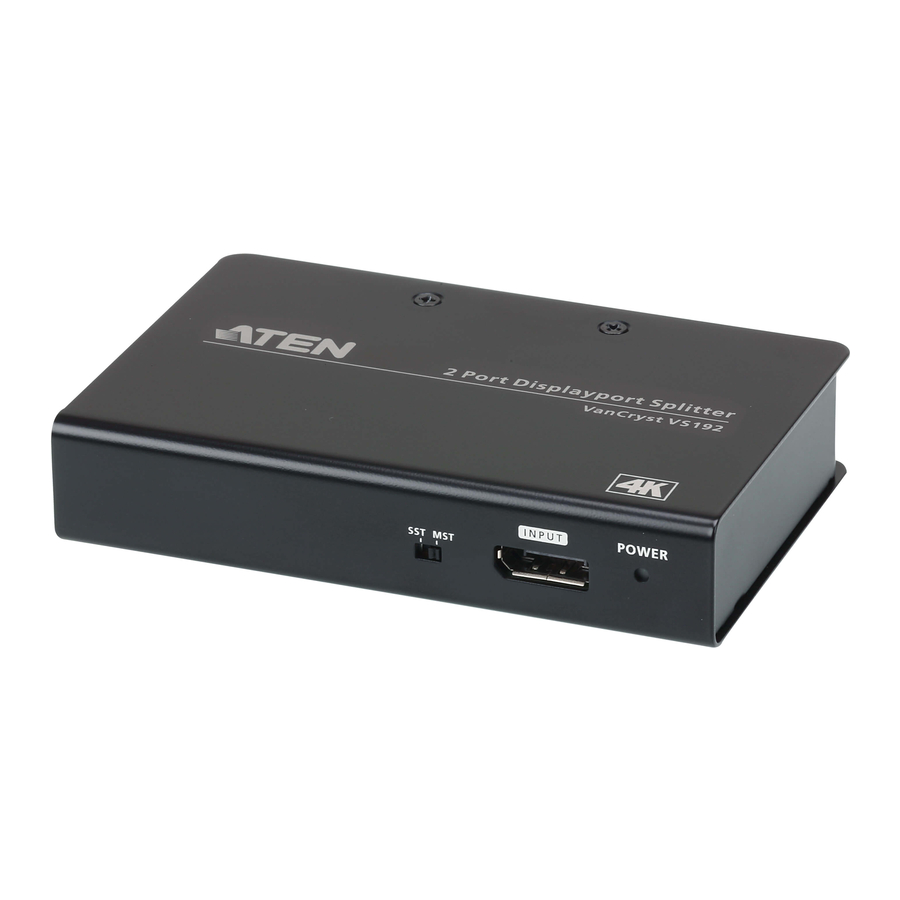

Front View

1. SST/MST Switch
2. DisplayPort Input
3. Power LED

Rear View

1. Power Jack
2. DisplayPort Outputs

Package Contents
1 VS192/VS194 2/4 Port 4K DisplayPort Splitter
1 Power Adapter
1 User Instructions

Hardware Installation

1. Use a DisplayPort cable to connect your computer or DisplayPort source device to the VS192/VS194's DisplayPort Input port.
2. Use up to four DisplayPort cables to connect up to four DisplayPort display devices to the VS192/VS194's Output ports.
3. Plug the power adapter that came with the package into an AC power source, plug the power adapter cable into the VS192/ VS194's power jack.
4. Select to use MST/SST mode.

System Requirements
It is highly recommended to use a source device with a DisplayPort 1.2 compatible graphics card. It is backwards compatible with most DisplayPort 1.1a equipment running current graphics drivers, but you may be limited to displaying in SST mode only.
Maximum supported video resolutions and number of monitors will be dependent upon your graphics card. Check the specifi cations of your graphics card to determine its capabilities.

Operation
The SST/MST switch is located on the front of the VS192/VS194 enabling the capability of switching between SST or MST mode.

MST Mode
When the VS192/VS194 is switched to MST Mode, it enables the input source to extend a video source across 2/4 displays with a maximum resolution of 4K. The output devices have to be DisplayPort compatible.
During this mode the original input source will be expanded across 2/4 output devices.

Note:
In MST Mode, the VS192/VS194 will pybass all connetced monitors' EDID.

SST Mode
When the VS192/VS194 is switched to SST Mode, it enables the input source to duplicate a single video source to 2/4 displays with a maximum resolution of 4K on each monitor.
In SST mode each display device will show the same content provided by the input source device.

Note:
In SST Mode, the VS192/VS194 will detect the resolution of the monitor connected to port 1 of the installation. If you would like to change the resolution simply adjust the settings from the DisplayPort source device confi guration menu.
* EDID is set to port 1, ensure a monitor is connected to view displayed content.

Support and Documentation Notice

All information, documentation, fi rmware, software utilities, and specifi cations contained in this package are subject to change without prior notifi cation by the manufacturer.
To reduce the environmental impact of our products, ATEN documentation and software can be found online at http://www.aten.com/download/

Technical Support
www.aten.com/support

Scan for more information

EMC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT:
This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifi cations made to this equipment may void the user s authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

FCC Caution: Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device mat not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.
