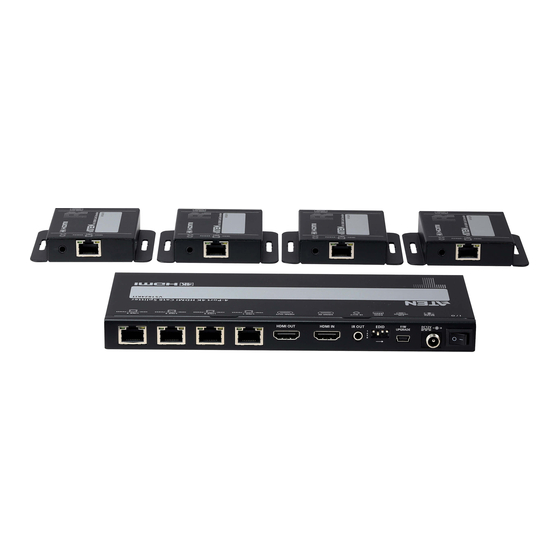

- Page 1 VS1824KIT / VS1828KIT with Receivers User Manual...
- Page 2 VS1824KIT / VS1828KIT User Manual Compliance Statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 VS1824KIT / VS1828KIT User Manual HDMI Trademark Statement The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. RoHS This product is RoHS compliant.
-
Page 4: User Information
VS1824KIT / VS1828KIT User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America... -
Page 5: Product Information
VS1824KIT / VS1828KIT User Manual Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 6: Package Contents
VS1824KIT / VS1828KIT User Manual Package Contents Check to make sure that all the components are in working order. If you encounter any problem, please contact your dealer. VS1824KIT Package Contents 1 VS1824T 4-Port 4K HDMI Cat 6 Splitter ... -
Page 7: Table Of Contents
VS1824KIT ........ - Page 8 VS1824KIT ........
-
Page 9: About This Manual
VS1824KIT / VS1828KIT User Manual About this Manual This User Manual is provided to help you get the most from your VS1824KIT / VS1828KIT system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 10: Conventions
VS1824KIT / VS1828KIT User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. -
Page 11: Introduction
Introduction Overview The VS1824KIT / VS1828KIT is a kit that includes 1 splitter and 4 / 8 receivers, distributing an HDMI source at up to 4K @ 30 Hz (4:4:4) to 4 / 8 displays up to 40m away via a single Cat 6 cable. The system also supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus &... -
Page 12: Features
VS1824T / VS1818T User Manual Features A kit that includes 1 splitter and 4 / 8 receivers to distribute 1 HDMI source to 4 / 8 displays up to 40m away via a single Cat 6 cable Supports up to 4K @ 30 Hz (4:4:4) for crystal-clear video presentation ... -
Page 13: Requirements
Cables Standard HDMI cables for the source device and local display device To ensure video quality, ATEN recommends using a Cat 6 cables for the VE1821R receivers Note: 1. No cables are included in this package. ATEN strongly recommends the use of high-quality cables of appropriate lengths to avoid any audio and video display quality issue in different environments (i.e. -
Page 14: Components
VS1824T / VS1818T User Manual Components VS1824KIT VS1824T VS1824T Front View VS1824T Rear View 5 6 7 Component Description power LED Lights green to indicate that the VS1824T is receiving power and is up and running. link ports Connects to the VE1821R receivers’ link ports via the Cat 6 cables. -
Page 15: Ve1821R
Chapter 1. Introduction Component Description power switch This is a standard rocker switch that powers the unit on and off. Note: As to the firmware upgrade of VS1824T, please contact the technical support for details. VE1821R VE1821R Front View VE1821R Rear View Component Description HDMI output... -
Page 16: Vs1828Kit
VS1824T / VS1818T User Manual VS1828KIT VS1828T Front View VS1828T Rear View 5 6 7 Component Description power LED Lights green to indicate that the VS1828T is receiving power and is up and running. link ports Connects to the VE1821R receivers’ link ports via the Cat 6 cables. -
Page 17: Ve1821R
Chapter 1. Introduction VE1821R VE1821R Front View VE1821R Rear View Component Description HDMI output Connects to an HDMI-enabled display via an HDMI cable. port IR input port Connects to the supplied IR receiver cable. link port Connects to the VS1828T’s link port via the Cat 6 cables. - Page 18 VS1824T / VS1818T User Manual This Page Intentionally Left Blank...
-
Page 19: Hardware Setup
Chapter 2 Hardware Setup 1. Important safety information regarding the placement of this device is provided on page 15. Please review it before proceeding. 2. Make sure that the power to all devices connected to the installation are turned off. 3. - Page 20 VS1814T / VS1818T User Manual Note: 1. Only connect VS1824T / VS1828T with VE1821R. Connecting VS1824T / VS1828T with other receiver models or third-party receivers may cause physical damage to the receiver. 2. Make sure all the equipment you are connecting to the unit is turned off and disconnected from the power source.
-
Page 21: Basic Operation
Chapter 3 Basic Operation Overview Extended Display Identification Data (EDID) is a data format that contains a display’s basic information and is used to communicate with the video source/system. The VS1824T / VS1828T equips an EDID switch on the unit's rear side for users to regulate the output video resolutions and audio capabilities configuration. - Page 22 VS1814T / VS1818T User Manual EDID Mode Description Position of Switch Setting Individual Pole Video Audio Dolby / DTS 5.1 0100 1080i HD audio 0101 1080i 2-channel audio 0110 3D, 1080p 0111 3D, 1080p Dolby / DTS 5.1 1000 3D, 1080p HD audio 1001 4K at 30Hz...
-
Page 23: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 24 VS1814T / VS1818T User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 25: Rack Mounting
Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 26: Technical Support
VS1814T / VS1818T User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iv: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation... -
Page 27: Specifications
340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP1.4 Compatible Max. Resolutions / Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); Distance 1080p@35m (Cat5e), 50m (Cat 6/2L-2910) *4K supported: 4096 × 2160 / 3840 × 2160 @ 30Hz (4:4:4) Audio Input 1 ×... - Page 28 VS1814T / VS1818T User Manual Function VE1821R VS1824T Power 1 × RJ-45 Female 1 × DC Jack (Black) with locking (Power over Cable, power supply from VS1824T) Maintenance Micro USB for F/W upgrade Switches Mode Switch EDID Mode Selection Power Power ON/OFF Power Consumption 11W (Refer to Note 2, page 18.)
-
Page 29: Vs1828Kit
340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP1.4 Compatible Max. Resolutions / Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); Distance 1080p@35m (Cat5e), 50m (Cat 6/2L-2910) *4K supported: 4096 × 2160 / 3840 × 2160 @ 30Hz (4:4:4) Audio Input 1 ×... - Page 30 VS1814T / VS1818T User Manual Function VE1821R VS1828T Power 1 × RJ-45 Female 1 × DC Jack (Black) with locking (Power over Cable, power supply from VS1828T) Maintenance Micro USB for F/W upgrade Switches Mode Switch EDID Mode Selection Power Power ON/OFF Power Consumption 19.2W (Refer to Note 2, page 20.)
-
Page 31: Aten Standard Warranty Policy
© Copyright 2024 ATEN® International Co., Ltd. Released: 2024-03-16 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
