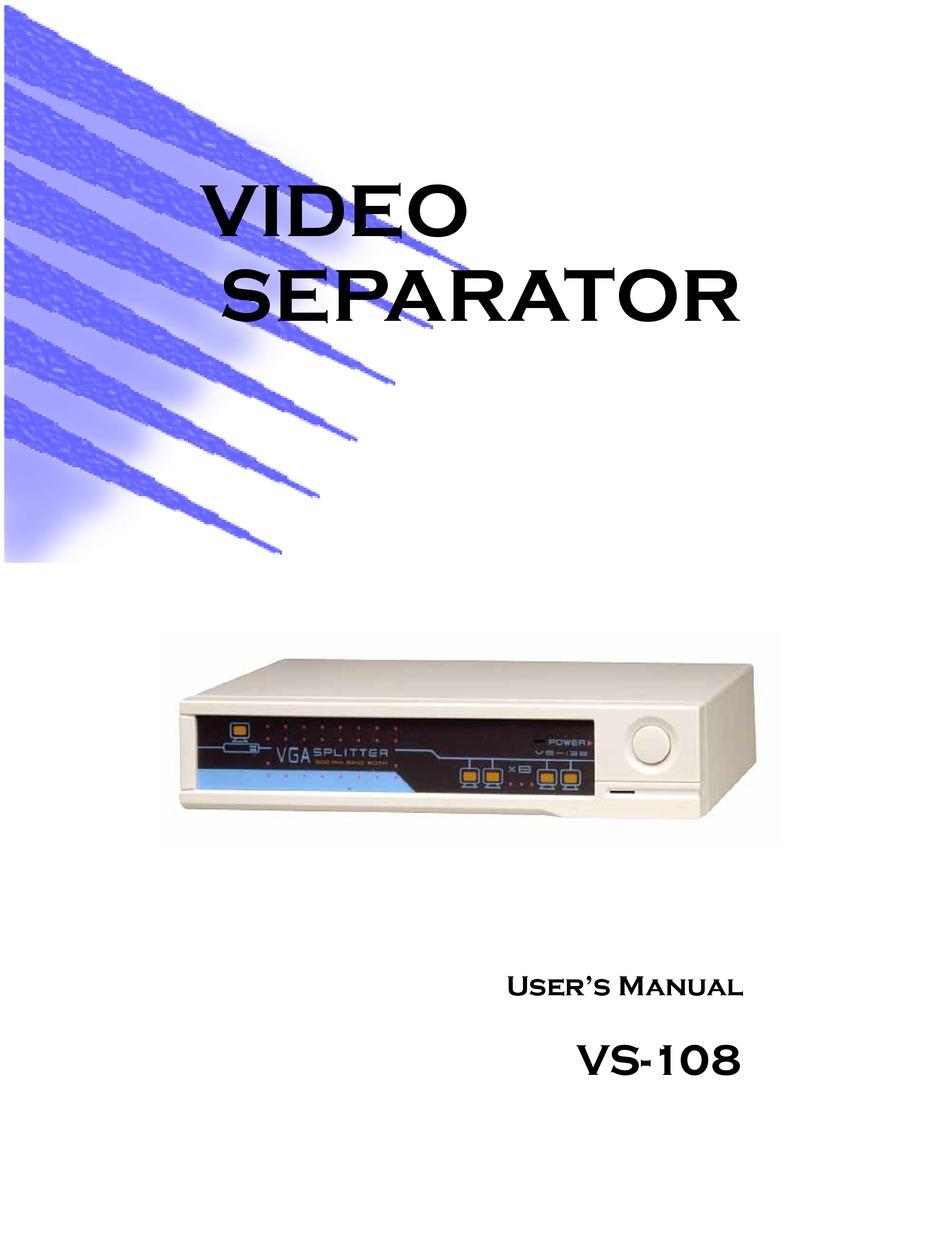

- Page 1 9,'(2 #6(3$5$725 8VHU¶V#0DQXDO 96043;...
- Page 2 Introduction Features Specifications Installation Stand-Alone Installation Daisy-Chain Installation Preventing Radio & TV Interference Limited Warranty FCC Notice Packaging Checklist: VGA Video Separator [VS-108] • Power Adapter [DC 9V 350mA(min)] • Video Separator User’s Manual [This Book] •...

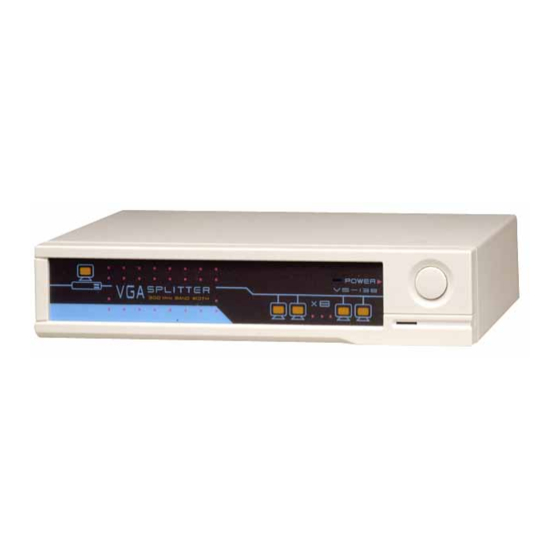

- Page 3 The Video Separator is a signal booster and splitter that is used to take video input from a single source and direct it to eight outputs for monitors using analog signals. The signal boost obtained by using the VS-108 allows you not only to split the signal but to extend the distance that you can send the signal to about 210 feet (65 meters).
- Page 4 6SHFLILFDWLRQV Function VS-108 DC 9V 350 mA Power Consumption Maximum Cable length 65 Meters (210 feet) Signal Type XGA,VGA, SVGA, Multisync Monitor Video signal Gain Control Slide Switch Connector – Input (1) High-Density DB-15 Connector – Output (4) High-Density DB-15...
- Page 5 Daisy-Chain Installation: The VS-108 is suitable for use in any stage of the Daisy-Chain installation. Connect the Video Out port from the first Video Separator unit to the Video In of the next unit in the chain. You should use a standard VGA cable that has one male and one female HDB-15 connector.
- Page 6 3UHYHQWLQJ#5DGLR#)#79#,QWHUIHUHQFH WARNING!!! This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. This equipment has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
- Page 7 )&RWLFH This device complies with Part 15 of FCC rules. Operation of this device is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. This equipment generates, uses, and can radiate radio frequency energy and if not properly installed, and used in strict accordance with the manufacturer’s instructions, may cause harmful interference to radio communication.
